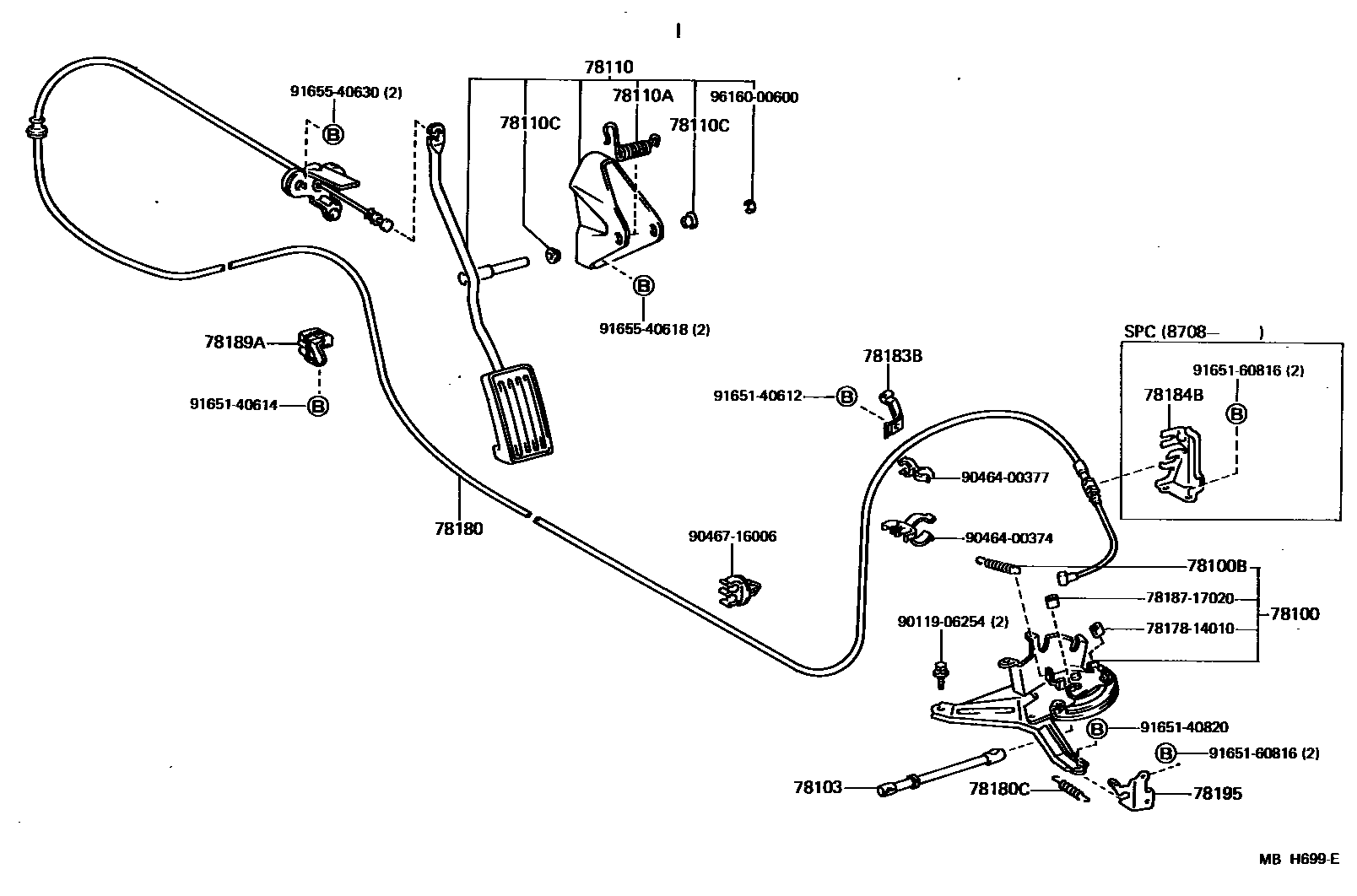

ACCELERATOR LINK
78100LINK ASSY, ACCELERATOR
W(CRUISE CONTROL)
W/*CRC
W/AUTO DRIVE
78100BSPRING (FOR ACCELERATOR LINK)
W/*CRC
78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78110ROD ASSY, ACCELERATOR PEDAL
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78110CBUSH (FOR ACCELERATOR PEDAL ROD)
78180WIRE ASSY, ACCELERATOR
W(CRUISE CONTROL)
78180CSPRING, TENSION (FOR ACCELERATOR WIRE)
78183BCLAMP, ACCELERATOR CONTROL CABLE
NO.2
NO.1
78184BBRACKET, ACCELERATOR CONTROL CABLE
78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78195BRACKET, ACCELERATOR LINK
7817814010HANGER, SPRING
main78178-14010
7818717020BRACKET, ACCELERATOR PULL BACK SPRING
main78187-17020
9011906254
main90119-06254
9046400374
main90464-00374
9046400377
main90464-00377
9046716006
main90467-16006
9165140612
main91651-40612
9165140614
main91651-40614
9165140820
main91651-40820
9165160816
main91651-60816
9165540618
main91655-40618
9165540630
main91655-40630
9616000600
main96160-00600
25 parts on this diagram · 1 diagram in section
