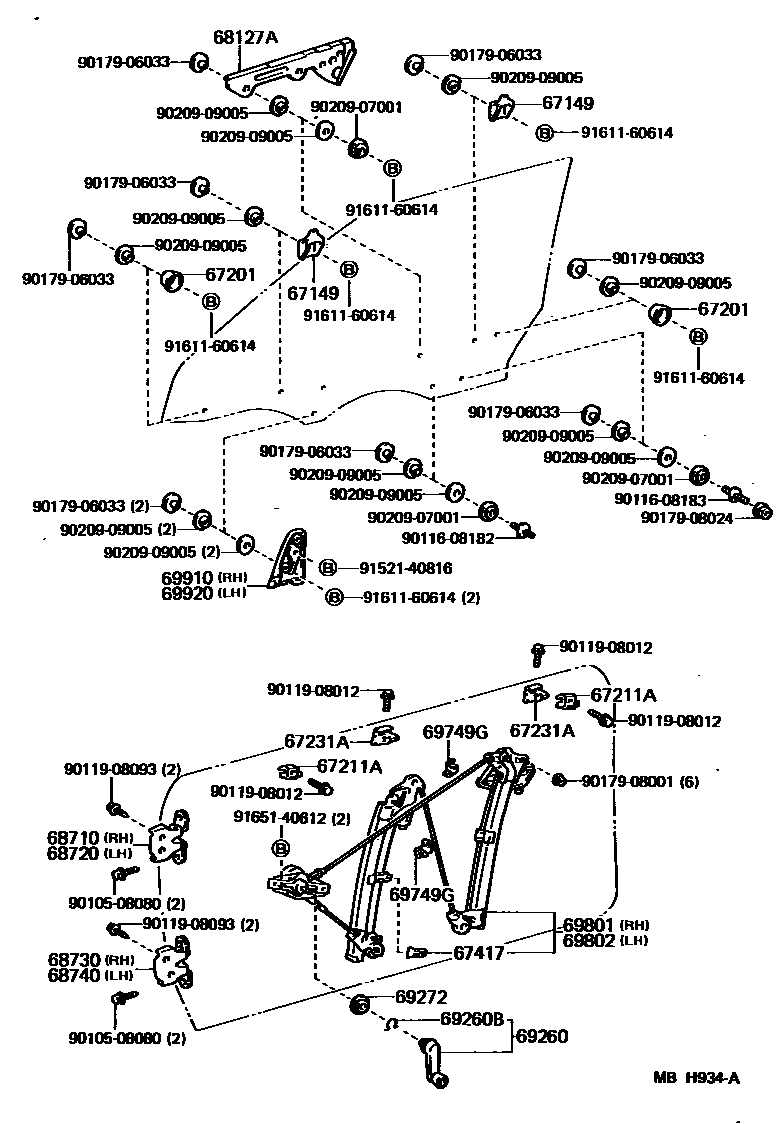

FRONT DOOR WINDOW REGULATOR & HINGE
67149STABILIZER, FRONT DOOR GLASS
67201STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
67211ASTOP, FRONT DOOR WINDOW, UPPER
67417SHOE, FRONT DOOR WINDOW REGULATOR WIRE
68127APLATE, FRONT DOOR GLASS, REAR
RH
LH
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
BLACK,TRIM2#
BLACK,BLACK,TRIM1#
SEPIA BROWN,SEPIA BROWN,TRIM4#
NEW BLACK,TRIM2#
RED,TRIM3#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
BLACK,BLACK,TRIM1#
BLACK,TRIM2#,8#
RED,TRIM3#
DARK BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
BLACK,TRIM2#,8#
69749GCLAMP(FOR FRONT DOOR WINDOW REGULATOR)
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
W/POWER WINDOW
W/POWER WINDOW
W(POWER WINDOW)
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
W/POWER WINDOW
W(POWER WINDOW)
W/POWER WINDOW
69910BRACKET ASSY, FRONT DOOR GLASS, RH
69920BRACKET ASSY, FRONT DOOR GLASS, LH
9010508080
main90105-08080
9011608182
main90116-08182
9011608183
main90116-08183
9011908012
main90119-08012
9011908093
main90119-08093
9017906033
main90179-06033
9017908001
main90179-08001
9017908024
main90179-08024
9020907001
main90209-07001
9020909005
main90209-09005
9152140816
main91521-40816
9161160614
main91611-60614
9165140612
main91651-40612
31 parts on this diagram · 1 diagram in section
