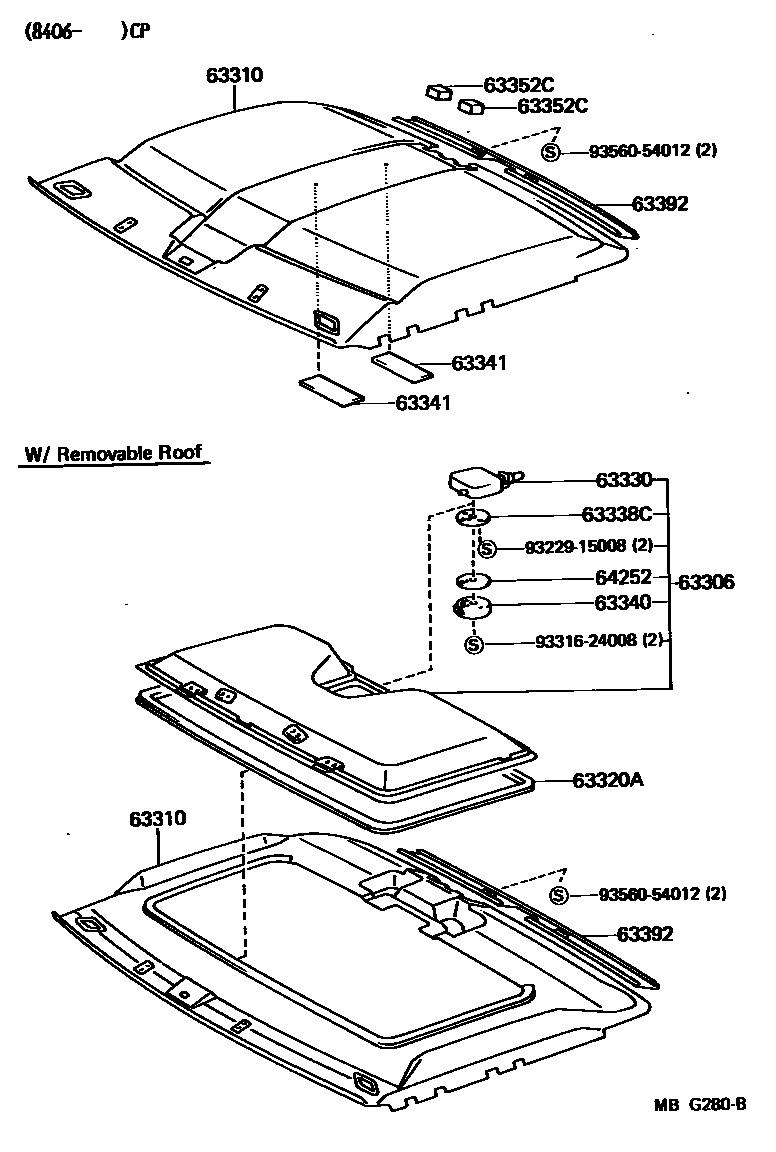

ROOF HEADLINING & SILENCER PAD
63306TRIM SUB-ASSY, SUNSHADE
LIGHT GRAY,LIGHT GRAY,TRIM2#
BEIGE,BEIGE,TRIM4#
BLACK,TRIM2#
RED,TRIM3#
LIGHT GRAY,LIGHT GRAY,TRIM2#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
63310HEADLINING ASSY, ROOF
BLACK,TRIM2#
RED,TRIM3#
DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
LIGHT GRAY,LIGHT GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BLACK,TRIM2#
RED,TRIM3#
LIGHT GRAY,LIGHT GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
W/REMOVABLE ROOF,LIGHT GRAY,LIGHT GRAY,TRIM1#
W/REMOVABLE ROOF,BEIGE,BEIGE,TRIM4#
W(REMOVABLE ROOF),BLACK,TRIM2#
W(REMOVABLE ROOF),RED,TRIM3#
W/REMOVABLE ROOF,LIGHT GRAY,LIGHT GRAY,TRIM1#
W(REMOVABLE ROOF),DARK BLUE,TRIM8#
W(REMOVABLE ROOF),DARK BEIGE,TRIM4#
63320AMOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM
BLACK,BLACK,TRIM1#
RED,TRIM3#
LIGHT GRAY,LIGHT GRAY,TRIM1#
DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BLACK,TRIM2#
DARK BEIGE,TRIM4#
63330LOCK ASSY, SUNSHADE TRIM
63338CSTOPPER, SUNSHADE LOCK, NO.2
63340HANDLE ASSY, SUNSHADE TRIM LOCK
BLACK,TRIM2#
RED,TRIM3#
LIGHT GRAY,LIGHT GRAY,TRIM1#
BLUE,DARK BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BLACK,TRIM2#
DARK BEIGE,TRIM4#
63341PAD, ROOF SILENCER, NO.1
63352CPAD, ROOF HEADLINING, END
63392TRIM, ROOF HEADLINING, REAR
BLACK,BLACK,TRIM1#
RED,TRIM3#
BLUE,DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
SEPIA BROWN,SEPIA BROWN,TRIM4#
BLACK,TRIM2#
64252SPACER, SUNSHADE TRIM
9322915008
main93229-15008
9331624008
main93316-24008
9356054012
main93560-54012
13 parts on this diagram · 2 diagrams in section
