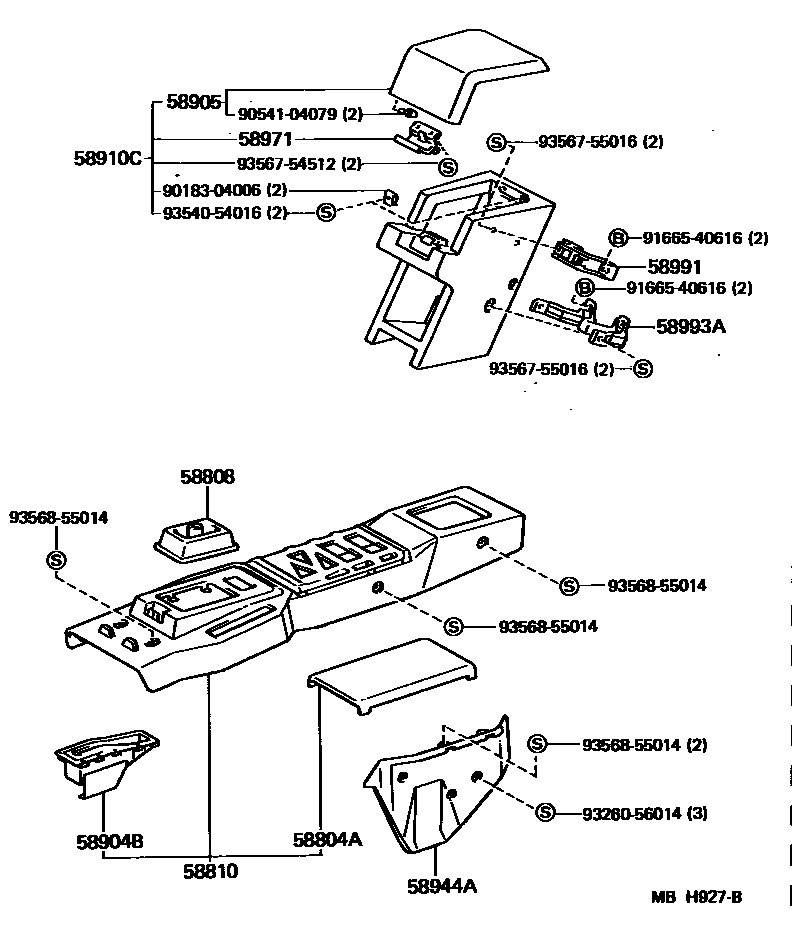

CONSOLE BOX & BRACKET
58804APANEL SUB-ASSY, CONSOLE, UPPER
58808COVER SUB-ASSY, SHIFTING HOLE
58810CONSOLE ASSY
BLACK,BLACK,TRIM1#
SEPIA BROWN,SEPIA BROWN,TRIM4#
GRADE PACKAGE OR LEATHER PACKAGE,BLACK,BLACK,TRIM2#
sub58801-17090
GRADE PACKAGE OR LEATHER PACKAGE,BLACK,BLACK,TRIM1#
sub58801-17090
GRADE PACKAGE OR LEATHER PACKAGE,RED,RED,TRIM3#
sub58801-17090
GRADE PACKAGE OR LEATHER PACKAGE,DARK BLUE,DARK BLUE,TRIM8#
sub58801-17090
GRADE PACKAGE OR LEATHER PACKAGE,BLUE,DARK BLUE,TRIM8#
sub58801-17090
GRADE PACKAGE OR LEATHER PACKAGE,BEIGE,DARK BEIGE,TRIM4#
sub58801-17090
GRADE PACKAGE OR LEATHER PACKAGE,DARK BEIGE,DARK BEIGE,TRIM4#
sub58801-17090
GRADE PACKAGE OR LEATHER PACKAGE,BLACK,BLACK,TRIM2#
sub58801-17090
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,BLACK,TRIM1#
SEPIA BROWN,SEPIA BROWN,TRIM4#
BLACK,TRIM2#
BLACK,BLACK,TRIM1#
RED,TRIM3#
BLUE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#
BLACK,TRIM2#
58910CBOX ASSY, CONSOLE, REAR
58944ACOVER, CONSOLE, REAR
BLACK,BLACK,TRIM1#
SEPIA BROWN,SEPIA BROWN,TRIM4#
58971LOCK, CONSOLE COMPARTMENT DOOR
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
58993ABRACKET, CONSOLE BOX MOUNTING, LOWER
9018304006
main90183-04006
9054104079
main90541-04079
9166540616
main91665-40616
9326056014
main93260-56014
9354054016
main93540-54016
9356754512
main93567-54512
9356755016
main93567-55016
9356855014
main93568-55014
18 parts on this diagram · 2 diagrams in section
