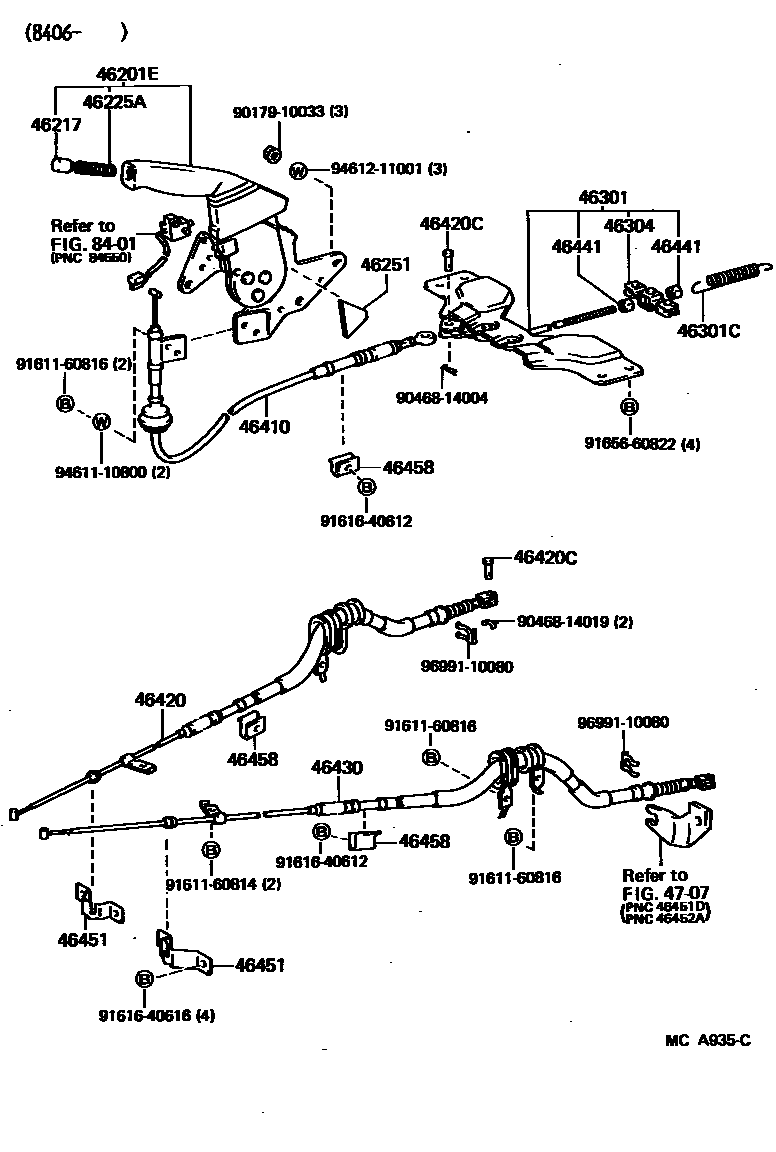

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-17010-01iAW11198608-198803

BLACK,BLACK,TRIM1#

main46201-17010-04iAW11198608-198803

BLUE,DARK BLUE,TRIM8#

main46201-17010-05iAW11198608-198803

BEIGE,DARK BEIGE,TRIM4#

main46201-17011-01iAW11198803-198808

BLACK,TRIM2#

main46201-17011-02iAW11198808-198912

RED,TRIM3#

main46201-17011-04iAW11198803-198912

DARK BLUE,TRIM8#

main46201-17011-05iAW11198803-198808

DARK BEIGE,TRIM4#

main46201-17011-11iAW11198808-198912

BLACK,TRIM2#

main46201-17020iAW11198412-198608

main46201-17030iAW11..USA198508-198510

LEATHER

main46201-17040-01iAW11198608-198803

LEATHER,BLACK,BLACK,TRIM1#

main46201-17040-04iAW11198608-198803

LEATHER,BLUE,DARK BLUE,TRIM8#

main46201-17040-05iAW11198608-198803

LEATHER,BEIGE,DARK BEIGE,TRIM4#

main46201-17041-01iAW11198803-198808

LEATHER,BLACK,TRIM2#

main46201-17041-02iAW11198808-198912

LEATHER,RED,TRIM3#

main46201-17041-04iAW11198803-198912

LEATHER,DARK BLUE,TRIM8#

main46201-17041-11iAW11198808-198912

LEATHER,BLACK,TRIM2#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-01iAW11198803-198808

BLACK,TRIM2#

main46217-12020-11iAW11198808-198912

BLACK,TRIM2#

main46217-12020-12iAW11198808-198912

MAROON,TRIM3#

main46217-12020-J0iAW11198803-198912

DARK BLUE,TRIM8#

main46217-20020-01iAW11198412-198803

BLACK,BLACK,TRIM1#

main46217-20020-15iAW11198608-198803

BEIGE,BEIGE,TRIM4#

main46217-20020-54iAW11198608-198803

BLUE,DARK BLUE,TRIM8#

main46217-22040-01iAW11198510-198803

LEATHER,BLACK,BLACK,TRIM1#

main46217-22040-14iAW11198608-198803

LEATHER,BLUE,DARK BLUE,TRIM8#

main46217-22040-15iAW11198608-198803

LEATHER,BEIGE,BEIGE,TRIM4#

main46217-32010-01iAW11198808-198912

LEATHER,BLACK,TRIM2#

main46217-32010-11iAW11198803-198808

LEATHER,BLACK,TRIM2#

main46217-32010-12iAW11198808-198912

RED,TRIM3#

main46217-32010-15iAW11198803-198808

DARK BEIGE,TRIM4#

main46217-32010-J0iAW11198803-198912

LEATHER,DARK BLUE,TRIM8#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iAW11198412-198912

46251SPACER, PARKING BRAKE LEVER

main46251-17010iAW11198412-198912

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-17012iAW11198608-198912

main46330-17012iAW11198412-198608

46301CSPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-18048iAW11198412-198912

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-17010iAW11198412-198912

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-17021iAW11198412-198912

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-17012iAW11198412-198507

main46420-17013iAW11198507-198608

main46420-17030iAW11198608-198912

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040×3iAW11198412-198912

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-17012iAW11198412-198506

main46430-17013iAW11198506-198608

main46430-17030iAW11198608-198912

46441NUT, WIRE ADJUSTING, NO.1

main46441-30030×2iAW11198412-198912

46451BRACKET, CABLE SUPPORT

main46451-17010iAW11198412-198803

RH

main46452-17010iAW11198412-198803

LH

46458RETAINER, CABLE

main46458-20020×3iAW11198412-198803

main46458-50010×3iAW11..CP; AW11..TBR198906-198912

4707REAR DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-07

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017910033

main90179-10033

9046814004

main90468-14004

9046814019

main90468-14019

9161160814

main91611-60814

9161160816

main91611-60816

9161640612

main91616-40612

9161640616

main91616-40616

9165660822

main91656-60822

9461110800

main94611-10800

9461211001

main94612-11001

9699110080

main96991-10080

27 parts on this diagram · 1 diagram in section
