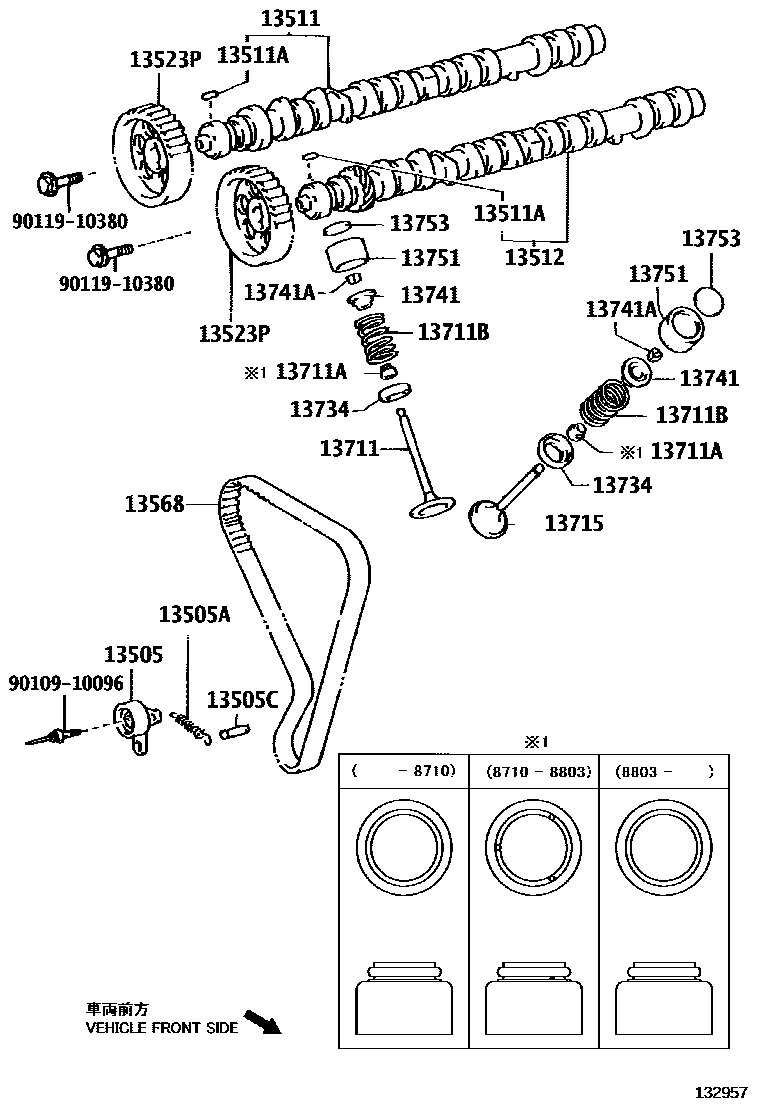

CAMSHAFT & VALVE
13505ASPRING, TENSION(FOR IDLER)
13505CPIN(FOR IDLER SPRING TENSION)
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5
13523PPULLEY, CAMSHAFT TIMING
13711VALVE, INTAKE
sub13711-16020
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
EXHAUST SIDE
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
sub13715-16020
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.50,T=2.50
T=2.55,T=2.55
T=2.55
T=3.25,T=3.25
T=3.25
T=3.30,T=3.30
T=3.30
9010910096
main90109-10096
9011910380
main90119-10380
19 parts on this diagram · 1 diagram in section
