ENGINE OVERHAUL GASKET KIT

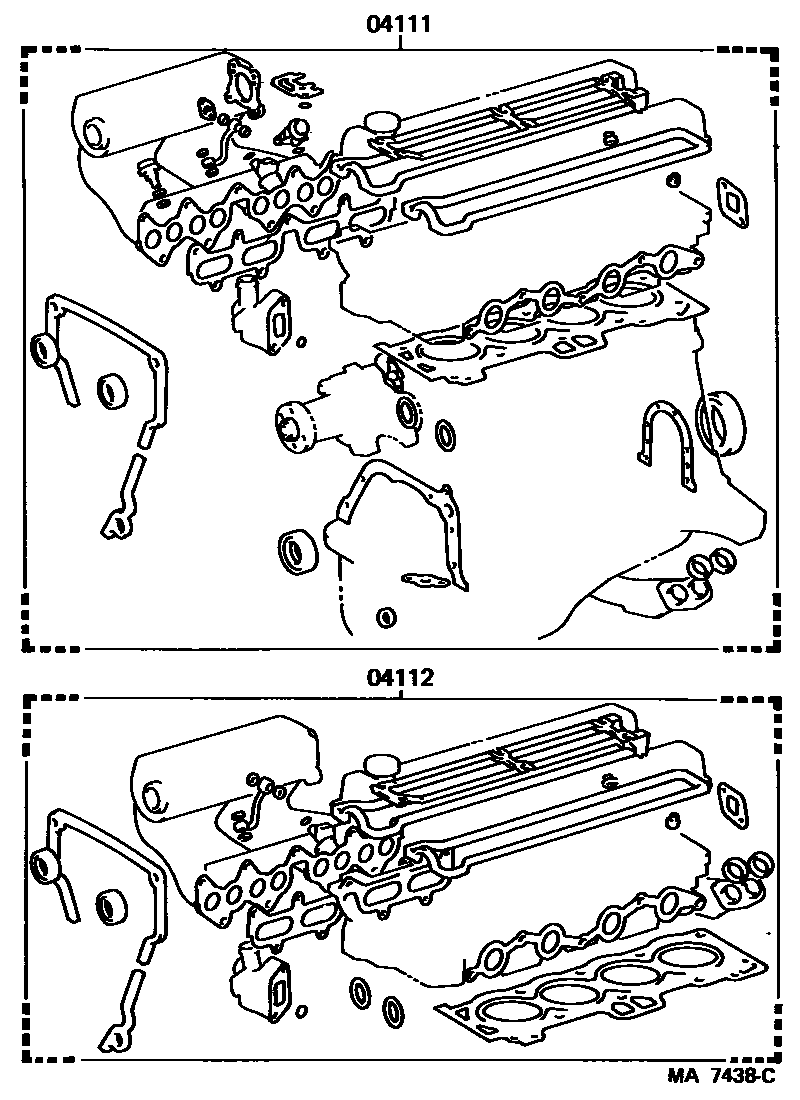

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-16071i198412-198506
sub04111-16072
main04111-16072i198506-198803
sub04111-16073
main04111-16074i198803-198905
sub04111-16075
main04111-16075i198905-198912
sub04111-16076
main04111-16076i198912-198912
main04111-16110i198708-198905
sub04111-16111
main04111-16111i198905-198912
sub04111-16112
04112GASKET KIT, ENGINE VALVE GRIND
main04112-16024i198803-198905
sub04112-16025
main04112-16025i198905-198912
main04112-16071i198412-198506
sub04112-16072
main04112-16072i198506-198803
sub04112-16023
main04112-16110i198708-198905
sub04112-16111
main04112-16111i198905-198912

2 parts on this diagram · 2 diagrams in section
