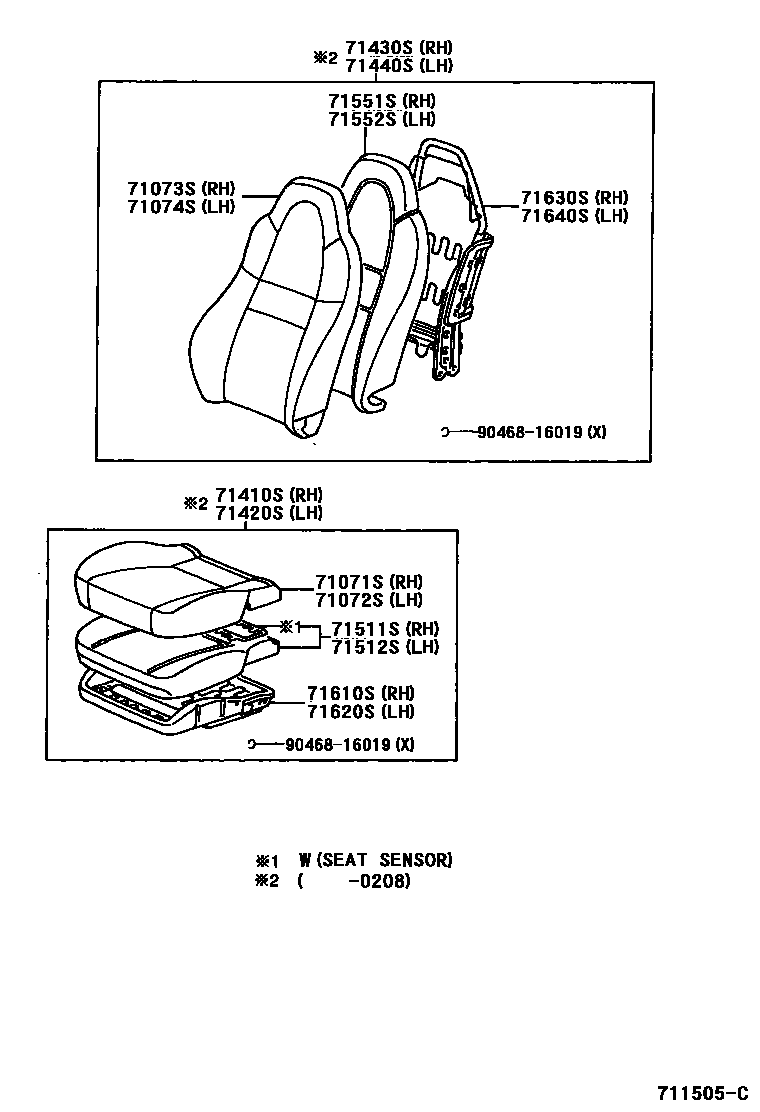

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-17240-B0iZZW30..RHD199912-200208

GRAY,TRIM2#

main71071-17240-B1iZZW30..RHD200208-200509

MD.GRAY,TRIM1#

main71071-17240-C0iZZW30..RHD200208-200509

BLACK,TRIM2#

main71071-17240-D0iZZW30..RHD199912-200208

RED,TRIM3#

main71071-17240-D1iZZW30..RHD200208-200401

W(LEATHER SEAT),RED,TRIM30

main71071-17240-F0iZZW30..RHD199912-200208

YELLOW,TRIM5#

main71071-17250-B0iZZW30..LHD199912-200208

GRAY,TRIM2#

main71071-17250-B1iZZW30..LHD200208-200509

MD.GRAY,TRIM1#

main71071-17250-C0iZZW30..LHD200208-200509

BLACK,TRIM2#

main71071-17250-D0iZZW30..LHD199912-200208

RED,TRIM3#

main71071-17250-F0iZZW30..LHD199912-200208

YELLOW,TRIM5#

main71071-17270-E0iZZW30..LHD200008-200208

LEATHER SEAT,TAN,TRIM4#

main71071-17280-E0iZZW30..RHD200008-200208

LEATHER SEAT,TAN,TRIM4#

main71071-17300-B1iZZW30..LHD200402-200509

LEATHER SEAT,BLACK GRAY,TRIM1#

main71071-17300-C0iZZW30..LHD200208-200509

LEATHER SEAT,BLACK,TRIM2#

main71071-17300-D0iZZW30..LHD200402-200509

LEATHER SEAT,BLACK RED,TRIM3#

main71071-17300-E0iZZW30..LHD200208-200509

LEATHER SEAT,TAN,TRIM4#

main71071-17310-B1iZZW30..RHD200402-200509

LEATHER SEAT,BLACK GRAY,TRIM1#

main71071-17310-C0iZZW30..RHD200208-200509

LEATHER SEAT,BLACK,TRIM2#

main71071-17310-D0iZZW30..RHD200402-200509

LEATHER SEAT,BLACK RED,TRIM3#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-17240-B0iZZW30..RHD199912-200208

GRAY,TRIM2#

main71072-17240-B1iZZW30..RHD200208-200509

MD.GRAY,TRIM1#

main71072-17240-C0iZZW30..RHD200208-200509

BLACK,TRIM2#

main71072-17240-D0iZZW30..RHD199912-200208

RED,TRIM3#

main71072-17240-D1iZZW30..RHD200208-200401

W(LEATHER SEAT),RED,TRIM30

main71072-17240-F0iZZW30..RHD199912-200208

YELLOW,TRIM5#

main71072-17250-B0iZZW30..LHD199912-200208

GRAY,TRIM2#

main71072-17250-B1iZZW30..LHD200208-200509

MD.GRAY,TRIM1#

main71072-17250-C0iZZW30..LHD200208-200509

BLACK,TRIM2#

main71072-17250-D0iZZW30..LHD199912-200208

RED,TRIM3#

main71072-17250-F0iZZW30..LHD199912-200208

YELLOW,TRIM5#

main71072-17280-E0iZZW30..LHD200008-200208

LEATHER SEAT,TAN,TRIM4#

main71072-17290-E0iZZW30..RHD200008-200208

LEATHER SEAT,TAN,TRIM4#

main71072-17310-B1iZZW30..LHD200402-200509

LEATHER SEAT,BLACK GRAY,TRIM1#

main71072-17310-C0iZZW30..LHD200208-200509

LEATHER SEAT,BLACK,TRIM2#

main71072-17310-D0iZZW30..LHD200402-200509

LEATHER SEAT,BLACK RED,TRIM3#

main71072-17310-E0iZZW30..LHD200208-200509

LEATHER SEAT,TAN,TRIM4#

main71072-17320-B1iZZW30..RHD200402-200509

LEATHER SEAT,BLACK GRAY,TRIM1#

main71072-17320-C0iZZW30..RHD200208-200509

LEATHER SEAT,BLACK,TRIM2#

main71072-17320-D0iZZW30..RHD200402-200509

LEATHER SEAT,BLACK RED,TRIM3#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-17330-B0iZZW30199912-200208

GRAY,TRIM2#

main71073-17330-D0iZZW30199912-200208

RED,TRIM3#

main71073-17330-F0iZZW30199912-200208

YELLOW,TRIM5#

main71073-17350-E0iZZW30200008-200108

LEATHER SEAT,TAN,TRIM4#

main71073-17351-E0iZZW30200108-200208

LEATHER SEAT,TAN,TRIM4#

main71073-17370-B0iZZW30200401-200509

MD.GRAY,TRIM1#

main71073-17370-B1iZZW30200208-200401

GRAY,TRIM10

main71073-17370-C0iZZW30200208-200509

BLACK,TRIM2#

main71073-17370-D0iZZW30200401-200509

RED,TRIM3#

main71073-17370-D1iZZW30200208-200401

W(LEATHER SEAT),RED,TRIM30

main71073-17390-B1iZZW30200402-200509

BLACK GRAY,TRIM1#

main71073-17390-C0iZZW30200208-200509

LEATHER SEAT,BLACK,TRIM2#

main71073-17390-D0iZZW30200402-200509

BLACK RED,TRIM3#

main71073-17390-E0iZZW30200208-200509

LEATHER SEAT,TAN,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-17330-B0iZZW30199912-200208

GRAY,TRIM2#

main71073-17330-D0iZZW30199912-200208

RED,TRIM3#

main71073-17330-F0iZZW30199912-200208

YELLOW,TRIM5#

main71073-17350-E0iZZW30200008-200108

LEATHER SEAT,TAN,TRIM4#

main71073-17351-E0iZZW30200108-200208

LEATHER SEAT,TAN,TRIM4#

main71073-17370-B0iZZW30200401-200509

MD.GRAY,TRIM1#

main71073-17370-B1iZZW30200208-200401

GRAY,TRIM10

main71073-17370-C0iZZW30200208-200509

BLACK,TRIM2#

main71073-17370-D0iZZW30200401-200509

RED,TRIM3#

main71073-17370-D1iZZW30200208-200401

W(LEATHER SEAT),RED,TRIM30

main71073-17390-B1iZZW30200402-200509

BLACK GRAY,TRIM1#

main71073-17390-C0iZZW30200208-200509

LEATHER SEAT,BLACK,TRIM2#

main71073-17390-D0iZZW30200402-200509

BLACK RED,TRIM3#

main71073-17390-E0iZZW30200208-200509

LEATHER SEAT,TAN,TRIM4#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-17290-B0iZZW30..RHD199912-200208

GRAY,TRIM2#

main71410-17290-D0iZZW30..RHD199912-200208

RED,TRIM3#

main71410-17290-F0iZZW30..RHD199912-200208

YELLOW,TRIM5#

main71410-17300-B0iZZW30..LHD199912-200208

GRAY,TRIM2#

main71410-17300-D0iZZW30..LHD199912-200208

RED,TRIM3#

main71410-17300-F0iZZW30..LHD199912-200208

YELLOW,TRIM5#

main71410-17320-E0iZZW30..LHD200008-200208

LEATHER SEAT,TAN,TRIM4#

main71410-17330-E0iZZW30..RHD200008-200208

LEATHER SEAT,TAN,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-17290-B0iZZW30..RHD199912-200208

GRAY,TRIM2#

main71420-17290-D0iZZW30..RHD199912-200208

RED,TRIM3#

main71420-17290-F0iZZW30..RHD199912-200208

YELLOW,TRIM5#

main71420-17300-B0iZZW30..LHD199912-200208

GRAY,TRIM2#

main71420-17300-D0iZZW30..LHD199912-200208

RED,TRIM3#

main71420-17300-F0iZZW30..LHD199912-200208

YELLOW,TRIM5#

main71420-17320-E0iZZW30..LHD200008-200208

LEATHER SEAT,TAN,TRIM4#

main71420-17330-E0iZZW30..RHD200008-200208

LEATHER SEAT,TAN,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-17430-B0iZZW30199912-200208

GRAY,TRIM2#

main71430-17430-D0iZZW30199912-200208

RED,TRIM3#

main71430-17430-F0iZZW30199912-200208

YELLOW,TRIM5#

main71430-17450-E0iZZW30200008-200108

LEATHER,TAN,TRIM4#

main71430-17451-E0iZZW30200108-200208

LEATHER SEAT,TAN,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71430-17430-B0iZZW30199912-200208

GRAY,TRIM2#

main71430-17430-D0iZZW30199912-200208

RED,TRIM3#

main71430-17430-F0iZZW30199912-200208

YELLOW,TRIM5#

main71430-17450-E0iZZW30200008-200108

LEATHER,TAN,TRIM4#

main71430-17451-E0iZZW30200108-200208

LEATHER SEAT,TAN,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71051-17010iZZW30..LHD199912-200208

main71511-17100iZZW30..RHD199912-200208

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71052-17010iZZW30..RHD200008-200208

LEATHER SEAT

main71512-17080iZZW30..LHD199912-200208

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-17080iZZW30199912-200208

main71551-17090iZZW30200008-200208

LEATHER SEAT

main71551-17100iZZW30200208-200509

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-17080iZZW30199912-200208

main71551-17090iZZW30200008-200208

LEATHER SEAT

main71551-17100iZZW30200208-200509

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-20560iZZW30199912-200208

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-20560iZZW30199912-200208

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-20830iZZW30199912-200208

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-20830iZZW30199912-200208

9046816019

main90468-16019

17 parts on this diagram · 3 diagrams in section
