STEERING WHEEL

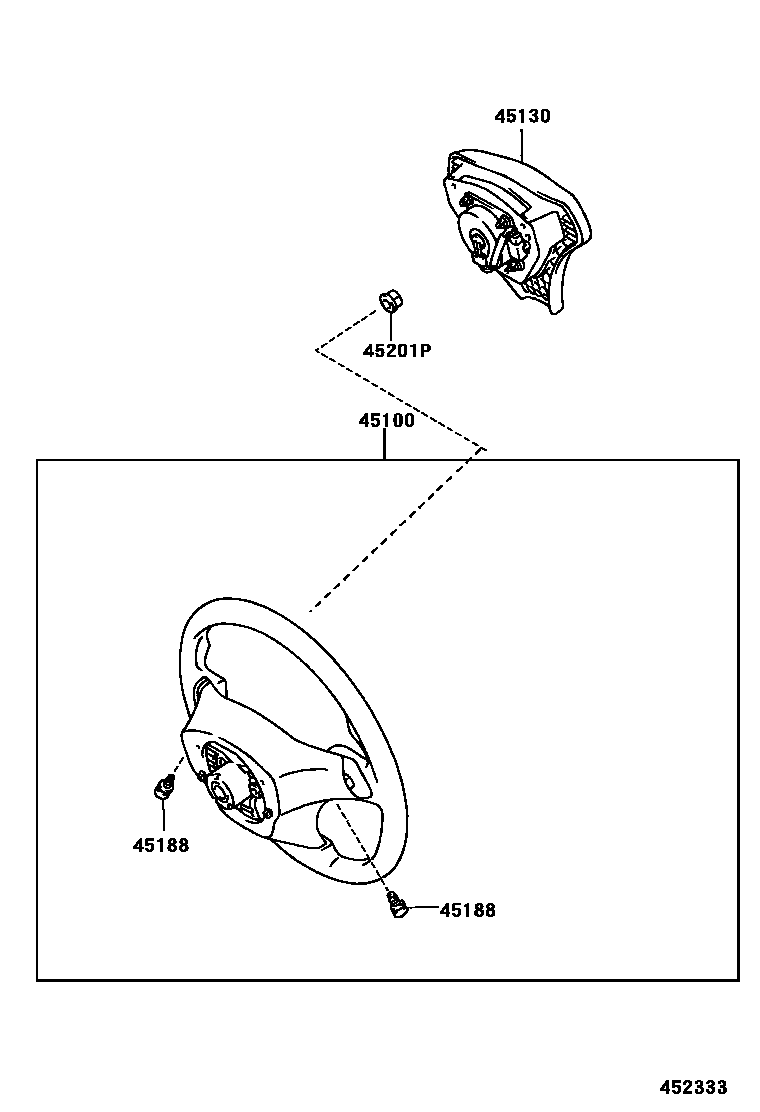

Parts diagram

45100WHEEL ASSY, STEERING

main45100-2B690-C0i199912-200008

3-SPOKE,LEATHER,BLACK,TRIM2#,3#,5#

main45100-2B690-C0i200008-200208

3-SPOKE,LEATHER,BLACK,TRIM2#,3#,4#,5#

main45100-2B690-C0i200208-200402

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,3#,4#

main45100-2B690-C1i200402-200509

3-SPOKE,LEATHER,GRAY,TRIM10,20,30,40

main45100-2B690-C2i200402-200509

3-SPOKE,LEATHER,RED,TRIM10,20,30,40

main45100-2B690-C3i200402-200509

3-SPOKE,LEATHER,BLACK,TRIM10,20,30,40

main45100-2B700-C0i200208-200509

3-SPOKE,URETHANE,BLACK,TRIM1#,2#,3#

main45100-2B700-C0i200008-200208

3-SPOKE,URETHANE,BLACK,TRIM2#,3#,4#,5#

main45100-2B700-C0i199912-200008

3-SPOKE,URETHANE,BLACK,TRIM2#,3#,5#

main45100-2B710-C0i200008-200208

3-SPOKE,LEATHER,W(STEER SHIFTMATIC),BLACK,TRIM2#,3#,4#,5#

main45100-2B710-C0i200208-200402

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,3#,4#

main45100-2B710-C1i200402-200509

3-SPOKE,LEATHER,GRAY,TRIM10

main45100-2B710-C2i200402-200509

3-SPOKE,LEATHER,RED,TRIM30

main45100-2B710-C3i200402-200509

3-SPOKE,LEATHER,BLACK,TRIM10,20,30,40

45130BUTTON ASSY, HORN

main45130-17160-C0i200402-200509

BLACK,TRIM1#,2#,3#,4#

main45130-2B430-C0i200008-200208

BLACK,TRIM2#,3#,4#,5#

main45130-2B430-C0i200208-200402

BLACK,TRIM1#,2#,3#,4#

main45130-2B430-C0i199912-200008

BLACK,TRIM2#,3#,5#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007i199912-200509

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i199912-200509

4 parts on this diagram · 2 diagrams in section
