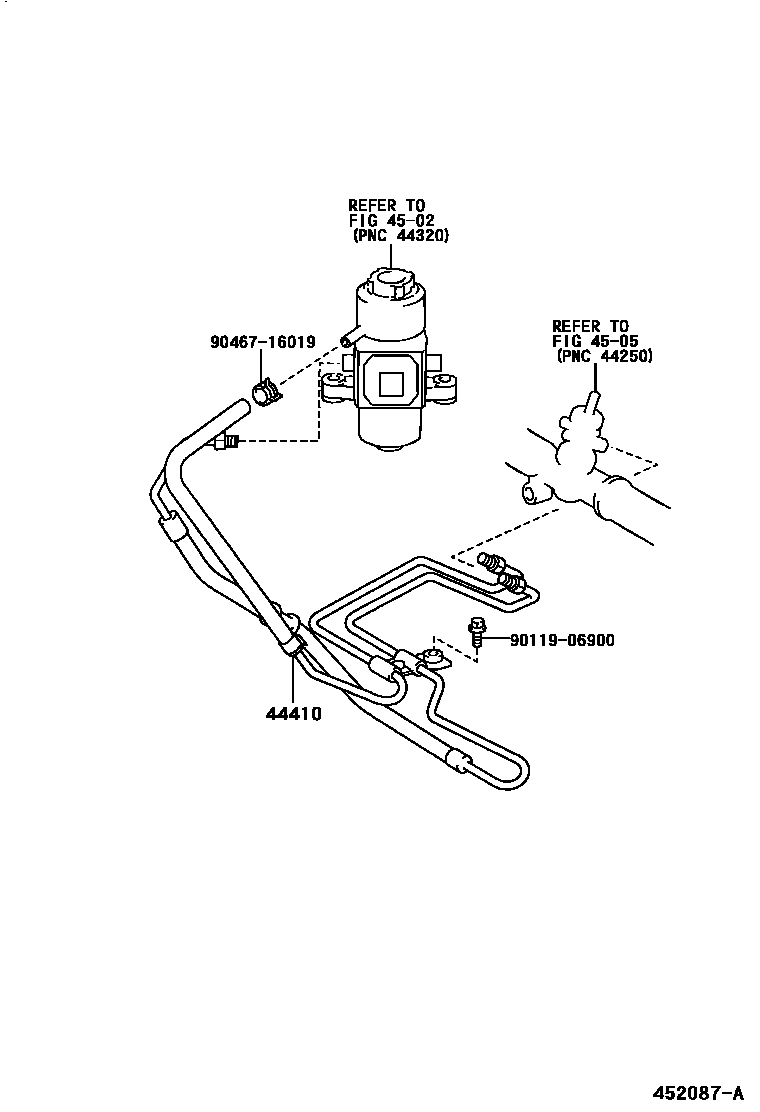

POWER STEERING TUBE

0001 1 0002 1

44410TUBE ASSY, PRESSURE FEED

main44410-17030iZZW30..RHD199912-200004

main44410-17031iZZW30..RHD200004-200208

main44410-17040iZZW30..LHD199912-200004

main44410-17041iZZW30..LHD200004-200206

main44410-17050iZZW30..RHD200208-200509

main44410-17060iZZW30..LHD200206-200208

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906900

main90119-06900

9046716019

main90467-16019

5 parts on this diagram · 2 diagrams in section
