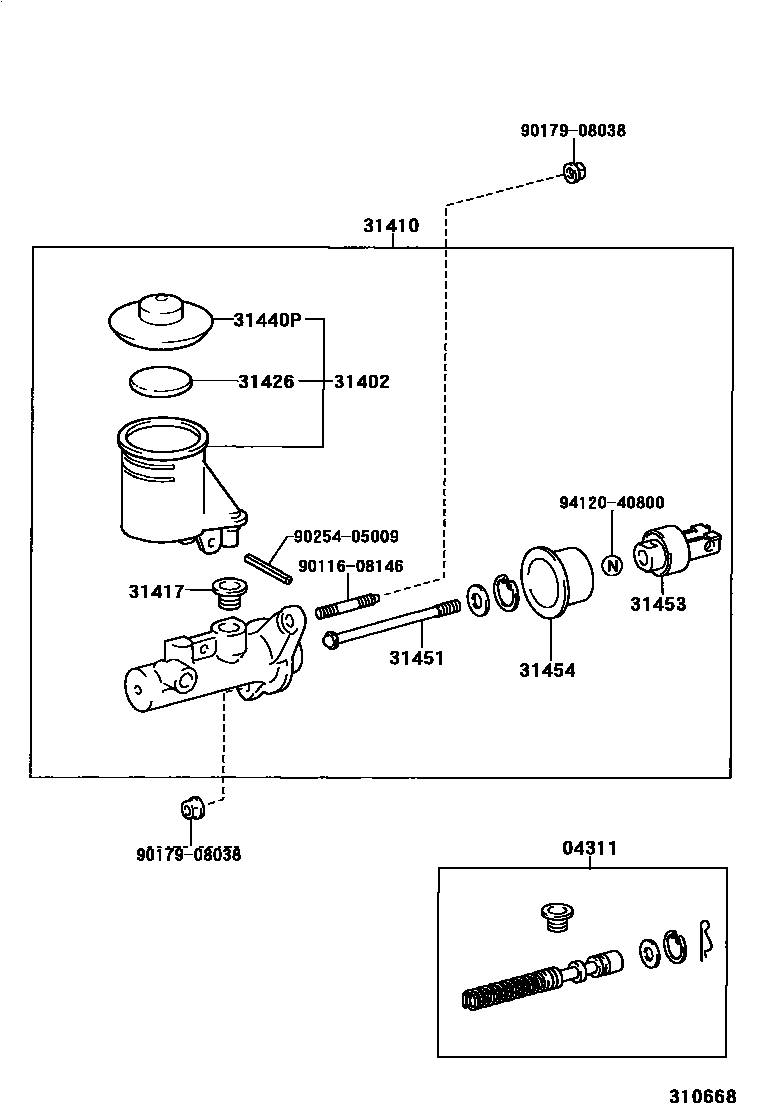

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iZZW30..5F199912-200509

main04311-26050iZZW30..RHD..6F200208-200501

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12030iZZW30..RHD..6F199912-200509

main31402-35030iZZW30..LHD..5F199912-200509

31410CYLINDER ASSY, CLUTCH MASTER

main31410-17110iZZW30..RHD..5F199912-200509

main31410-17120iZZW30..LHD..5F199912-200509

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iZZW30..6F199912-200509

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iZZW30..6F199912-200509

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iZZW30..5F199912-200509

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-17060iZZW30..RHD..6F199912-200509

main31451-24030iZZW30..LHD..5F199912-200509

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iZZW30..5F199912-200509

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iZZW30..5F199912-200509

9011608146

main90116-08146

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
