ENGINE OVERHAUL GASKET KIT

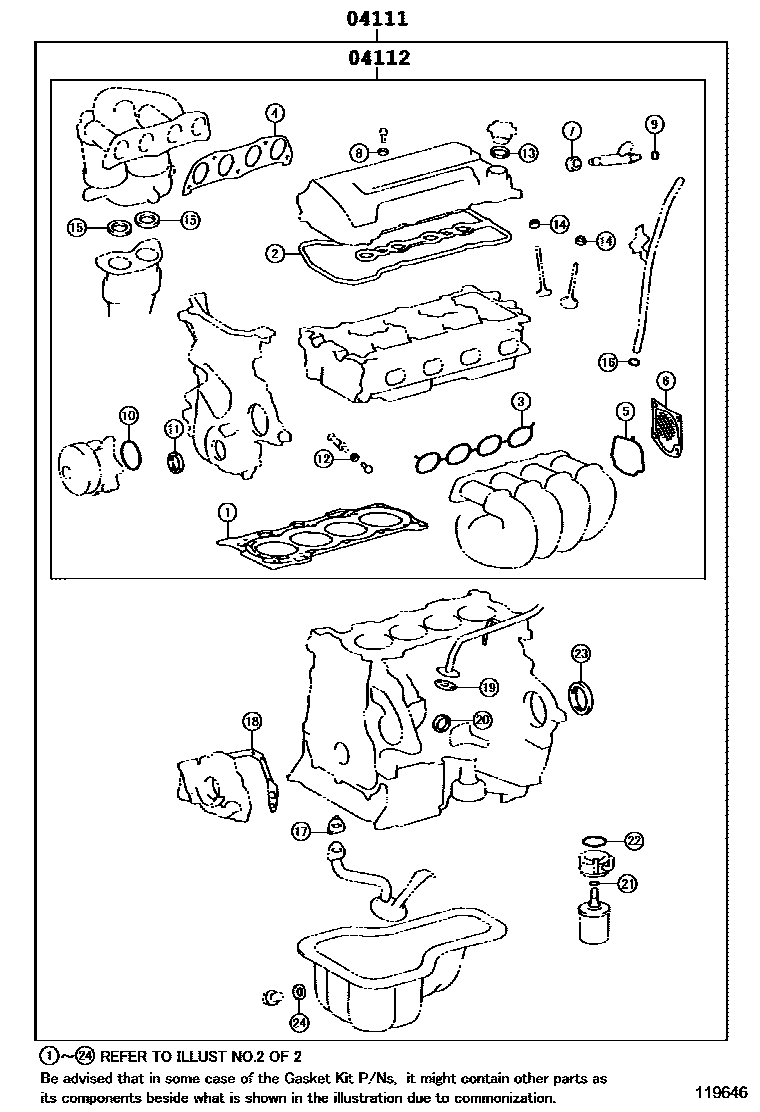

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-22090i199912-200206
sub04111-22091
main04111-22091i200206-200302
sub04111-22092
main04111-22092i200302-200509
04112GASKET KIT, ENGINE VALVE GRIND
main04112-22090i199912-200206
sub04112-22091
main04112-22091i200206-200302
sub04112-22092
main04112-22092i200302-200509

2 parts on this diagram · 2 diagrams in section
