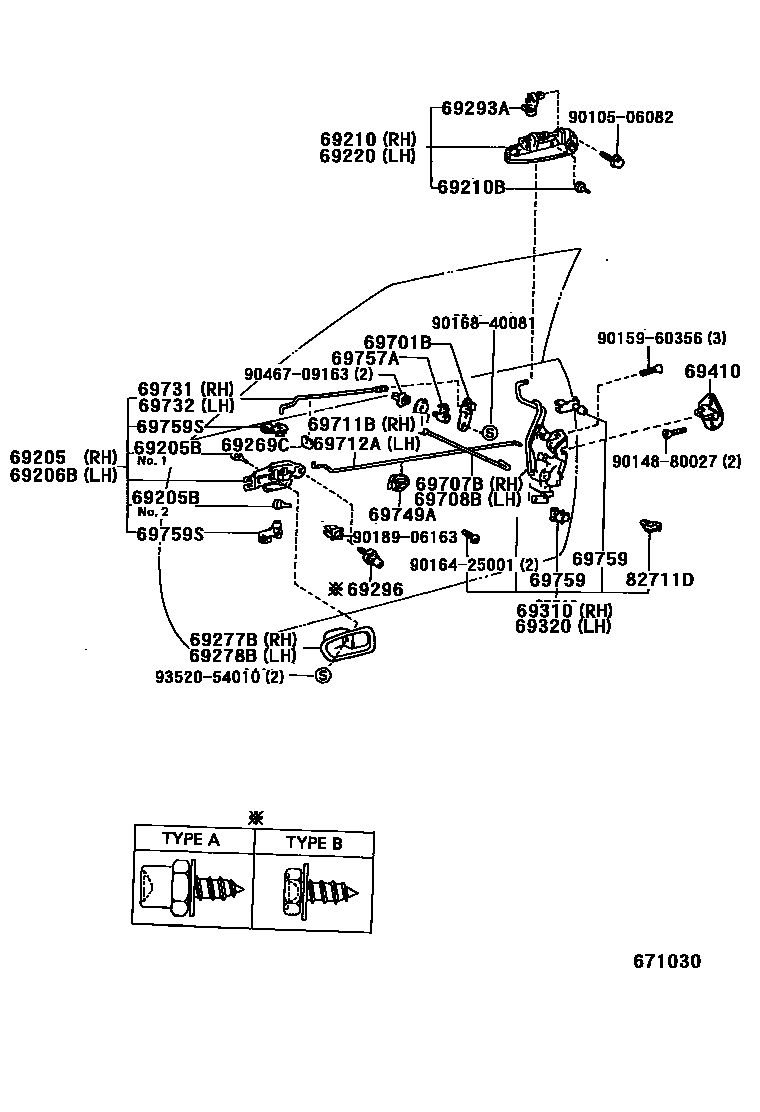

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
NO.1
NO.2
NO.1
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
W(POWER WINDOW)
W(POWER WINDOW)
W(THEFT-DETERRENT SYSTEM & POWER WINDOW)
W(THEFT-DETERRENT SYSTEM)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER WINDOW)
W(POWER WINDOW)
W(THEFT-DETERRENT SYSTEM & POWER WINDOW)
W(THEFT-DETERRENT SYSTEM)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69701BBELLCRANK SUB-ASSY, FRONT DOOR LOCK CONTROL, UPPER
69707BBELLCRANK SUB-ASSY, DOOR LOCK CONTROL, LOWER
69708BBELLCRANK SUB-ASSY, DOOR LOCK CONTROL
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69757ACLAMP, DOOR LOCK CONTROL BELLCRANK
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
YELLOW
BROWN
NATURAL
82711DCLAMP, WIRING HARNESS
sub82711-16820
9010506082
main90105-06082
9014880027
main90148-80027
9015960356
main90159-60356
9016425001
main90164-25001
9016840081
main90168-40081
9018906163
main90189-06163
9046709163
main90467-09163
9352054010
main93520-54010
34 parts on this diagram · 1 diagram in section
