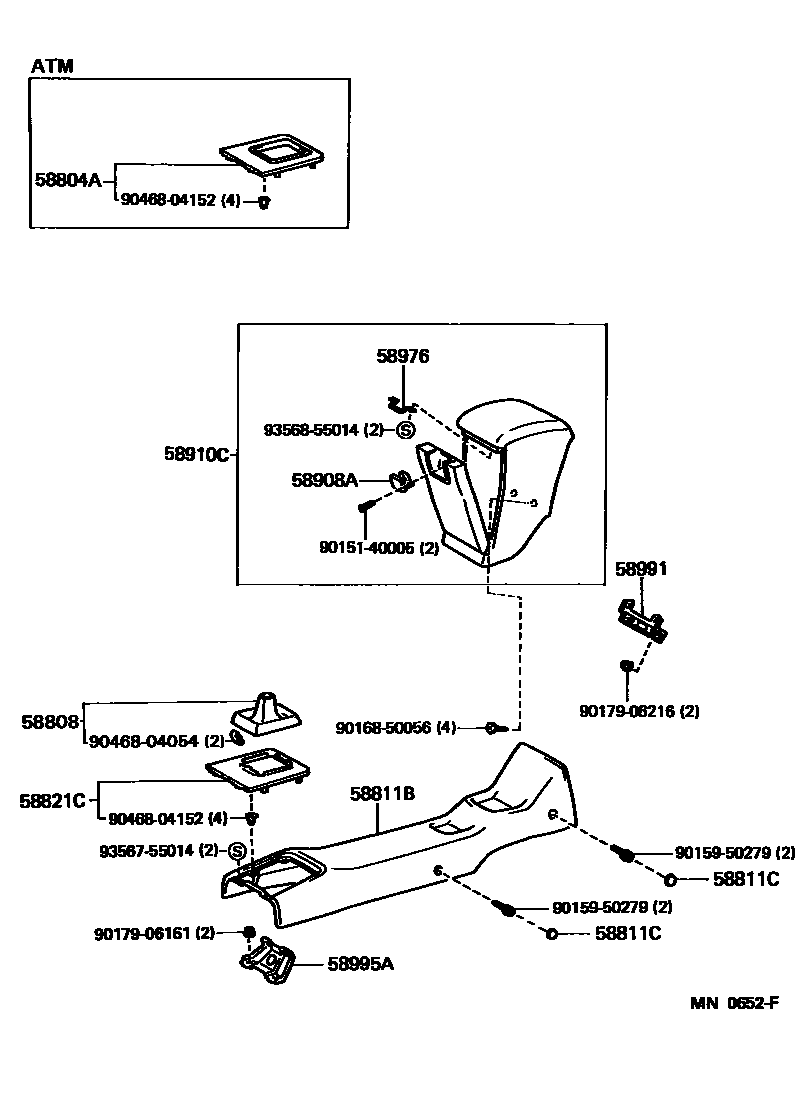

CONSOLE BOX & BRACKET
58804APANEL SUB-ASSY, CONSOLE, UPPER
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#,8#
BLACK,TRIM2#,8#
BLACK,TRIM2#
58811BBOX, CONSOLE
58811CCAP(FOR CONSOLE)
58821CPANEL, CONSOLE, UPPER
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
9015140005
main90151-40005
9015950279
main90159-50279
9016850056
main90168-50056
9017906161
main90179-06161
9017906216
main90179-06216
9046804054
main90468-04054
9046804152
main90468-04152
9356755014
main93567-55014
9356855014
main93568-55014
19 parts on this diagram · 1 diagram in section
