STEERING WHEEL

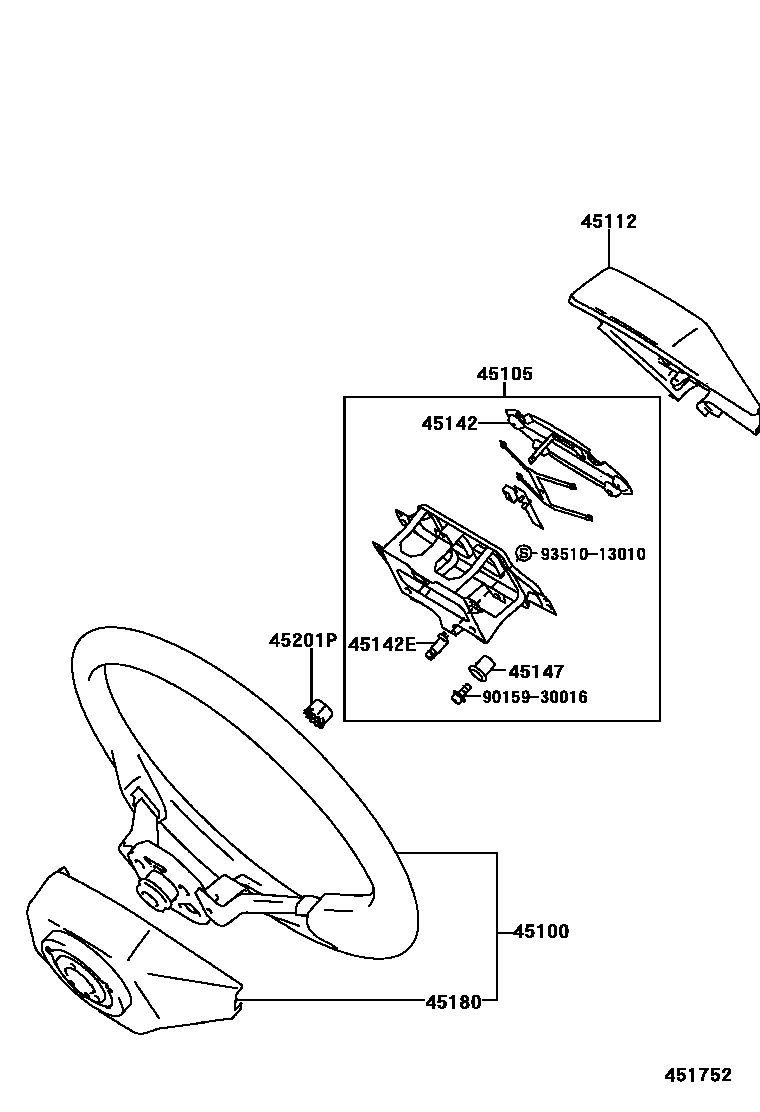

Parts diagram
45100WHEEL ASSY, STEERING
main45100-17130-01i198912-199112
3-SPOKE,LEATHER,BLACK,TRIM2#
sub45100-17130
main45100-17130-04i198912-199112
3-SPOKE,LEATHER,DARK BLUE,TRIM8#
sub45100-17130
main45100-17140-01i198912-199112
3-SPOKE,LEATHER,LEATHER,BLACK,TRIM2#
sub45100-17140
main45100-17140-04i198912-199112
3-SPOKE,LEATHER,LEATHER,DARK BLUE,TRIM8#
sub45100-17140
main45100-17160-01i198912-199112
3-SPOKE,LEATHER,BLACK,TRIM2#
sub45100-17140
sub45100-17160
main45100-17160-01i198912-199112
3-SPOKE,LEATHER,EUROPE LEATHER PACKAGE,BLACK,TRIM2#
sub45100-17140
sub45100-17160
main45100-17160-04i198912-199112
3-SPOKE,LEATHER,DARK BLUE,TRIM8#
sub45100-17140
sub45100-17160
main45100-17160-04i198912-199112
3-SPOKE,LEATHER,EUROPE LEATHER PACKAGE,DARK BLUE,TRIM8#
sub45100-17140
sub45100-17160
main45100-17190-C0i199112-199606
3-SPOKE,BLACK,TRIM2#
main45100-17190-J0i199112-199311
3-SPOKE,DARK BLUE,TRIM8#
main45100-17200-C0i199112-199606
3-SPOKE,LEATHER,AUSTRALIA OR EUROPE SPEC,BLACK,TRIM2#
sub45100-17200
main45100-17200-J0i199112-199311
3-SPOKE,LEATHER,DARK BLUE,TRIM8#
sub45100-17200
main45100-17210-C0i199112-199606
3-SPOKE,W(POWER STEERING),BLACK,TRIM2#
sub45100-17210
main45100-17210-J0i199112-199311
3-SPOKE,W(POWER STEERING & *80),DARK BLUE,TRIM8#
sub45100-17210
main45100-17210-J0i199112-199311
3-SPOKE,W(POWER STEERING),DARK BLUE,TRIM8#
sub45100-17210
main45100-17230-C0i199311-199606
3-SPOKE,LEATHER,BLACK,TRIM2#
sub45100-17230
main45100-17230-C0i199112-199311
3-SPOKE,LEATHER,W(POWER STEERING),BLACK,TRIM2#
sub45100-17230
main45100-17230-J0i199112-199311
3-SPOKE,LEATHER,W(POWER STEERING),DARK BLUE,TRIM8#
sub45100-17230
main45100-17280-C0i199311-199402
4-SPOKE,LEATHER,AUSTRALIA OR EUROPE SPEC,W(*80),BLACK,TRIM2#
sub45100-2B370
main45100-17300-C0i199311-199512
4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#
main45100-17310-C0i199402-199512
4-SPOKE,LEATHER,W(POWER STEERING & *80),BLACK,TRIM2#
main45100-17330-C0i199606-199607
4-SPOKE,LEATHER,BLACK,TRIM2#
main45100-17330-C0i199512-199607
4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#
main45100-17350-C0i199512-199607
4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#
main45100-17360-C0i199512-199607
4-SPOKE,LEATHER,W(POWER STEERING & *80),BLACK,TRIM2#
main45100-17370-C0i199607-199712
4-SPOKE,BLACK,TRIM2#
sub45100-17370
main45100-17370-C1i199712
4-SPOKE,BLACK,TRIM2#
sub45100-17370
main45100-17390-C0i199607-199712
4-SPOKE,W(*80),BLACK,TRIM2#
sub45100-17390
main45100-17390-C1i199712
4-SPOKE,W(*80),BLACK,TRIM2#
sub45100-17390
main45100-17400-C0i199607-199712
4-SPOKE,W(POWER STEERING),BLACK,TRIM2#
sub45100-17400
main45100-17400-C1i199712
4-SPOKE,W(POWER STEERING),BLACK,TRIM2#
sub45100-17400
main45100-20780-04i199112-199309
4-SPOKE,LEATHER,W(*80),DARK BLUE,TRIM8#
sub45100-20781
sub45100-20780
main45100-20780-C0i199112-199309
4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#
sub45100-20781
sub45100-20780
main45100-20781-C0i199309-199311
4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#
sub45100-20781
main45100-20781-R8i199309-199311
4-SPOKE,LEATHER,W(*80),DARK BLUE,TRIM8#
sub45100-20781
main45100-2B160-C0i199112-199309
4-SPOKE,W(*80),BLACK,TRIM2#
sub45100-2B161
main45100-2B160-J0i199112-199309
4-SPOKE,W(*80),DARK BLUE,TRIM8#
sub45100-2B161
main45100-2B161-C0i199309-199311
4-SPOKE,W(*80),BLACK,TRIM2#
sub45100-2B161
main45100-2B161-J0i199309-199311
4-SPOKE,W(*80),DARK BLUE,TRIM8#
sub45100-2B161
main45100-2B360-C0i199311-199512
4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#
sub45100-2B360
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-17050i198912-199112
main45105-17080i199112-199606
main45105-17090i199112-199606
W(POWER STEERING)
main45105-17100i199112-199211
W(POWER STEERING)
45112PAD, STEERING WHEEL
main45112-17060-C0i199112-199606
BLACK,TRIM2#
sub45112-17060
main45112-17060-J0i199112-199311
DARK BLUE,TRIM8#
sub45112-17060
main45112-17070-01i198912-199112
BLACK,TRIM2#
sub45112-17070
main45112-17070-04i198912-199112
DARK BLUE,TRIM8#
sub45112-17070
main45112-17080-01i198912-199112
BLACK,TRIM2#
sub45112-17080
main45112-17080-04i198912-199112
DARK BLUE,TRIM8#
sub45112-17080
main45112-17090-C0i199112-199508
BLACK,TRIM2#
sub45112-17090
main45112-17090-J0i199112-199311
DARK BLUE,TRIM8#
sub45112-17090
45142SEAT, HORN BUTTON CONTACT, NO.1
main45142-17020i198912-199112
45142EPIECE, HORN CONTACT
main45142-20060i198912-199112
45147SPACER, HORN BUTTON
main90561-02001i198912-199112
45180COVER SUB-ASSY, STEERING WHEEL
main45180-17030-01i198912-199112
BLACK,TRIM2#
sub45180-17030
main45180-17030-04i198912-199112
DARK BLUE,TRIM8#
sub45180-17030
main45180-17040-C0i199112-199606
BLACK,TRIM2#
sub45180-17040
main45180-17040-J0i199112-199311
DARK BLUE,TRIM8#
sub45180-17040
main45184-17070-C0i199311-199501
EUROPE LEATHER PACKAGE & W(POWER STEERING),BLACK,TRIM2#
sub45184-17070
main45184-17070-C0i199112-199606
W(POWER STEERING),BLACK,TRIM2#
sub45184-17070
main45184-17070-J0i199112-199311
W(POWER STEERING),DARK BLUE,TRIM8#
sub45184-17070
45201PNUT, STEERING WHEEL SET
main90179-12071i199306
main90179-12086i198912-199306
9015930016
main90159-30016
9351013010
main93510-13010

10 parts on this diagram · 3 diagrams in section
