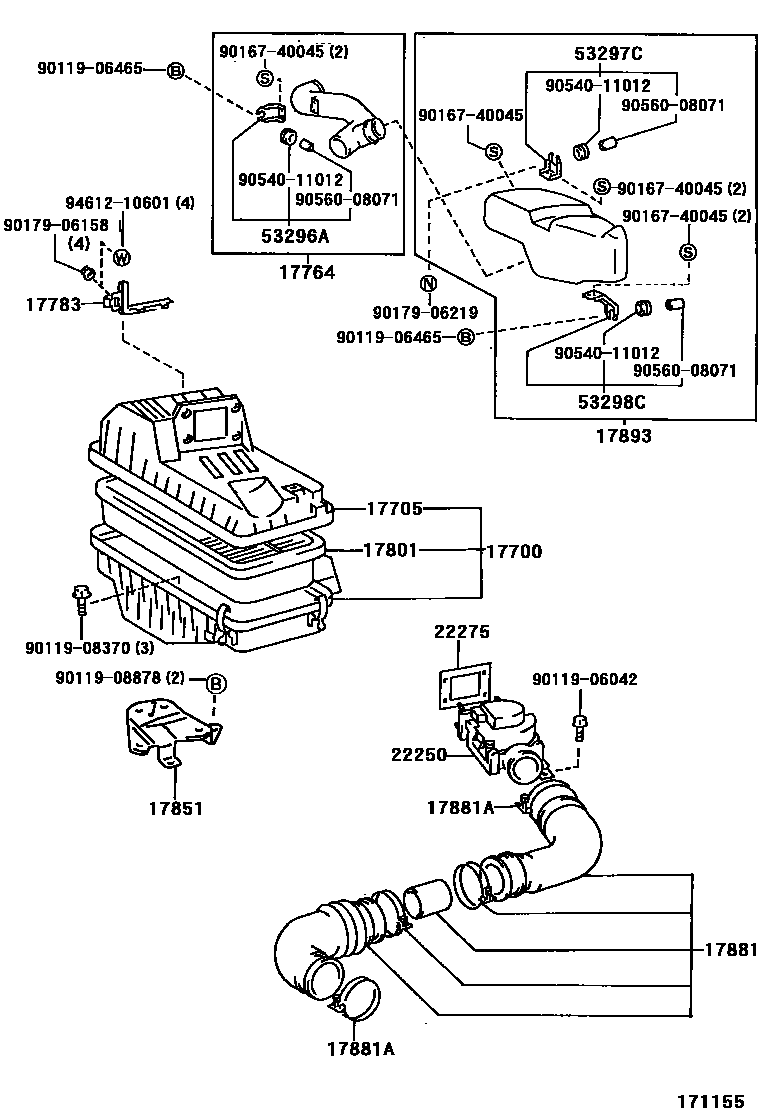

AIR CLEANER
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17783PLATE, AIR CLEANER BAFFLE
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17851BRACKET, AIR CLEANER SUPPORT
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.2
THROTTLE BODY SIDE
AIR CLEANER SIDE
NO.1
17893RESONATOR, INTAKE AIR
NO.1
NO.2
NO.3
22250METER ASSY, INTAKE AIR FLOW
22275GASKET, AIR FLOW METER
53296ARETAINER, COOL AIR INTAKE DUCT
53297CRETAINER, COOL AIR INTAKE DUCT, NO.2
53298CRETAINER, COOL AIR INTAKE DUCT, NO.3
9011906042
main90119-06042
9011906465
main90119-06465
9011908370
main90119-08370
9011908878
main90119-08878
9016740045
main90167-40045
9017906158
main90179-06158
9017906219
main90179-06219
9054011012
main90540-11012
9056008071
main90560-08071
9461210601
main94612-10601
24 parts on this diagram · 4 diagrams in section
