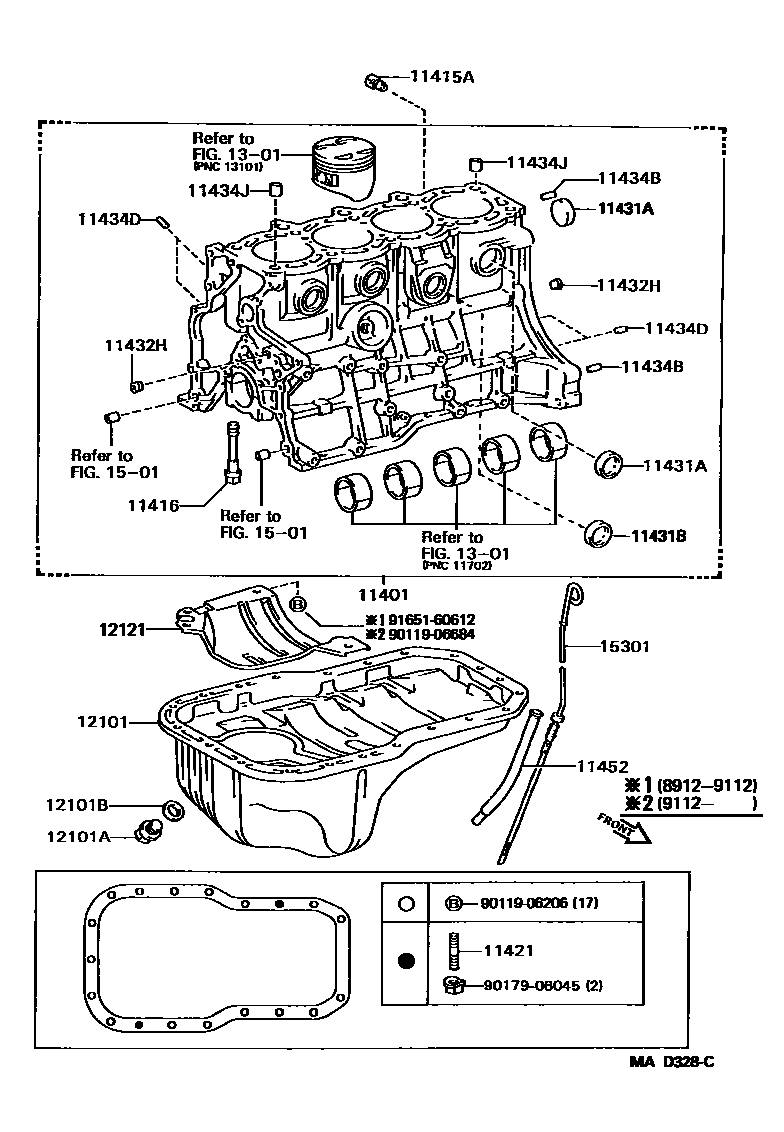

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-79306i3SFE..SW20198912-199005

sub11401-79307

main11401-79307i3SFE..SW20199005-199208

main11401-79495i3SGE..SW20198912-199009

sub11401-79496

main11401-79496i3SGE..SW20199009-199107

sub11401-79497

sub16268-88364

sub16281-88360

sub90406-14003

sub90467-20011

main11401-79497i3SGE..SW20199107-199311

main11401-79645i3SGE..SW20199606-199801

sub11401-79646

sub12121-88463

sub90119-08B60

main11401-79646i3SGE..SW20199801

main11401-79665i3SGE..SW20199311-199606

sub11401-79666

sub12121-88463

sub90119-08B60

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i3SFE..SW20198912-199208

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10028i3S#..SW20198912

11421BOLT, STUD(FOR OIL PAN)

main90116-06022i3SFE..SW20198912-199208

main90116-06048i3SGE..SW20199311

main90116-06119i3SGE..SW20198912-199311

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500i3S#..SW20198912

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i3S#..SW20198912

11432HPLUG, W/HEAD TAPER SCREW, NO.5

main90344-53006i3SFE..SW20199012-199208

main90344-53008i3SFE..SW20198912-199007

main90344-53015i3SGE..SW20198912-199012

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i3S#..SW20198912

L=22,OD=10

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i3SFE..SW20198912-199208

L=14,OD=6

main90250-06015i3SGE..SW20198912-199112

L=11,OD=6

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017i3S#..SW20198912

11452GUIDE, OIL LEVEL GAGE

main11452-74050i3SFE..SW20198912-199208

main11452-88362i3SGE..SW20198912-199311

main11452-88461i3SGE..SW20199311

12101PAN SUB-ASSY, OIL

main12101-74050i3SFE..SW20198912-199208

main12101-74070i3SGE..SW20198912-199311

main12101-88460i3SGE..SW20199311

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3S#..SW20198912-199107

main90341-12026i3SGE..SW20199005-199107

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12019i3SGE..SW20198912-199005

sub90430-12028

main90430-12027i3S#..SW20198912-199311

sub90430-12031

main90430-12031i3SGE..SW20199311

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-88461i3SGE..SW20199311-199801

sub12121-88463

main12121-88463i3SGE..SW20199801

main12123-74040i3SFE..SW20199112-199208

main12123-88360i3SGE..SW20198912-199311

1301

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-74040i3SFE..SW20198912-199208

sub15301-74100

main15301-88364i3SGE..SW20198912-199311

main15301-88461i3SGE..SW20199311

9011906206

main90119-06206

9011906684

main90119-06684

9017906045

main90179-06045

9165160612

main91651-60612
