ENGINE OVERHAUL GASKET KIT

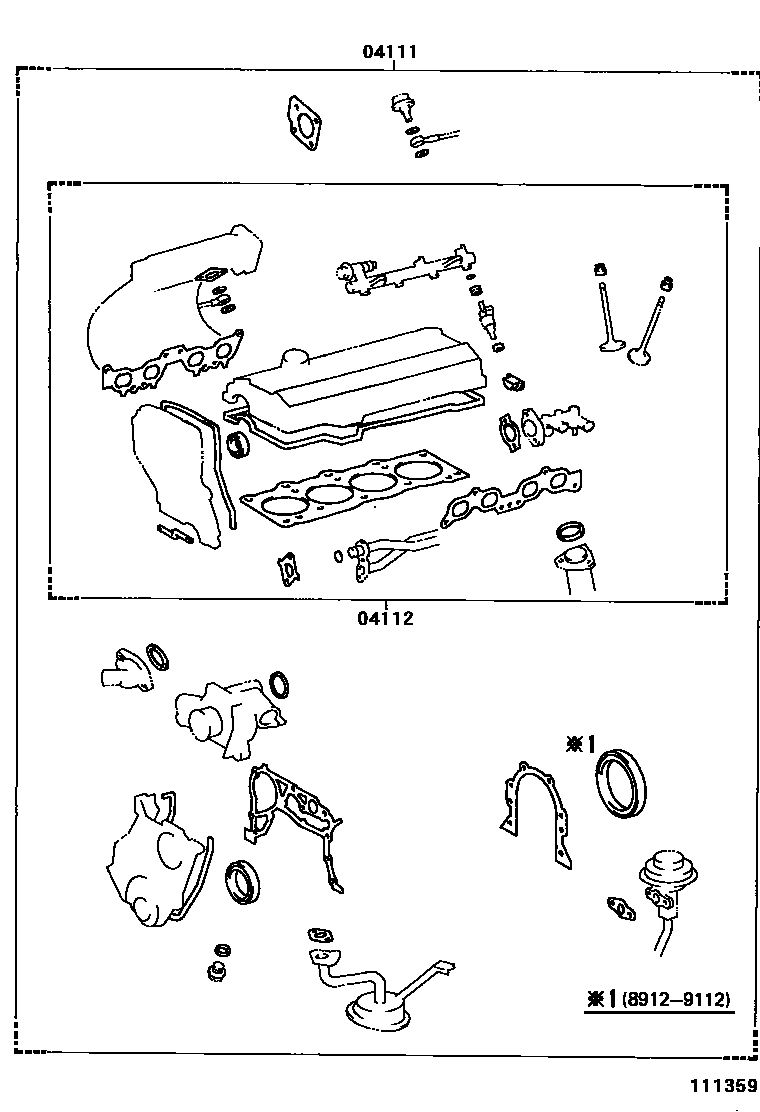

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-74200i198912-199112
main04111-74220i198912-199112
main04111-74380i199112-199208
main04111-74390i199112-199311
main04111-74560i199311-199606
sub04111-74561
main04111-74561i199606-199702
sub04111-74562
main04111-74562i199702
04112GASKET KIT, ENGINE VALVE GRIND
main04112-74200i198912-199112
main04112-74220i198912-199112
main04112-74380i199112-199208
main04112-74390i199112-199311
main04112-74530i199311-199606
sub04112-74531
main04112-74531i199606-199702
sub04112-74532
main04112-74532i199702

2 parts on this diagram · 3 diagrams in section
