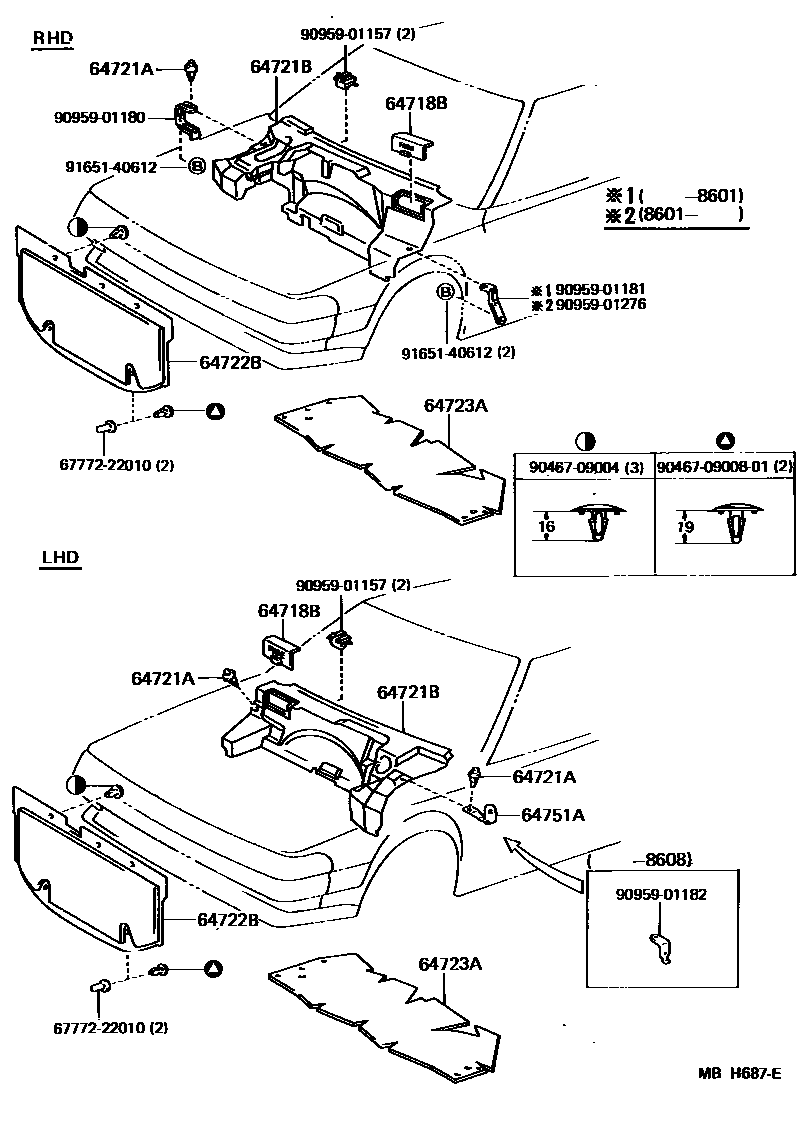

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1 0003 1 0004 1

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-17010iAW11..GEN198411-198607

sub64718-17011

main64718-17011iAW11..RHD;AW11..LHD..GEN198607-198912

main64718-17020iAW11..LHD..EUR198411-198607

sub64718-17021

main64718-17021iAW11..LHD..EUR198607-198912

main64718-17021iAW11..RHD..EUG198607-198912

ENGLAND SPEC

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07041-01iAW11198411-198803

BLACK,BLACK,TRIM2#

sub90467-07041

main90467-07041-01iAW11198803-198808

BLACK,TRIM2#

sub90467-07041

main90467-07041-13iAW11198803-198912

GRAY,TRIM2#,4#,8#

sub90467-07041

main90467-07041-34iAW11198803-198912

DARK BLUE,TRIM8#

sub90467-07041

main90467-07041-45iAW11..EUR,GEN198803-198808

DARK BEIGE,TRIM4#

sub90467-07041

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main64721-17010iAW11..RHD198411-198608

main64721-17030iAW11..LHD198411-198608

main64721-17031iAW11..LHD198608-198912

main64721-17050iAW11..RHD198411-198608

W/REMOVABLE ROOF

main64721-17070iAW11..LHD198411-198608

W/REMOVABLE ROOF

main64721-17071iAW11..CP..LHD..EUR198803-198912

W(REMOVABLE ROOF)

main64721-17071iAW11..CP..LHD..EUR198608-198803

W/REMOVABLE ROOF

main64721-17090iAW11..RHD198608-198912

main64721-17110iAW11..CP..RHD..EUG198803-198912

W(REMOVABLE ROOF)

main64721-17110iAW11..CP..RHD..EUG198608-198803

W/REMOVABLE ROOF

64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2

main64722-17030iAW11..GEN;AW11..FRG198411-198912

main64722-17040iAW11..EUG198411-198605

main64722-17050iAW11..GEN;AW11..FRG198411-198803

W/REMOVABLE ROOF

main64722-17050iAW11..CP..EUR198803-198912

W(REMOVABLE ROOF)

main64722-17060iAW11..EUG198411-198605

W/REMOVABLE ROOF

64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER

main64723-17010iAW11..LHD198411-198912

main64723-17020iAW11..RHD198411-198608

main64723-17021iAW11..RHD198608-198912

64751ABRACKET, LUGGAGE COMPARTMENT COVER, NO.1

main64751-17010iAW11..LHD198608-198912

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9046709004

main90467-09004

904670900801

main90467-0900801

9095901157

main90959-01157

9095901180

main90959-01180

9095901181

main90959-01181

9095901182

main90959-01182

9095901276

main90959-01276

9165140612

main91651-40612

15 parts on this diagram · 4 diagrams in section
