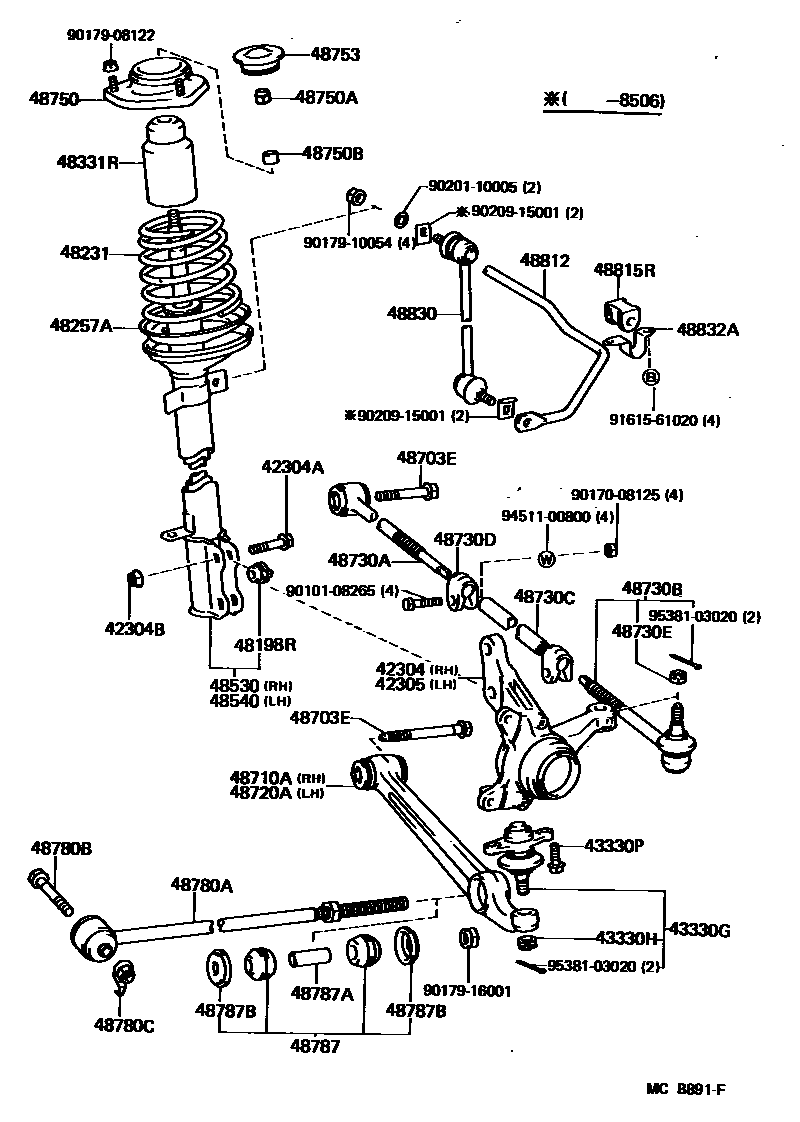

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42313-17010iAW11198411-198608

main42313-17020iAW11..ARL,EUR;AW11..TBR..GEN198804-198912

42304ABOLT (FOR REAR AXLE CARRIER)

main90105-12042×4iAW11198411-198608

main90105-15001×2iAW11..ARL,EUR;AW11..TBR..GEN198804-198912

42304BNUT (FOR REAR AXLE CARRIER)

main90179-12025×4iAW11198411-198608

main90179-15001×4iAW11198608-198803

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42314-17010iAW11198411-198608

main42314-17020iAW11..ARL,EUR;AW11..TBR..GEN198804-198912

43330GJOINT ASSY, LOWER BALL, REAR

main43330-19036×2iAW11198411-198507

main43330-19037×2iAW11198507-198608

main43330-39135×2iAW11198608-198803

43330HNUT (FOR REAR LOWER BALL JOINT)

main90171-14002×2iAW11198411-198804

43330PBOLT (FOR REAR LOWER BALL JOINT SETTING)

main90105-10129×4iAW11198411-198608

main90105-12059×4iAW11198608-198804

48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2

main48194-16010iAW11198411-198507

LH

main48194-16011iAW11198507-198608

LH

main48194-32020iAW11198608-198803

LH

main48198-16010iAW11198411-198507

RH

main48198-16011iAW11198507-198608

RH

main48198-32020iAW11..ARL,EUR;AW11..TBR..GEN198804-198908

RH

48231SPRING, COIL, REAR

main48231-17060×2iAW11198411-198608

main48231-17340×2iAW11198608-198708

main48231-17400×2iAW11..EUR198708-198912

main48231-17470×2iAW11..ARL,GEN198708-198804

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-16010×2iAW11198411-198804

48331RBUMPER, REAR SPRING

main48331-14020×2iAW11198608-198804

main48331-16030×2iAW11198411-198608

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-17030iAW11198411-198608

main48530-17070iAW11198608-198708

main48530-17100iAW11198708-198908

main48530-19185iAW11198908-198912

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-17030iAW11198411-198608

main48540-17070iAW11198608-198708

main48540-17100iAW11198708-198908

main48540-19025iAW11198908-198912

48703EBOLT(FOR REAR SUSPENSION ARM)

main90105-12037×2iAW11198411-198608

NO.2 ARM

main90105-12101×2iAW11198608-198612

NO.2 ARM

main90119-12083×2iAW11198411-198803

*12-1.25PX80-25,NO.1 ARM

main90119-12130×2iAW11198803-198804

*12-1.25PX70-30

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48703-17010iAW11198411-198804

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48703-17010iAW11198411-198804

48730AARM ASSY, REAR SUSPENSION, NO.2

main48709-17010×2iAW11198411-198608

main48709-17020×2iAW11198608-198804

48730BEND SUB-ASSY, TIE ROD(FOR REAR SUSPENSION ARM)

main45046-19155×2iAW11198411-198608

main45046-19185×2iAW11198608-198804

48730CTUBE, TIE ROD ADJUSTING(FOR REAR SUSPENSION ARM)

main45465-12020×2iAW11198411-198804

48730DCLAMP, TIE ROD END(FOR REAR SUSPENSION ARM)

main45466-22010×4iAW11198411-198804

48730ENUT(FOR TIE ROD END)

main90171-12028×2iAW11198411-198804

48750SUPPORT ASSY, REAR SUSPENSION

main48750-17010×2iAW11198411-198804

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90179-14015×2iAW11198411-198804

48750BCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90387-15012×2iAW11198411-198804

48753COVER, REAR SUSPENSION SUPPORT

main48753-17010×2iAW11198411-198804

48780AROD ASSY, STRUT, REAR

main48780-17010×2iAW11198411-198608

main48780-17020×2iAW11198608-198804

48780BBOLT(FOR STRUT ROD)

main90105-12082×2iAW11198411-198612

main90119-12131×2iAW11198612-198803

48780CNUT(FOR STRUT ROD)

main90179-12039×2iAW11198411-198804

48787CUSHION, STRUT BAR

main48787-19015×4iAW11198411-198804

48787ACOLLER(FOR STRUT BAR CUSHION)

main90387-16003×2iAW11198411-198804

48787BRETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02057×4iAW11198411-198804

48812BAR, STABILIZER, REAR

main48812-17010iAW11198411-198608

main48812-17030iAW11198608-198708

main48812-17050iAW11198708-198804

48815RBUSH, STABILIZER(FOR REAR)

main48818-17010×2iAW11198411-198608

main48818-17030×2iAW11198608-198708

main48818-17050×2iAW11198708-198711

main48818-17060×2iAW11198711-198804

48830LINK ASSY, REAR STABILIZER

main48830-17010×2iAW11198411-198608

main48830-17020×2iAW11198608-198804

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-17010×2iAW11198411-198608

main48832-17020×2iAW11198608-198803

9010108265

main90101-08265

9017008125

main90170-08125

9017908122

main90179-08122

9017910054

main90179-10054

9017916001

main90179-16001

9020110005

main90201-10005

9020915001

main90209-15001

9161561020

main91615-61020

9451100800

main94511-00800

9538103020

main95381-03020

45 parts on this diagram · 1 diagram in section
