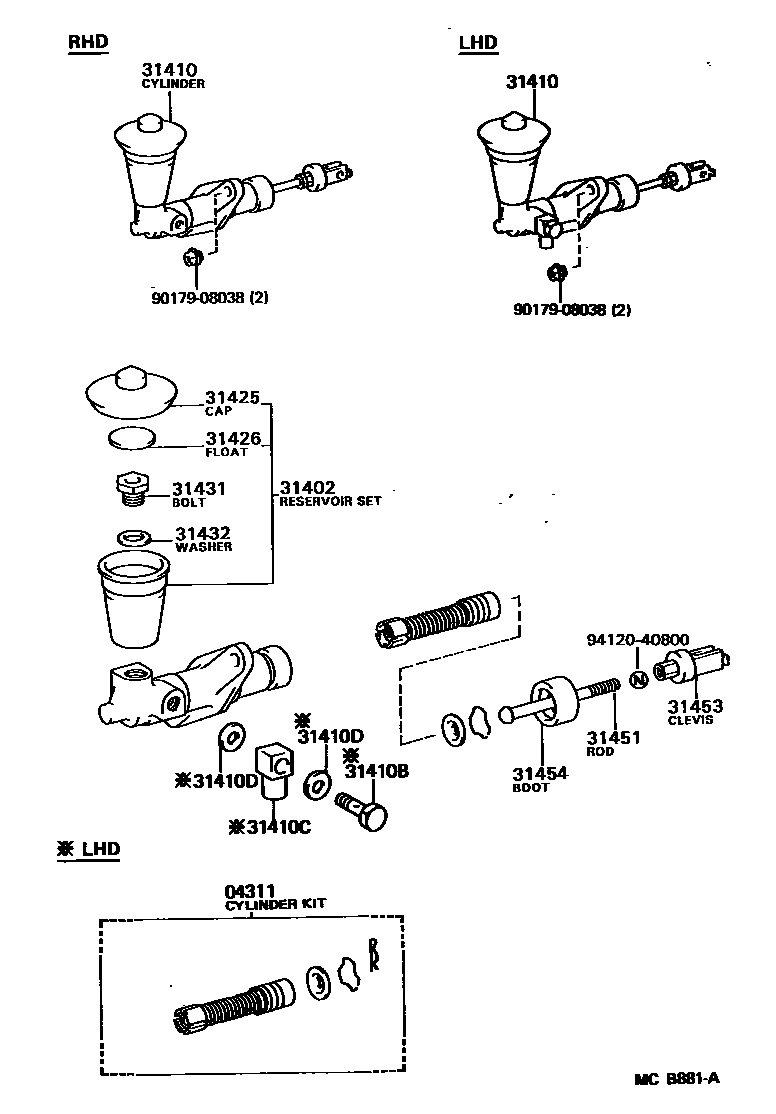

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14030198609-198704

main04311-14031198704-198803

main04311-14032198803-198805

main04311-17020198411-198609

main04311-32030198805-198912

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12010198411-198912

31410CYLINDER ASSY, CLUTCH MASTER

main31410-17020198411-198704

main31410-17021198704-198708

main31410-17022198708-198710

main31410-17023198710-198805

main31410-17024198805-198912

main31410-17030198411-198608

main31410-17050198608-198704

main31410-17051198704-198710

main31410-17052198710-198805

main31410-17053198805-198912

31410BBOLT, UNION(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)

main90401-12011198411-198805

main90401-12014198805-198912

31410CUNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90404-12002198411-198912

31410DGASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90430-12221198411-198912

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010198411-198912

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011198411-198912

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010198411-198912

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010198411-198912

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-17020198411-198609

main31451-17030198609-198805

main31451-17031198805-198912

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011198411-198708

main31404-30041198608-198708

main31404-30050198708-198904

main31404-30051198904-198912

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010198411-198912

9017908038

main90179-08038

9412040800

main94120-40800

15 parts on this diagram · 1 diagram in section
