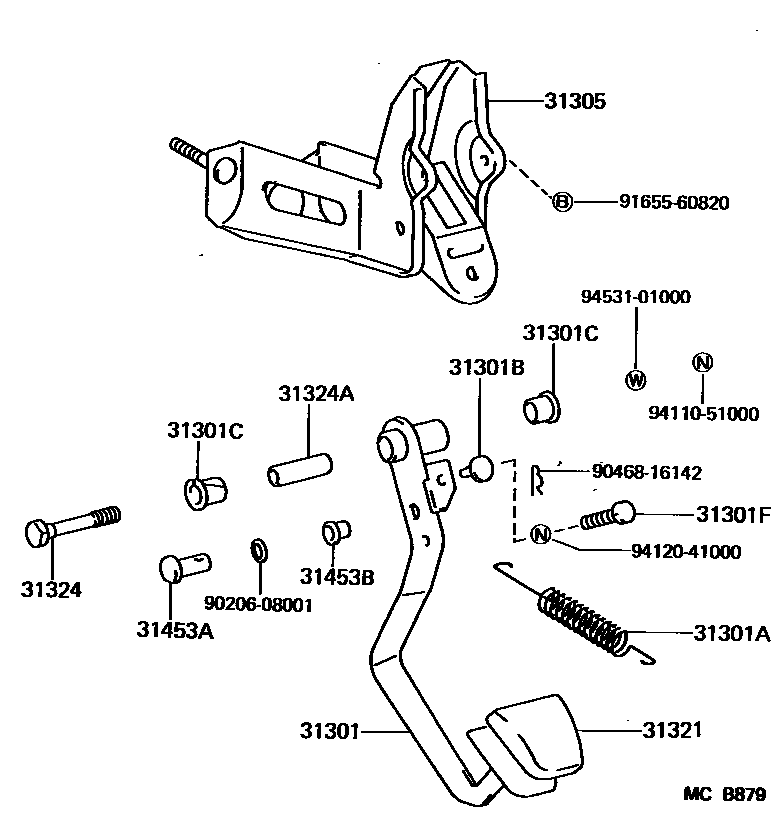

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-17010iAW11..RHD198411-198608

main31301-17021iAW11..LHD..EUR;AW11..TBR..LHD..GEN198804-198912

main31301-17040iAW11..TBR..RHD..GEN;AW11..RHD..(ARL,EUR)198804-198912

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14003iAW11198411-198804

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iAW11198411-198804

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13192×2iAW11..ARL,EUR;AW11..TBR..GEN198804-198912

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAW11198411-198804

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main55107-17010iAW11..RHD198411-198608

main55107-17011iAW11..RHD198608-198912

main55107-17020iAW11..LHD198411-198912

31321PAD, CLUTCH PEDAL

main31321-12030iAW11198411-198804

31324SHAFT, CLUTCH PEDAL

main90101-10015iAW11198411-198804

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iAW11198411-198804

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iAW11..ARL,EUR;AW11..TBR..GEN198804-198912

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAW11198411-198804

9020608001

main90206-08001

9046816142

main90468-16142

9165560820

main91655-60820

9411051000

main94110-51000

9412041000

main94120-41000

9453101000

main94531-01000

17 parts on this diagram · 2 diagrams in section
