MOUNTING

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-15100i4AG#..AW11198411-198912

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-16010i4AG#..AW11198411-198708

main12315-16040i4AG#..AW11198708-198912

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-15030i4AG#..AW11198411-198912

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-15030i4AG#..AW11198411-198912

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-15110i4AG#..AW11198411-198608

main12361-15111i4AG#..AW11198608-198912

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-15061i4AG#..AW11198411-198608

main12362-16030i4AG#..AW11198608-198708

sub90119-10487

main12362-16031i4AG#..AW11198708-198912

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-15140i4AGEL..AW11198411-198503

main12371-15141i4AG#..AW11198503-198608

main12371-16080i4AG#..AW11198608-198912

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-15070i4AG#..AW11198411-198912

12511BRACKET, ALTERNATOR, NO.1

main12511-16030i4AG#..AW11198411-198912

1603

9010510063

main90105-10063

9010510193

main90105-10193

9010510215

main90105-10215

9010512035

main90105-12035

9010512093

main90105-12093

9010512095

main90105-12095

9011910313

main90119-10313

9011910458

main90119-10458

9011910487

main90119-10487

9011910497

main90119-10497

9017910098

main90179-10098

9017910108

main90179-10108

9017912025

main90179-12025

9151161020

main91511-61020

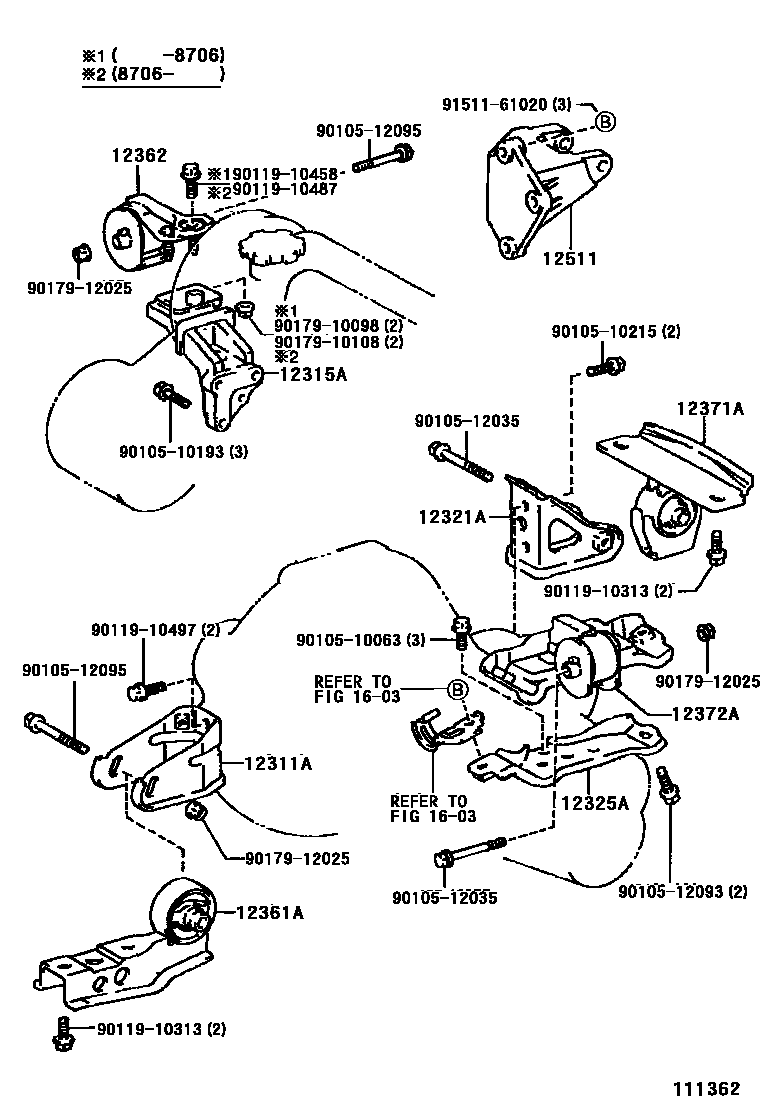

24 parts on this diagram · 1 diagram in section
