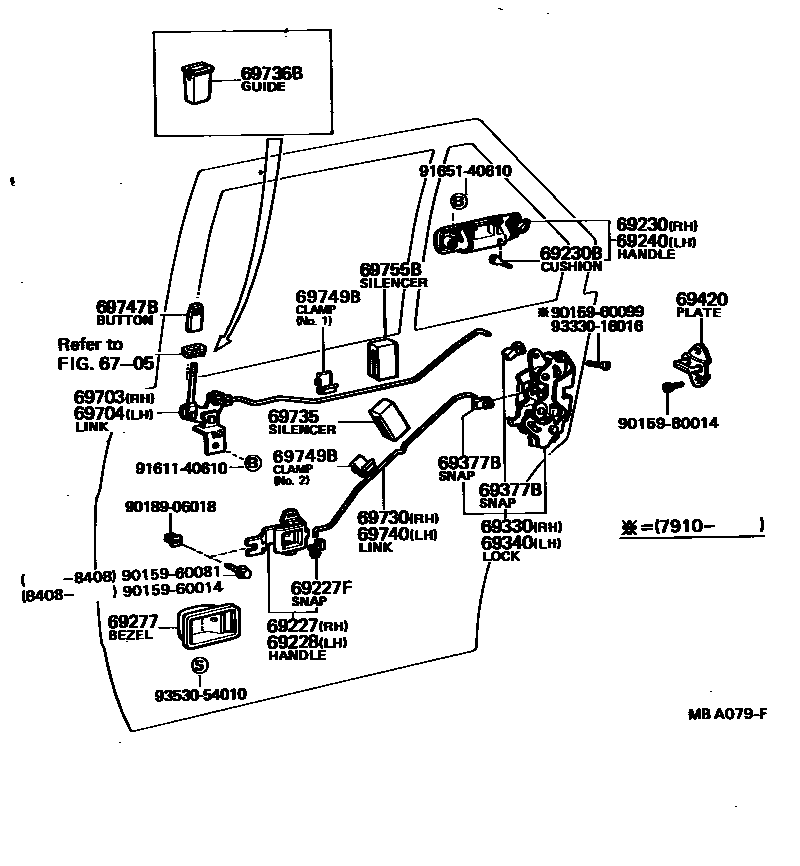

REAR DOOR LOCK & HANDLE

6705

69227HANDLE, REAR DOOR INSIDE, RH

main69205-16010-01iCE70,KE70,TE7#..4D197908-198508

BLACK,BLACK,TRIM0#,2#

sub69205-16010

main69205-16010-03iCE70,KE70..WG..4D..(EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

sub69205-16010

main69205-16010-04iKE70..SAA197908-198308

BLUE,BLUE,TRIM8#

sub69205-16010

main69205-16010-05iTE7#..4D;KE70..4D..(EUR,GEN)197908-198008

BEIGE,BEIGE,TRIM4#

sub69205-16010

main69205-16010-06iAE71,KE70,TE7#..4D..(ARL,GEN,SA,SAA)198108-198508

DARK BROWN,BROWN,TRIM4#

sub69205-16010

main69205-16010-13iAE71,CE70,KE70..4D198508-198707

GRAY,GRAY,TRIM1#

sub69205-16010

main69205-16010-15iCE70,KE70..WG..4D..(EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

sub69205-16010

main69205-16010-16iTE7#..4D;KE70..DX..SA;KE70..4D..(EUR,GEN)198008-198305

LIGHT BROWN,BROWN,TRIM4#

sub69205-16010

main69205-16010-26iAE71,CE70,KE70..4D198508-198707

BROWN,BROWN,TRIM4#

sub69205-16010

69227FSNAP(FOR REAR DOOR INSIDE HANDLE)

main69279-12010iAE71,CE70,KE70,TE7#..4D197908-198707

69228HANDLE, REAR DOOR INSIDE, LH

main69206-16010-01iAE71,KE70,TE7#..4D..(ARL,GEN,SA,SAA)197908-198508

BLACK,BLACK,TRIM0#,2#

sub69206-16010

main69206-16010-03iCE70,KE70..WG..4D..(EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

sub69206-16010

main69206-16010-04iKE70..SAA197908-198308

BLUE,BLUE,TRIM8#

sub69206-16010

main69206-16010-05iTE7#..4D;KE70..4D..(EUR,GEN)197908-198008

BEIGE,BEIGE,TRIM4#

sub69206-16010

main69206-16010-06iCE70,KE70,TE7#..4D..(EUR,GEN,SA,SAA)198108-198508

DARK BROWN,BROWN,TRIM4#

sub69206-16010

main69206-16010-13iAE71,CE70,KE70..4D198508-198707

GRAY,LIGHT GRAY,TRIM1#

sub69206-16010

main69206-16010-15iCE70,KE70..WG..4D..(EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

sub69206-16010

main69206-16010-16iTE7#..4D;KE70..DX..SA;KE70..4D..(EUR,GEN)198008-198305

LIGHT BROWN,BROWN,TRIM4#

sub69206-16010

main69206-16010-26iAE71,CE70,KE70..4D198508-198707

BROWN,BROWN,TRIM4#

sub69206-16010

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-12071iAE71,CE70,KE70..4D..(EUR,GEN)198305-198707

main69230-12040iCE70,KE70,TE7#..4D197908-198707

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021iCE70,KE70,TE7#..4D197908-198707

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-12071iAE71,CE70,KE70..4D..(EUR,GEN)198305-198707

main69240-12040iCE70,KE70,TE7#..4D197908-198707

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-16040-01iKE70..4D..STD..SA;KE70,TE71..4D..(ARL,EUR,GEN,SAA)197908-198508

BLACK,BLACK,TRIM0#,2#

sub69277-16040

sub69277-89104

main69277-16040-04iCE70,KE70,TE71..4D..(ARL,EUR,GEN,SAA)197908-198308

BLUE,BLUE,TRIM8#

sub69277-16040

sub69277-89104

main69277-16040-05iTE7#..4D;KE70..4D..(EUR,GEN)197908-198008

BEIGE,BEIGE,TRIM4#

sub69277-16040

sub69277-89104

main69277-16040-06iAE71,KE70,TE7#..4D..(ARL,GEN,SA,SAA)198108-198508

DARK BROWN,BROWN,TRIM4#

sub69277-16040

sub69277-89104

main69277-16040-16iKE70,TE7#..(DX,GL)..SA198008-198305

LIGHT BROWN,BROWN,TRIM4#

sub69277-16040

sub69277-89104

main69277-16040-33iCE70,KE70..WG..4D..(EUR,GEN)198305-198508

GRAY,GRAY,TRIM1#

sub69277-16040

sub69277-89104

main69277-16040-43iAE71,CE70,KE70..4D198508-198707

GRAY,LIGHT GRAY,TRIM1#

sub69277-16040

sub69277-89104

main69277-16040-45iCE70,KE70..WG..4D..(EUR,GEN)198305-198508

BEIGE,BEIGE,TRIM4#

sub69277-16040

sub69277-89104

main69277-16040-46iAE71,CE70,KE70..4D198508-198707

BROWN,BROWN,TRIM4#

sub69277-16040

sub69277-89104

69330LOCK ASSY, REAR DOOR, RH

main69330-12050iCE70,KE70,TE7#..4D197908-198707

main69330-12140iAE71,CE70,KE70..4D..(EUR,GEN)198305-198707

69340LOCK ASSY, REAR DOOR, LH

main69340-12050iCE70,KE70,TE7#..4D197908-198707

main69340-12140iAE71,CE70,KE70..4D..(EUR,GEN)198305-198707

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69377-30020iAE71,CE70,KE70,TE7#..4D197908-198707

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-12040iAE71,CE70,KE70,TE7#..4D197908-198502

sub69410-90B02

main69410-12070iAE71,CE70,KE70..4D198502-198707

sub69410-90B02

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-12010iAE71,CE70,KE70,TE7#..4D197908-198707

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-12010iAE71,CE70,KE70,TE7#..4D197908-198707

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-12020iAE71,CE70,KE70,TE7#..4D197908-198707

69735SILENCER, REAR DOOR LOCK LINK

main69759-12011iAE71,CE70,KE70,TE7#..4D197908-198707

69736BGUIDE, REAR DOOR LOCK LINK

main69736-12030iAE71,CE70,KE70,TE71..(DX,XL)..(EUR,GEN,SA)198408-198707

main69736-22020iKE70,TE71..SED..4D..DX..(EUR,GEN)198005-198108

sub69736-22021

main69736-22021iKE70..4D..ARL198108-198408

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-12030iAE71,CE70,KE70,TE7#..4D197908-198707

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-20020-01iAE71,CE70,KE70,TE7#..4D197908-198508

BLACK

sub69741-20020

sub69741-32010

main69741-90K00-01iAE71,CE70,KE70..4D198508-198707

BLACK

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010iKE70,TE7#..4D197908-198707

NO.1

main69749-30020iTE72..(4FC,5F)..GL;AE71,CE70,KE70,TE71..4D198208-198707

NO.2

69755BSILENCER, REAR DOOR LOCK LINK

main69759-12011iAE71,CE70,KE70,TE7#..4D198008-198707

9015960014

main90159-60014

9015960081

main90159-60081

9015960099

main90159-60099

9015980014

main90159-80014

9018906018

main90189-06018

9161140610

main91611-40610

9165140610

main91651-40610

9333016016

main93330-16016

9353054010

main93530-54010

30 parts on this diagram · 1 diagram in section
