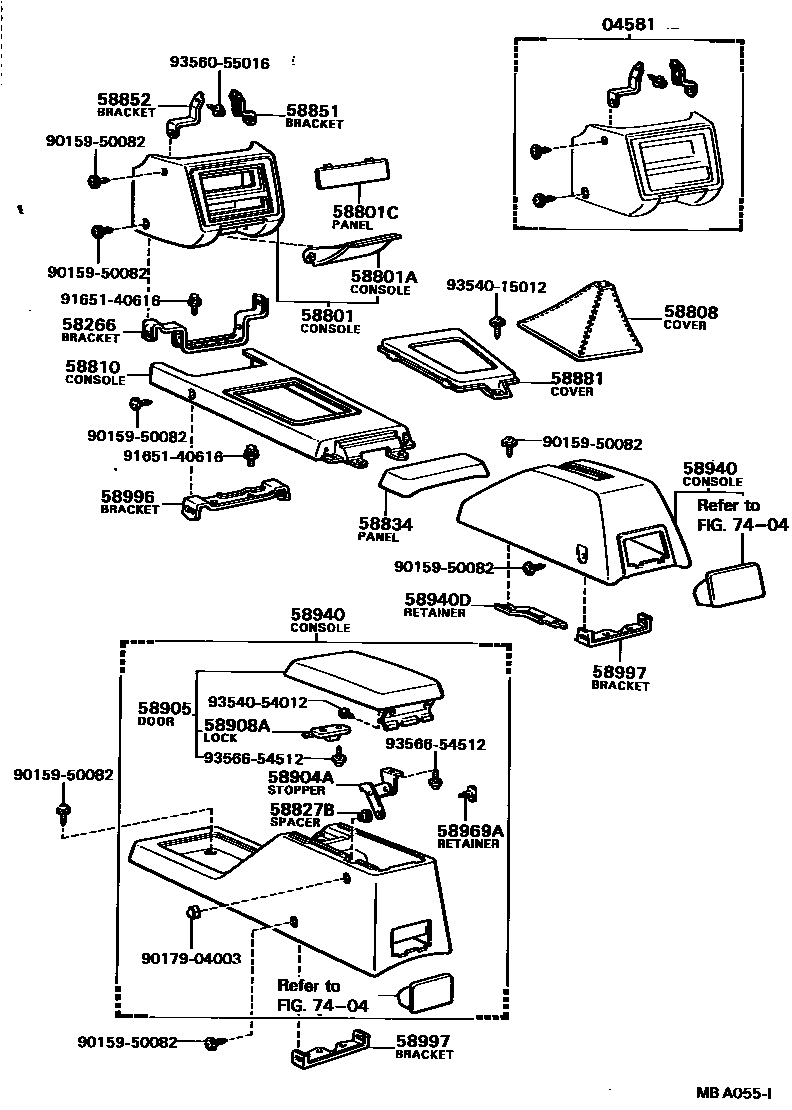

CONSOLE BOX & BRACKET

0001 1 0004 1 0007 1 0009 1

04581FITTING KIT, CONSOLE

main04581-12020iKE70..(SED,WG)..LHD..DX..EUR197908-198410

main04581-12030iKE70,TE7#..(CP,LB)..(ARL,GEN,SA)197908-198204

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58902-12010iKE70,TE71..(DV,SED,WG)..GEN197908-198410

W/STEREO

main58902-12020iKE70,TE7#..(CP,LB)..LHD..EUR197908-198204

W/STEREO

main58991-12020iKE70,TE7#..(DV,SED,WG)..(GEN,SA)197908-198410

58801CONSOLE SUB-ASSY, UPPER

main58801-12020-01iKE70,TE71..(DV,SED,WG)..GEN197908-197912

BLACK,BLACK,TRIM0#,2#

sub58801-12021

main58801-12020-01iKE70,TE71..(DV,SED,WG)..GEN197908-197912

BLACK,BLACK,TRIM2#

sub58801-12021

main58801-12020-04iKE70..SED..LHD..EUR197908-197912

BLUE,BLUE,TRIM8#

sub58801-12021

main58801-12020-15iKE70,TE71..(DV,SED,WG)..GEN197908-197912

BEIGE,BEIGE,TRIM4#

sub58801-12021

main58801-12021-01iAE71,KE70..4D..ARL197912-198410

BLACK,BLACK,TRIM0#,2#

sub58801-12021

main58801-12021-01iKE70..SED..LHD..EUR197912-198108

BLACK,BLACK,TRIM2#

sub58801-12021

main58801-12021-04iKE70..SED..LHD..EUR197912-198305

BLUE,BLUE,TRIM8#

sub58801-12021

main58801-12021-15iKE70..SED..LHD..EUR197912-198410

BEIGE,BEIGE,TRIM4#

sub58801-12021

main58801-12030-15iTE7#..4D..SA198007-198204

BEIGE,BEIGE,TRIM4#

sub58801-12021

sub58801-12030

main58813-12040-01iKE70,TE7#..(CP,LB)..LHD..EUR197908-198108

BLACK,BLACK,TRIM0#,2#

sub58813-12040

main58813-12040-04iKE70,TE7#..(CP,LB)..LHD..EUR197908-198108

BLUE,BLUE,TRIM8#

sub58813-12040

main58813-12040-06iKE70,TE7#..(CP,LB)..(ARL,GEN,SA)197908-198204

DARK BROWN,BROWN,TRIM4#

sub58813-12040

main58813-12041-01iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)198108-198406

BLACK,BLACK,TRIM0#,2#

sub58813-12041

main58813-12041-04iTE71..SAA198108-198308

BLUE,BLUE,TRIM8#

sub58813-12041

main58813-12041-06iKE70,TE7#..(CP,LB)..(ARL,EUR,GEN,SAA)198108-198406

DARK BROWN,BROWN,TRIM4#

sub58813-12041

main58813-12070-01iKE70,TE71..(DV,SED,WG)..(EUR,GEN,SAA)198108-198502

BLACK,BLACK,TRIM0#,2#

sub58801-12050

main58813-12070-01iAE71,KE70,TE71..(DV,WG)..(GEN,SA,SAA)198108-198508

BLACK,BLACK,TRIM2#

sub58801-12050

main58813-12070-02iAE71..STD198305-198409

MAROON,RED/MAROON,TRIM3#

sub58801-12050

main58813-12070-03iAE71,CE70,KE70198305-198707

GRAY,GRAY,TRIM1#

sub58801-12050

main58813-12070-04iKE70..2D..ARL198108-198309

BLUE,BLUE,TRIM8#

sub58801-12050

main58813-12070-06iKE70..2D..ARL198108-198508

DARK BROWN,BROWN,TRIM4#

sub58801-12050

main58813-12070-16iAE71,CE70,KE70198409-198707

BROWN,BROWN,TRIM4#

sub58801-12050

58801ABOX, INSTRUMENT PANEL COIN(FOR UPPER CONSOLE)

main55441-12070-01iKE70,TE71..(DV,SED,WG)..GEN197908-198108

BLACK,BLACK,TRIM2#

sub55441-12070

main55441-12070-01iKE70,TE71..(DV,SED,WG)..GEN197908-198410

BLACK,BLACK,TRIM0#,2#

sub55441-12070

main55441-12070-04iKE70,TE71..(DV,SED,WG)..GEN197908-198305

BLUE,BLUE,TRIM8#

sub55441-12070

main55441-12070-15iKE70..WG..LHD..DX..EUG197908-198410

BEIGE,BEIGE,TRIM4#

sub55441-12070

58801CPANEL, STEREO PLAYER FINISH

main55423-12040iKE70,TE7#..(DV,SED,WG)..(GEN,SA)197908-198410

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12070-01iKE70,TE7#..MTM..(ARL,EUR,GEN,SAA)197908-198707

BLACK,BLACK,TRIM0#,2#

main58808-12070-04iKE70..SAA197908-198308

BLUE,BLUE,TRIM8#

main58808-12070-05iTE71..GL198007-198305

BEIGE,BEIGE,TRIM4#

main58808-12070-06iTE71..SE..SA197908-198508

DARK BROWN,BROWN,TRIM4#

58810CONSOLE ASSY

main58811-12220-01iKE70..SED..STD..EUG;KE70..(SED,WG)..LHD..MTM..DX..EUR197908-198410

BLACK,BLACK,TRIM0#,2#

sub58811-12220

main58811-12220-04iKE70,TE71..(DV,SED,WG)..MTM..GEN197908-198305

BLUE,BLUE,TRIM8#

sub58811-12220

main58811-12220-15iKE70,TE71..MTM..(DX,GL)..SA197908-198410

BEIGE,BEIGE,TRIM4#

sub58811-12220

main58811-12230-01iTE71..RHD..SR..EUG197908-198108

COLD SPEC,BLACK,BLACK,TRIM0#,2#

sub58811-12230

main58811-12230-01iKE70..SED..STD..EUG;KE70..(SED,WG)..LHD..MTM..DX..EUG197908-198108

BLACK,BLACK,TRIM0#,2#

sub58811-12230

main58811-12230-04iTE71..RHD..SR..EUG197908-198108

BLUE,BLUE,TRIM8#

sub58811-12230

main58811-12230-04iKE70..SED..STD..EUG;KE70..(SED,WG)..LHD..MTM..DX..EUG197908-198108

COLD SPEC,BLUE,BLUE,TRIM8#

sub58811-12230

main58811-12230-06iKE70..SED..STD..EUG;KE70..(SED,WG)..LHD..MTM..DX..EUG197908-198108

DARK BROWN,BROWN,TRIM4#

sub58811-12230

main58811-12230-15iTE71..RHD..SR..EUG197908-198108

BEIGE,BEIGE,TRIM4#

sub58811-12230

main58811-12240-01iKE70..(SED,WG)..LHD..2FC..EUG197908-198108

W/UPR CONSOLE,BLACK,BLACK,TRIM0#,2#

sub58811-12240

main58811-12240-01iAE71,KE70..3FC..ARL198108-198410

BLACK,BLACK,TRIM0#,2#

sub58811-12240

main58811-12240-04iKE70..(SED,WG)..LHD..2FC..EUG197908-198108

W/UPR CONSOLE,BLUE,BLUE,TRIM8#

sub58811-12240

main58811-12240-04iKE70..3FC..ARL198108-198305

BLUE,BLUE,TRIM8#

sub58811-12240

main58811-12240-15iAE71,KE70..3FC..ARL198204-198410

BEIGE,BEIGE,TRIM4#

sub58811-12240

main58811-12240-15iKE70..(SED,WG)..LHD..2FC..EUG197908-198204

W/UPR CONSOLE,BEIGE,BEIGE,TRIM4#

sub58811-12240

main58811-12250-01iKE70..(SED,WG)..LHD..2FC..EUG197908-198108

COLD SPEC,W/UPR CONSOLE,BLACK,BLACK,TRIM0#,2#

sub58811-12250

main58811-12250-04iKE70..(SED,WG)..LHD..2FC..EUG197908-198108

COLD SPEC,W/UPR CONSOLE,BLUE,BLUE,TRIM8#

sub58811-12250

main58811-12250-15iKE70..(SED,WG)..LHD..2FC..EUG197908-198108

COLD SPEC,W/UPR CONSOLE,BEIGE,BEIGE,TRIM4#

sub58811-12250

main58811-12260-01iTE71..2D..GEN;KE70..LB..4F..GEN;KE70..CP..LHD..4F..GEN;KE70,TE72..5F..2D..(ARL,GEN)197908-198108

BLACK,BLACK,TRIM0#,2#

sub58811-12260

main58811-12260-04iKE70,TE71..(CP,LB)..LHD..MTM..EUG197908-198108

BLUE,BLUE,TRIM8#

sub58811-12260

main58811-12260-06iKE70,TE71..(CP,LB)..LHD..MTM..EUG197908-198204

DARK BROWN,BROWN,TRIM4#

sub58811-12260

main58811-12270-01iKE70,TE71..ATM..(EUR,GEN)197908-198108

COLD SPEC,W/O UPRCONSOLE,BLACK,BLACK,TRIM0#,2#

sub58811-12270

main58811-12270-04iKE70,TE71..ATM..(EUR,GEN)197908-198108

COLD SPEC,W/O UPR CONSOLE,BLUE,BLUE,TRIM8#

sub58811-12270

main58811-12270-15iTE71..3FC..SA198108-198204

W/O UPR CONSOLE,BEIGE,BEIGE,TRIM4#

sub58811-12270

main58811-12270-15iKE70,TE71..ATM197908-198108

COLD SPEC,W/O UPRCONSOLE,BEIGE,BEIGE,TRIM4#

sub58811-12270

main58811-12280-01iKE70,TE7#..(CP,LB)..LHD..MTM..EUR197908-198108

COLD SPEC,BLACK,BLACK,TRIM0#,2#

sub58811-12280

main58811-12280-04iKE70,TE7#..(CP,LB)..LHD..MTM..EUR197908-198108

COLD SPEC,BLUE,BLUE,TRIM8#

sub58811-12280

main58811-12280-06iKE70,TE7#..(CP,LB)..LHD..MTM..EUR197908-198108

COLD SPEC,DARK BROWN,BROWN,TRIM4#

sub58811-12280

main58811-12290-01iKE70,TE71..LB..ATM197908-198108

W/UPR CONSOLE,BLACK,BLACK,TRIM0#,2#

sub58811-12290

main58811-12290-04iKE70,TE71..LB..ATM197908-198108

W/UPR CONSOLE,BLUE,BLUE,TRIM8#

sub58811-12290

main58811-12290-06iTE72..SE..SA198007-198204

BEIGE,BROWN,TRIM4#

sub58811-12290

main58811-12290-06iKE70,TE71..LB..ATM197908-198108

W/UPR CONSOLE,BEIGE,BROWN,TRIM4#

sub58811-12290

main58811-12300-01iKE70,TE71..LB..ATM197908-198108

COLD SPEC,BLACK,BLACK,TRIM0#,2#

sub58811-12300

main58811-12300-04iKE70,TE71..LB..ATM197908-198108

COLD SPEC,BLUE,BLUE,TRIM8#

sub58811-12300

main58811-12300-06iKE70,TE71..LB..ATM197908-198108

COLD SPEC,DARK BROWN,BROWN,TRIM4#

sub58811-12300

main58811-12310-01iKE70,TE7#..(LB,SED)..MTM..(GEN,SA,SAA)198108-198502

BLACK,BLACK,TRIM0#,2#

main58811-12310-01iAE71,KE70,TE71..(DV,WG)..(GEN,SA,SAA)198305-198508

BLACK,BLACK,TRIM2#

main58811-12310-02iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198409

MAROON,RED/MAROON,TRIM3#

main58811-12310-03iAE71,CE70,KE70198305-198707

GRAY,GRAY,TRIM1#

main58811-12310-04iTE71..MTM..(EUR,GEN,SAA);CE70,KE70,TE72..MTM..(DX,GL,STD,XL)..(EUR,GEN,SAA)198108-198309

BLUE,BLUE,TRIM8#

main58811-12310-06iKE70,TE72..2D..ARL198108-198508

DARK BROWN,BROWN,TRIM4#

main58811-12310-16iAE71,CE70,KE70198409-198707

BROWN,BROWN,TRIM4#

main58811-12320-01iKE70,TE71..3FC..(EUR,GEN)198108-198406

BLACK,BLACK,TRIM0#,2#

main58811-12320-04iKE70,TE71..3FC..(EUR,GEN)198108-198305

BLUE,BLUE,TRIM8#

main58811-12320-06iKE70,TE7#..ATM..(EUR,GEN,SA)198108-198406

DARK BROWN,BROWN,TRIM4#

58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER

main58827-20021iKE70,TE71..GL..GEN198108-198406

W/FULL CONSOLE

main58827-20021iAE71,KE70..(DX,GL)..ARL197908-198502

58834PANEL, CONSOLE END

main58923-12010-01iKE70,TE71..(CP,LB)..DX..GEN197908-198502

BLACK,BLACK,TRIM0#,2#

sub58923-12010

main58923-12010-01iKE70,TE71..(DV,SED,WG)..GEN197908-198508

BLACK,BLACK,TRIM2#

sub58923-12010

main58923-12010-02iCE70,KE70..(DV,WG)..(EUR,GEN)198305-198409

MAROON,RED/MAROON,TRIM3#

sub58923-12010

main58923-12010-03iAE71,CE70,KE70198305-198707

GRAY,GRAY,TRIM1#

sub58923-12010

main58923-12010-04iKE70..SED..2FC..EUG;KE70..SED..LHD..MTM..EUR197908-198309

BLUE,BLUE,TRIM8#

sub58923-12010

main58923-12010-06iKE70..2D..ARL197908-198508

DARK BROWN,BROWN,TRIM4#

sub58923-12010

main58923-12010-15iKE70..WG..LHD..DX..EUG197908-198305

BEIGE,BEIGE,TRIM4#

sub58923-12010

main58923-12010-16iCE70,KE70..EUR,GEN198409-198707

BROWN,BROWN,TRIM4#

sub58923-12010

58851BRACKET, CONSOLE SUPPORT, UPPER RH

main58857-12010iKE70,TE7#..(DV,SED,WG)..(GEN,SA)197908-198410

main58857-12030iAE71,KE70..2D..ARL198108-198707

main58857-12040iAE71,CE70,KE70,TE71..(DV,SED,WG)..LHD198108-198707

58852BRACKET, CONSOLE SUPPORT, UPPER LH

main58858-12010iKE70..SED..STD..EUG197908-198410

main58858-12030iAE71,KE70..2D..ARL198108-198707

main58858-12040iAE71,CE70,KE70,TE71..(DV,SED,WG)..LHD198108-198707

58881COVER, SHIFTING HOLE

main58843-12050-01iKE70..STD..EUR;KE70..5F..4D..GEN;TE71..4F..4D..GEN;KE70..(DV,SED,WG)..4F..(GEN,SA)197908-198204

BLACK,BLACK,TRIM0#,2#

sub58843-12050

main58843-12050-02iAE71..STD198305-198409

MAROON,RED/MAROON,TRIM3#

sub58843-12050

main58843-12050-03iAE71..STD198305-198707

GRAY,GRAY,TRIM1#

sub58843-12050

main58843-12050-04iKE70..SED..LHD..MTM..EUR197908-198108

BLUE,BLUE,TRIM8#

sub58843-12050

main58843-12050-06iKE70..LB..4F;KE70..(CP,LB)..5F;KE70..CP..LHD..4F;TE71..2D..DX..GEN;TE7#..LHD..MTM..DX..EUR197908-198108

DARK BROWN,BROWN,TRIM4#

sub58843-12050

main58843-12050-15iKE70..SED..LHD..MTM..EUR197908-198204

BEIGE,BEIGE,TRIM4#

sub58843-12050

main58843-12050-16iKE70..GEN198409-198707

BROWN,BROWN,TRIM4#

sub58843-12050

58904ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58904-22020iKE70,TE71..GL..GEN198108-198406

W/FULL CONSOLE

main58904-22020iAE71,KE70..(DX,GL)..ARL197908-198410

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12020-01iKE70,TE71..GL..GEN198108-198406

W/FULL CONSOLE,BLACK,BLACK,TRIM0#,2#

sub58905-12020

main58905-12020-01iTE7#..(GT,SE,SR,XE)..(ARL,EUR,GEN)197908-198410

BLACK,BLACK,TRIM0#,2#

sub58905-12020

main58905-12020-04iKE70,TE71..LB..DX..GEN198108-198305

W/FULL CONSOLE,BLUE,BLUE,TRIM8#

sub58905-12020

main58905-12020-04iTE72..ARL;TE71..(GT,SE,SR,XE)..(EUR,GEN)197908-198305

BLUE,BLUE,TRIM8#

sub58905-12020

main58905-12020-06iKE70..LHD..5F..4D..DX..GEN198108-198406

W/FULL CONSOLE,DARK BROWN,BROWN,TRIM4#

sub58905-12020

main58905-12020-06iTE7#..GL,GT,SE,SR,XE197908-198410

DARK BROWN,BROWN,TRIM4#

sub58905-12020

main58905-12020-15iTE7#..GL198007-198305

BEIGE,BEIGE,TRIM4#

sub58905-12020

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12010iAE71,KE70..(DX,GL)..ARL198010-198410

main58908-12010iKE70,TE71..GL..GEN198010-198406

W/FULL CONSOLE

58940CONSOLE ASSY, REAR

main58901-10010-03iAE71,CE70,KE70198508-198707

GRAY,GRAY,TRIM1#

sub58901-16070

sub58901-10010

main58901-10010-26iAE71,CE70,KE70198508-198707

BROWN,BROWN,TRIM4#

sub58901-16070

sub58901-10010

main58901-12010-01iCE70,KE70,TE7#..(DX,GL,STD,XL)..(EUR,GEN,SAA)197908-198305

BLACK,BLACK,TRIM0#,2#

sub58901-12010

main58901-12010-01iKE70..2D..ARL198305-198309

BLACK,BLACK,TRIM2#

sub58901-12010

main58901-12010-04iCE70,KE70,TE7#..(DX,GL,STD,XL)..(EUR,GEN,SAA)197908-198309

BLUE,BLUE,TRIM8#

sub58901-12010

main58901-12010-05iKE70..4D..STD..ARL197908-198305

BEIGE,BEIGE,TRIM4#

sub58901-12010

main58901-12010-16iKE70..2D..ARL197908-198309

DARK BROWN,BROWN,TRIM4#

sub58901-12010

main58901-12020-01iKE70,TE71..GL..GEN198108-198305

W/FULL CONSOLE,BLACK,BLACK,TRIM0#,2#

sub58901-12020

main58901-12020-01iKE70,TE71..LB..DX..GEN197908-198305

BLACK,BLACK,TRIM0#,2#

sub58901-12020

main58901-12020-04iKE70..(DX,GL)..ARL198108-198305

W/FULL CONSOLE,BLUE,BLUE,TRIM8#

sub58901-12020

main58901-12020-04iTE72..ARL;TE71..(GT,SE,SR,XE)..(EUR,GEN)197908-198305

BLUE,BLUE,TRIM8#

sub58901-12020

main58901-12020-06iKE70,TE71..GL..GEN198108-198305

W/FULL CONSOLE,DARK BROWN,BROWN,TRIM4#

sub58901-12020

main58901-12020-06iTE7#..GL,GT,SE,SR,XE197908-198305

DARK BROWN,BROWN,TRIM4#

sub58901-12020

main58901-12020-15iTE7#..GL198007-198305

BEIGE,BEIGE,TRIM4#

sub58901-12020

main58901-12100-02iKE70..(STD,XL)..GEN198305-198409

W/RECEPTACLE,MAROON,RED/MAROON,TRIM3#

sub58901-12010

main58901-12100-02iCE70,KE70..DX..EUR198305-198409

W/RECEPTACLE ASSY,MAROON,RED/MAROON,TRIM3#

sub58901-12010

main58901-12100-03iKE70..(STD,XL)..GEN198305-198508

W/RECEPTACLE ASSY,GRAY,GRAY,TRIM1#

sub58901-12010

main58901-12100-03iKE70..(STD,XL)..GEN198305-198508

W/RECEPTACLE,GRAY,GRAY,TRIM1#

sub58901-12010

main58901-12100-06iCE70,KE70..DX..EUR198409-198508

W/RECEPTACLE ASSY,BROWN,BROWN,TRIM4#

sub58901-12010

main58901-12100-06iCE70,KE70..DX..EUR198409-198508

W/RECEPTACLE,BROWN,BROWN,TRIM4#

sub58901-12010

main58910-12060-02iAE71..STD198309-198406

MAROON,RED/MAROON,TRIM3#

sub58901-12010

main58910-12060-02iCE70,KE70..DV..(EUR,GEN)198305-198409

W/O RECEPTACLE ASSY,MAROON,RED/MAROON,TRIM3#

sub58901-12010

main58910-12060-03iAE71..STD198309-198406

GRAY,GRAY,TRIM1#

sub58901-12010

main58910-12060-03iCE70,KE70..DV..(EUR,GEN)198305-198508

W/O RECEPTACLE ASSY,GRAY,GRAY,TRIM1#

sub58901-12010

main58910-12060-06iCE70,KE70..DV..(EUR,GEN)198409-198508

W/O RECEPTACLE ASSY,BROWN,BROWN,TRIM4#

sub58901-12010

58940DRETAINER, PARKING BRAKE HOLE COVER

main58943-10010iAE71,CE70,KE70198508-198707

main58943-12020iAE71,KE70,TE71..(DX,STD)..SA197908-198508

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-20010iTE7#..GL,GT,SE,SR,XE197908-198410

main58969-20010iKE70,TE71..GL..GEN198108-198406

W/FULL CONSOLE

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12010iKE70..(SED,WG)..LHD..DX..EUR197908-198707

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-10010iAE71,CE70,KE70198508-198707

main58997-12010iKE70..LHD..5F..4D..DX..GEN198108-198406

W/FULL CONSOLE

main58997-12010iTE7#..GL,GT,SE,SR,XE197908-198410

main58997-12020iAE71,KE70..STD..ARL197908-198508

7404

9015950082

main90159-50082

9017904003

main90179-04003

9165140616

main91651-40616

9354015012

main93540-15012

9354054012

main93540-54012

9356055016

main93560-55016

9356654512

main93566-54512

28 parts on this diagram · 4 diagrams in section
