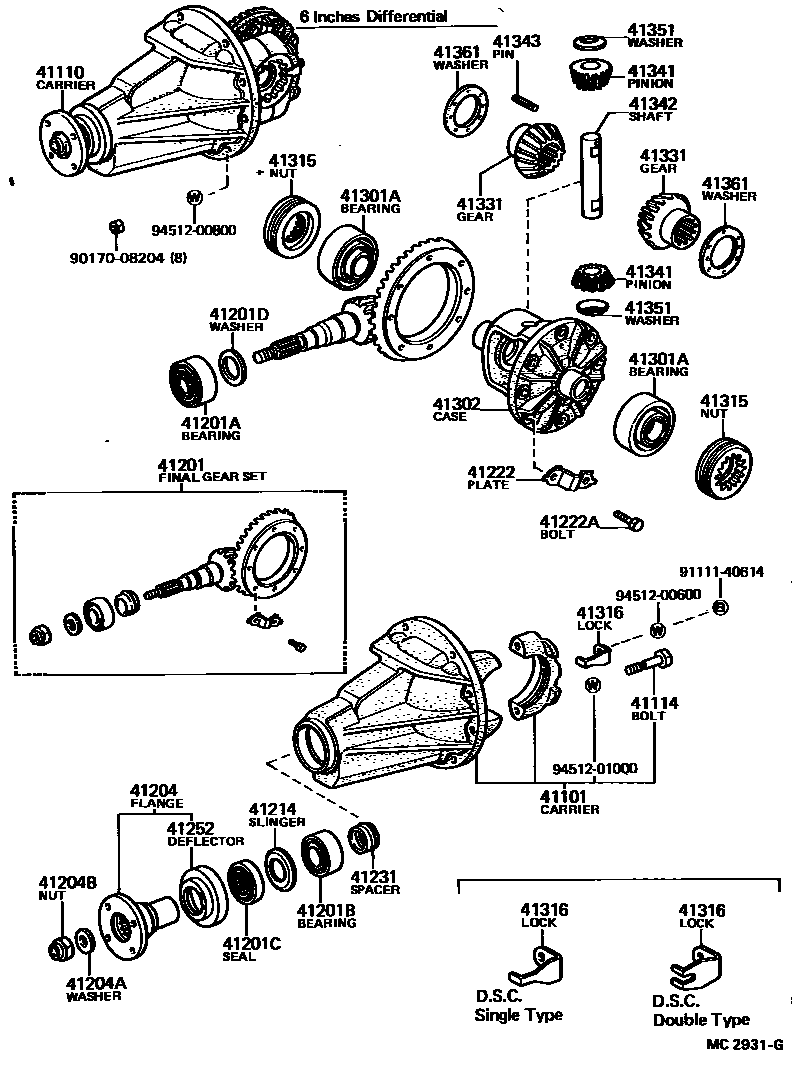

REAR AXLE HOUSING & DIFFERENTIAL
41110CARRIER ASSY, DIFFERENTIAL, REAR
*AXC=U292,*FGR=41:10
*AXC=U312,*FGR=43:11
*AXC=S312,*FGR=43:11
*AXC=S314,*FGR=43:11
*AXC=S304,*FGR=41:11
*AXC=T293,*FGR=41:10
*AXC=S294,*FGR=41:10
*AXC=T292,*FGR=41:10
*AXC=T302,*FGR=41:11
*AXC=T312,*FGR=43:11
*AXC=S292,*FGR=41:10
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*AXC=S314,*FGR=43:11
*AXC=S312,*FGR=43:11
*AXC=S312 & S314,*FGR=43:11
*FGR=41:10=4.100,*AXC=T292 & T293,*FGR=41:10
*FGR=41:11,*AXC=T302,*FGR=41:11
*FGR=43:11,*AXC=T312,*FGR=43:11
*AXC=S304,*FGR=41:11
main41201-29356iTE71..LHD..XE;TE71..SR..EUG;TE71..3FC..EUG;TE71..(3FC,5F)..(DX,SR,XE)..(GEN,SA)198108-198212
*FGR=41:9,*AXC=S292 & S294,*FGR=41:10
sub41201-29357
*AXC=S292,*FGR=41:10
main41201-29357iTE71..LHD..XE;TE71..SR..EUG;TE71..3FC..EUG;TE71..(3FC,5F)..(DX,SR,XE)..(GEN,SA)198212-198502
*AXC=S292 & S294,*FGR=41:10
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=2.33
T=2.36
T=2.39
T=2.41-2.43,T=2.42
T=2.44-2.46,T=2.45
T=2.47-2.49,T=2.48
T=2.50-2.52,T=2.51
T=2.53-2.55,T=2.54
T=2.56-2.58,T=2.57
T=2.23-2.25,T=2.24
T=2.26-2.28,T=2.27
T=2.29-2.31,T=2.3
T=2.59-2.61,T=2.6
T=2.62-2.64,T=2.63
T=2.65-2.67,T=2.66
T=2.36,MARK 05,T=2.36
T=2.39,MARK 06,T=2.39
T=2.42,MARK 07,T=2.42
T=2.43,MARK 08,T=2.45
T=2.48,MARK 09,T=2.48
T=2.51,MARK 10,T=2.51
T=2.54,MARK 11,T=2.54
T=2.57,MARK 12,T=2.57
T=2.60,MARK 13,T=2.60
T=2.63,MARK 14,T=2.63
T=2.66,MARK 15,T=2.66
T=2.69,MARK 16,T=2.69
T=2.52,T=2.52
T=2.55,T=2.55
T=2.58,T=2.58
T=2.61,T=2.61
T=2.64,T=2.64
T=2.67,T=2.67
T=2.70,T=2.70
T=2.73,T=2.73
T=2.76,T=2.76
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
SINGLE TYPE
SINGLE TYPE
DOUBLE TYPE
SINGLE TYPE
DOUBLE TYPE
DOUBLE TYPE
41331GEAR, REAR DIFFERENTIAL SIDE
W/LSD
41342SHAFT, REAR DIFFERENTIAL PINION
L=94
L=24
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50,T=1.50
T=1.55,T=1.55
T=1.60,T=1.60
T=1.65,T=1.65
T=1.70,T=1.70
T=1.75,T=1.75
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.60,T=1.60,W/LSD
T=1.65,T=1.65,W/LSD
T=1.70,T=1.70,W/LSD
T=1.75,T=1.75,W/LSD
T=1.80,T=1.80,W/LSD
T=1.85,T=1.85,W/LSD
T=1.00,MARK 02,T=1.00
T=1.10,MARK 03,T=1.10
T=1.20,MARK 04,T=1.20
T=0.95,MARK 14,T=0.95
T=1.05,MARK 15,T=1.05
T=1.15,MARK 16,T=1.15
9017008204
main90170-08204
9111140614
main91111-40614
9451200600
main94512-00600
9451200800
main94512-00800
9451201000
main94512-01000
31 parts on this diagram · 6 diagrams in section
