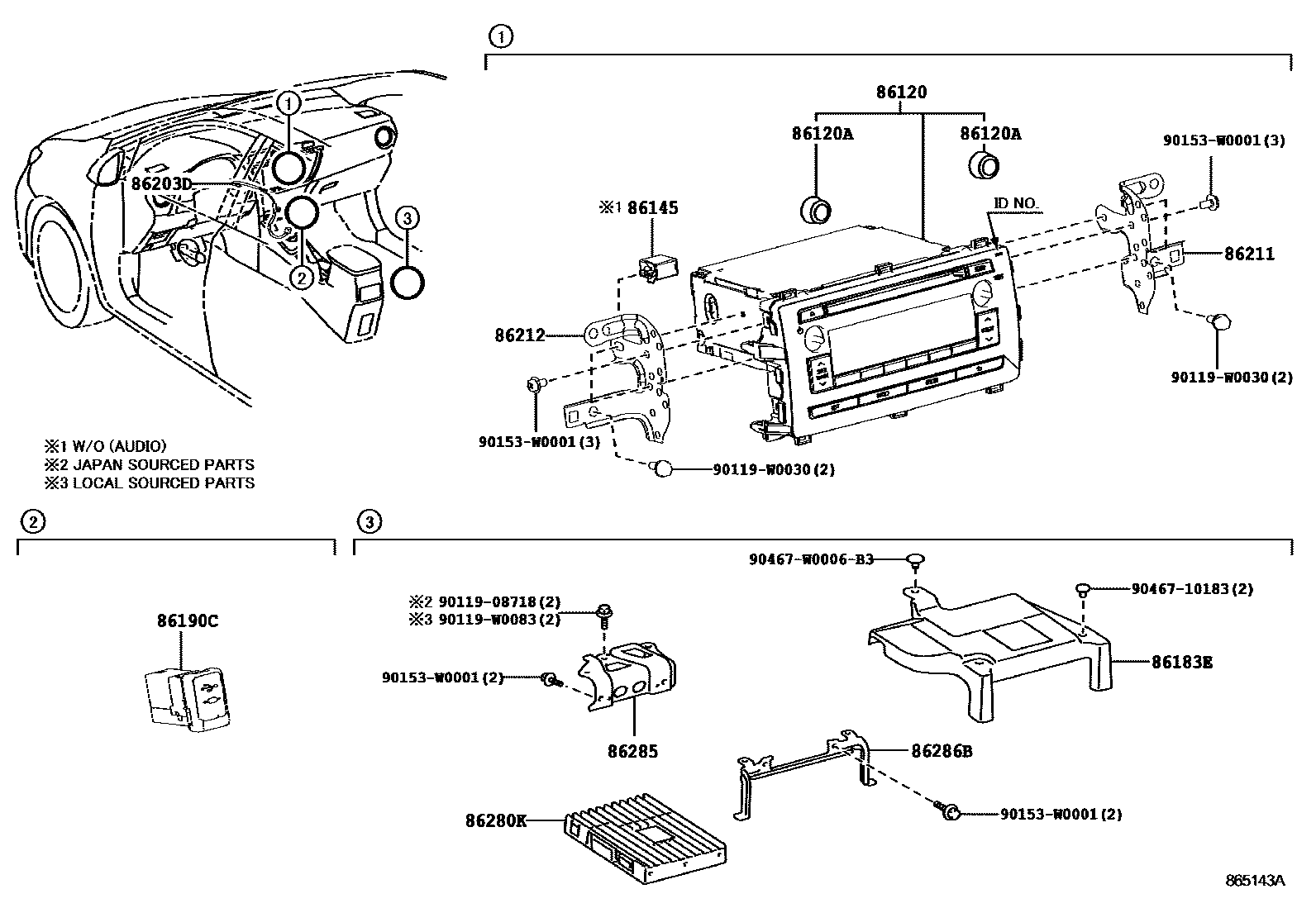

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-02880iNDE180,NRE180,ZRE185..D201210-201505

PANASONIC,ID=53876

main86120-02J60iNDE180,NRE180,ZRE185,ZWE186..D201505-201704

PANASONIC,ID=510096

sub86120-02J61

main86120-02J60iNDE180,NRE180,ZRE185,ZWE186..D201505-201704

PANASONIC,ID=510096,AUDIO-RADIO LESS & 4SPEAKER

sub86120-02J61

main86120-02J60iNDE180,NRE180,ZRE185,ZWE186..D201505-201704

PANASONIC,ID=510096,AUDIO-RADIO LESS & WITHOUT(SPEAKER)

sub86120-02J61

main86120-02J61iNDE180,NRE180,ZRE185,ZWE186..D201705

PANASONIC,ID=510319

main86120-02J61iNDE180,NRE180,ZRE185,ZWE186..D201705

PANASONIC,ID=510319,AUDIO-RADIO LESS & 4SPEAKER

main86120-02J61iNDE180,NRE180,ZRE185,ZWE186..D201705

PANASONIC,ID=510319,AUDIO-RADIO LESS & WITHOUT(SPEAKER)

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25204iNDE180,NRE180,ZRE185..D201210-201505

86145CONNECTOR, ANTENNA MALE

main86145-52010

86183ECOVER, AUDIO AMPLIFIER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0D030iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main86190-0D030iNDE180,NRE18#,WWE185,ZRE185,ZWE186..G,N,S201505

AUDIO-RADIO LESS & 6SPEAKER

main86190-0D030iNDE180,NRE18#,WWE185,ZRE185,ZWE186..G,N,S201505

AUDIO-RADIO LESS & WITHOUT(SPEAKER)

main86190-0D030iNDE180,NRE18#,WWE185,ZRE185,ZWE186..G,N,S201505

AUDIO-*DA & DAB & 6SPEAKER

86203DWIRE, STEREO COMPONENT, NO.1

main86203-02160iADE186,NDE180,NRE180,ZRE185..N201412-201505

AUDIO-RADIO LESS & 6SPEAKER

main86203-02160iADE186,NDE180,NRE180,ZRE185201412-201505

AUDIO-RADIO LESS & 4SPEAKER

main86203-02160iADE186,NDE180,NRE180,ZRE185201412-201505

AUDIO-RADIO LESS & SPEAKER LESS

main86203-02160iNDE180,NRE18#,WWE185,ZRE185..G,N,S201505

AUDIO-RADIO LESS & WITHOUT(SPEAKER)

main86203-02160iNDE180,NRE18#,WWE185,ZRE185..G,N,S201505

AUDIO-*DA & DAB & 6SPEAKER

main86203-02210iZWE186..G,N,S201505

AUDIO-*DA & DAB & 6SPEAKER

main86203-02210iZWE186..G,N,S201505

AUDIO-RADIO LESS & 6SPEAKER

main86203-02210iZWE186201412-201505

AUDIO-RADIO LESS & SPEAKER LESS

main86203-02210iZWE186..G,N,S201505

AUDIO-RADIO LESS & WITHOUT(SPEAKER)

main86203-12440iADE186,NDE180,NRE180,ZRE185..N201210-201412

AUDIO-RADIO LESS & 4SPEAKER

main86203-12440iADE186,NDE180,NRE180,ZRE185..N201210-201412

AUDIO-RADIO LESS & 6SPEAKER

main86203-12440iADE186,NDE180,NRE180,ZRE185..N201210-201412

AUDIO-RADIO LESS & SPEAKER LESS

main86203-12450iZWE186201210-201412

AUDIO-RADIO LESS & SPEAKER LESS

86211BRACKET, RADIO, NO.1

main86211-02240iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main86211-02430iNDE180,NRE18#,WWE185,ZRE185,ZWE186201505

86212BRACKET, RADIO, NO.2

main86212-02200iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main86212-02420iNDE180,NRE18#,WWE185,ZRE185,ZWE186201505

86280KAMPLIFIER ASSY, STEREO COMPONENT

86285BRACKET, AMPLIFIER, NO.1

main86285-02010

86286BBRACKET, AMPLIFIER, NO.2

9011908718

main90119-08718

90119W0030

main90119-W0030

90119W0083

main90119-W0083

90153W0001

main90153-W0001

9046710183

main90467-10183

90467W0006B3

main90467-W0006B3

17 parts on this diagram · 3 diagrams in section
