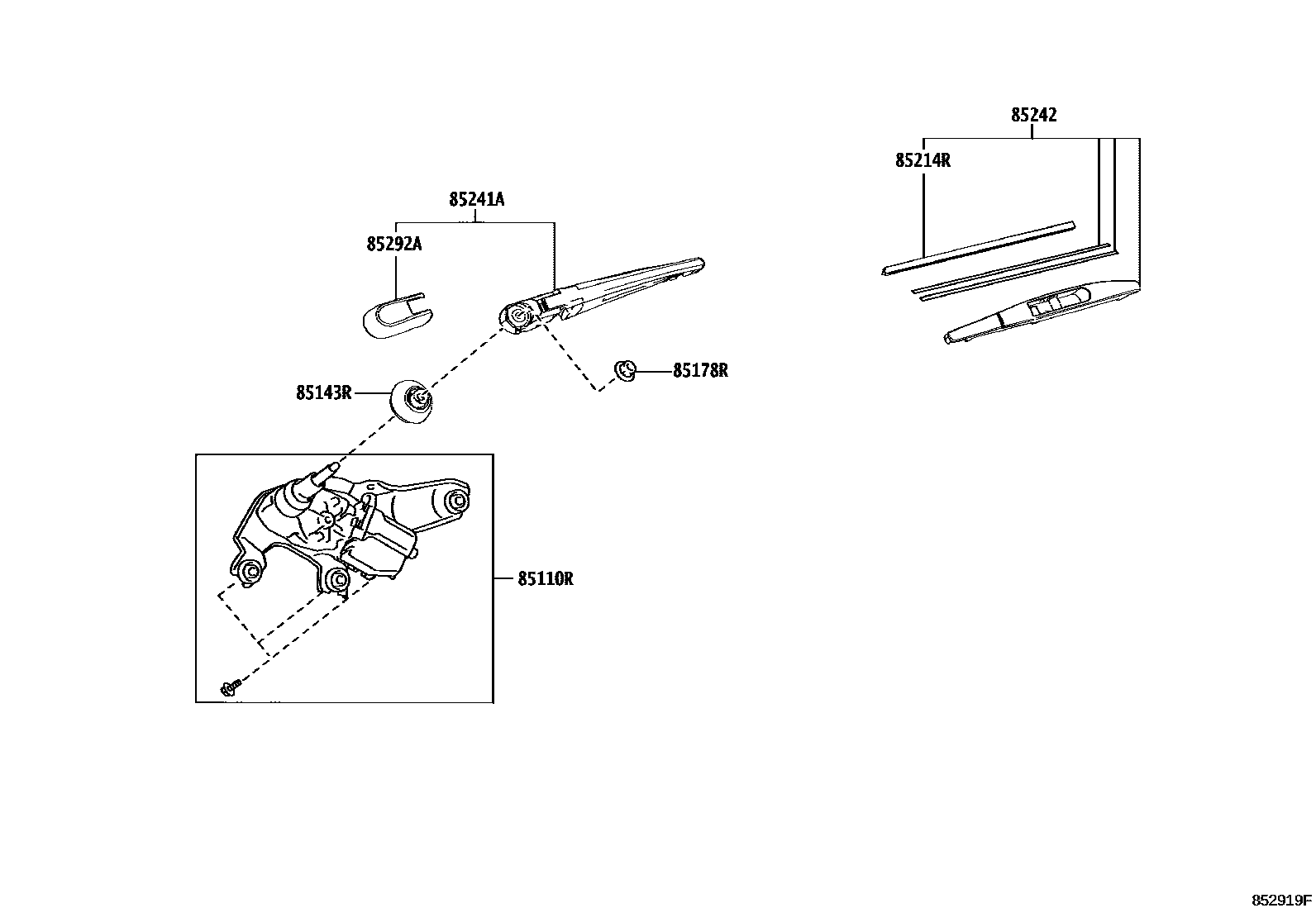

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-02050iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main85130-02050iNDE180,NRE18#,WWE185,ZRE185,ZWE186201505-201811

LIGHT GRADE

85143RGROMMET, REAR WIPER MOTOR

main85143-05070iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main85143-05070iWWE185..HB201505-201804

LIGHT GRADE

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iWWE185..HB201505-201804

LIGHT GRADE

main90179-06158iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

85214RRUBBER, REAR WIPER

main85214-42060iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505

LIGHT GRADE

main85214-42060iADE186,NDE180,NRE180,ZRE185,ZWE186..WG201306-201505

main85214-52060iNDE180,NRE18#,ZRE185,ZWE186..HB201505-201804

LIGHT GRADE

main85214-52060iADE186,NDE180,NRE180,ZRE185,ZWE186..HB201210-201505

85241AARM, REAR WIPER

main85241-02060iNDE180,NRE18#,ZRE185,ZWE186..HB201505-201804

LIGHT GRADE

main85241-02060iADE186,NDE180,NRE180,ZRE185,ZWE186..HB201210-201505

main85241-02070iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505

LIGHT GRADE

main85241-02070iADE186,NDE180,NRE180,ZRE185,ZWE186..WG201306-201505

85242BLADE, RR WIPER

main85242-02050iWWE185..HB201505-201804

LIGHT GRADE

main85242-02050iADE186,NDE180,NRE180,ZRE185,ZWE186..HB201210-201505

main85242-02060iADE186,NDE180,NRE180,ZRE185,ZWE186..WG201306-201505

main85242-02060iNDE180,NRE18#,WWE185,ZRE185,ZWE186..WG201505

LIGHT GRADE

85292ACAP, REAR WIPER ARM HEAD

main85292-0D080iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main85292-0D080iWWE185..HB201505-201804

LIGHT GRADE

7 parts on this diagram · 1 diagram in section
