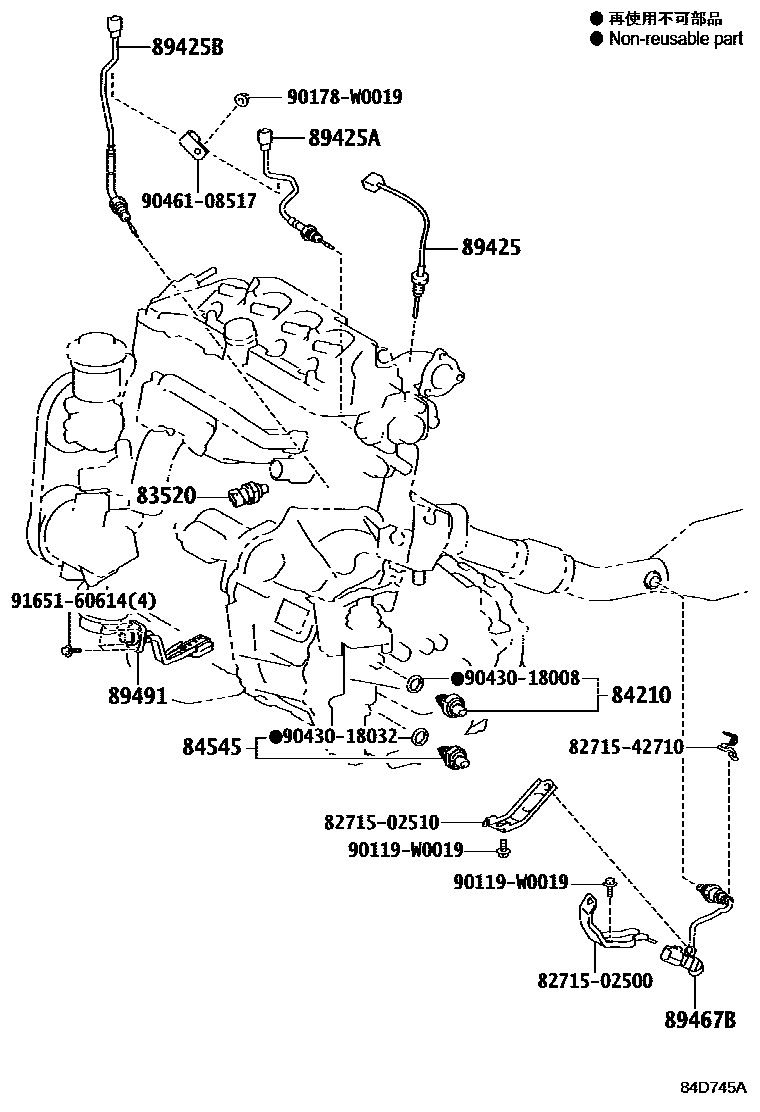

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE & TRANSMISSION 0008 1ENGINE & TRANSMISSION 0009 1ENGINE ROOM 0010 1ENGINE ROOM 0011 1ENGINE ROOM 0012 1ENGINE ROOM 0013 1ENGINE ROOM RELAY BLOCK 0014 1ENGINE ROOM RELAY BLOCK 0015 1ENGINE ROOM RELAY BLOCK 0016 1ENGINE ROOM RELAY BLOCK 0017 1COWL 0018 1COWL 0019 1COWL 0020 1INSTRUMENT PANEL 0021 1INSTRUMENT PANEL 0022 1INSTRUMENT PANEL 0023 1INSTRUMENT PANEL 0024 1STEERING 0025 1DOOR,ROOF,FLOOR & BACK DOOR 0026 1DOOR,ROOF,FLOOR & BACK DOOR

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iNDE180,NRE185201210-201505

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iADE186,NDE180,NRE180,ZRE185..MTM201210-201505

84545SWITCH, NEUTRAL POSITION

main84545-12010iNDE180..6FS201210-201505

main84545-52010iADE186201210-201505

START & STOP SYSTEM PACKAGE

main84545-52010iWWE185201505-201804

main84545-52010iNDE180..RHD..HB..D201210-201405

N1 PACKAGE&FRONT DIFFERENTIAL-FINAL GEAR RATIO = 3.944

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-02010iNDE180201505

main89425-20400iADE186201210-201505

main89425-52031iNDE180201210-201505

main89425-YV010iWWE185201505-201804

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-02020iNDE180201505

main89425-20380iADE186201210-201505

main89425-52021iNDE180201210-201505

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-20390iADE186201210-201505

89467BSENSOR, AIR FUEL RATIO

main89467-02080iNDE180201210-201505

(L)

main89467-02100iNDE180201505

main89467-12030iZRE185201210-201505

main89467-12130iNDE180201210-201505

(J)

main89467-12270iNRE185201505

main89467-20100iADE186201210-201505

main89467-52060iZRE185,ZWE186201210-201505

main89467-52110iNRE180201210-201505

main89467-YV010iWWE185201505-201804

89491SENSOR, ENGINE OIL LEVEL

main89491-12040iNRE185201505-201710

main89491-20140iADE186201210-201505

main89491-50080iNRE185201711-201805

main89491-50081iNRE185201806

main89491-52051iNDE180201210-201502

main89491-52052iNDE180201503-201505

8271502500BRACKET,WIRING HARNESS CLAMP

main82715-02500

8271502510BRACKET,WIRING HARNESS CLAMP

main82715-02510

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

90119W0019

main90119-W0019

90178W0019

main90178-W0019

9043018008

main90430-18008

9043018032

main90430-18032

9046108517

main90461-08517

9165160614

main91651-60614

17 parts on this diagram · 26 diagrams in section
