EPC Data

FRONT SEAT & SEAT TRACK

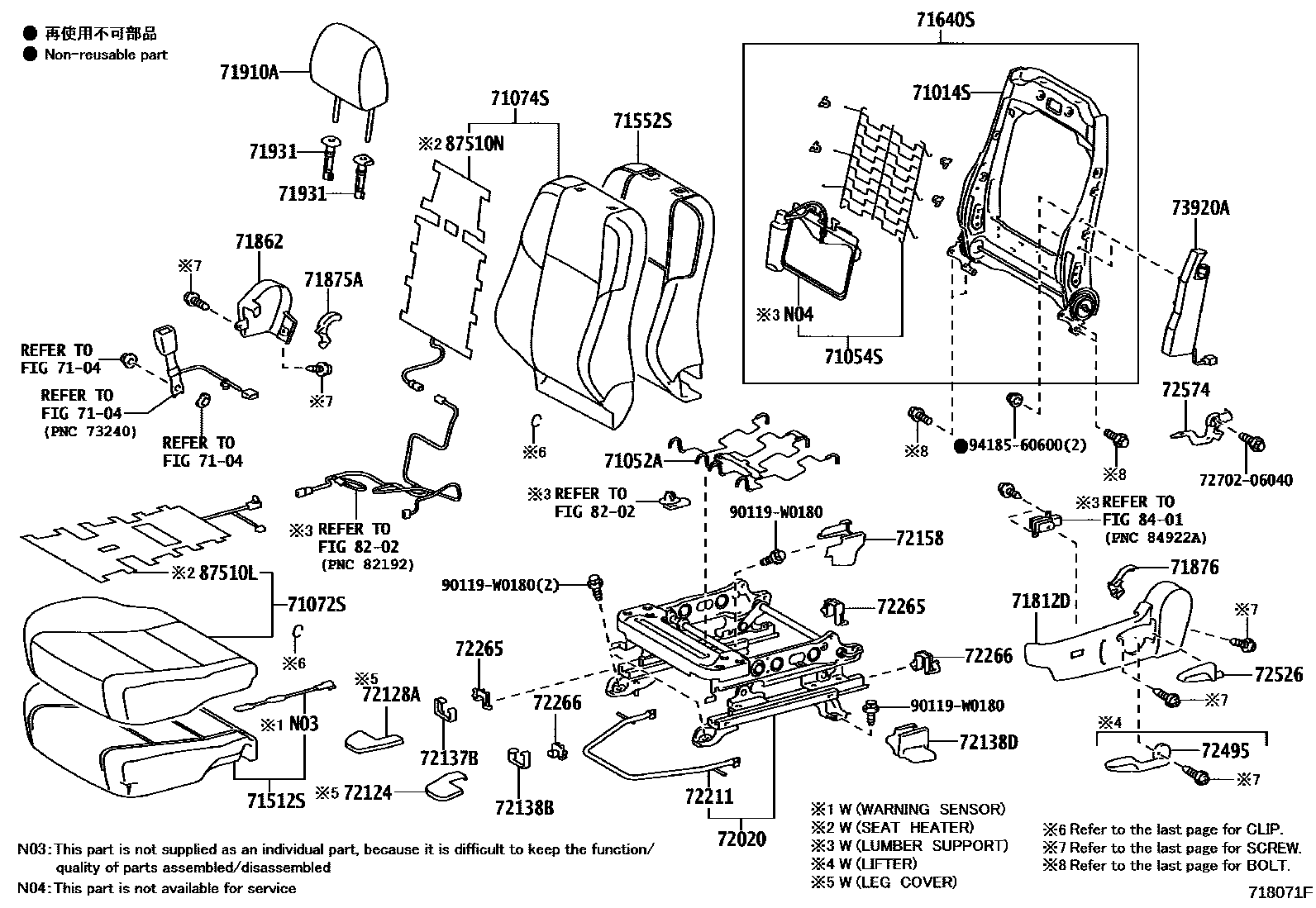

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71013-02100i201210-201811
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-02300i201210-201811
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-02080i201210-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT
main71053-02080i201505-201811
main71053-02100i201312-201811
SEAT HEATER-WITH
main71053-02100i201312-201505
SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH
main71053-02100i201312-201505
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH
main71053-02100i201312-201505
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH
main71053-02100i201312-201505
HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH
main71053-02100i201312-201505
HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH
main71053-02100i201312-201811
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE)&SEAT HEATER-WITH
main71053-02140i201210-201312
SEAT HEATER-WITH
main71053-02140i201210-201312
SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH
main71053-02140i201210-201312
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH
main71053-02140i201210-201312
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH
main71053-02140i201210-201312
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE)&SEAT HEATER-WITH
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0Z030-C2i201210-201505
BLACK,TRIM2#
main71072-0Z030-C2i201210-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
main71072-0Z030-C2i201210-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71072-0Z040-C2i201210-201505
BLACK,TRIM2#
main71072-0Z040-C2i201210-201505
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE),BLACK,TRIM2#
main71072-0Z130-C1i201210-201505
BLACK,TRIM2#
main71072-0Z130-C1i201210-201505
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71072-0Z130-C1i201210-201505
HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71072-0Z210-B0i201505-201811
GRAY,TRIM2#
main71072-0Z220-B0i201505-201811
GRAY,TRIM2#
main71072-0ZB30-C1i201505-201811
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE),BLACK,TRIM2#
main71072-0ZB30-C1i201505-201811
BLACK,TRIM2#
main71072-0ZB50-B2i201505-201604
GRAY,TRIM2#
main71072-0ZB50-E2i201505-201604
TERRACOTTA,TRIM4#
main71072-0ZB51-B2i201605-201811
GREY,TRIM2#
main71072-0ZB51-E2i201605-201811
TERRACOTTA,TRIM4#
main71072-0ZB60-B1i201505-201607
BLACK,TRIM2#
main71072-0ZB60-B2i201607-201811
BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0Z780-C2i201210-201412
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-0Z780-C2i201210-201412
BLACK,TRIM2#
main71074-0Z780-C2i201210-201412
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
main71074-0Z781-C2i201501-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71074-0Z781-C2i201501-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
main71074-0Z781-C2i201501-201505
BLACK,TRIM2#
main71074-0Z790-C2i201210-201412
BLACK,TRIM2#
main71074-0Z790-C2i201210-201412
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE),BLACK,TRIM2#
main71074-0Z791-C2i201501-201505
BLACK,TRIM2#
main71074-0Z791-C2i201501-201505
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE),BLACK,TRIM2#
main71074-0Z810-C2i201210-201412
BLACK,TRIM2#
main71074-0Z810-C2i201210-201412
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71074-0Z810-C2i201210-201412
HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71074-0Z811-C2i201501-201505
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71074-0Z811-C2i201501-201505
BLACK,TRIM2#
main71074-0Z811-C2i201501-201505
HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71074-0Z850-B0i201505-201711
GRAY,TRIM2#,W(ZIPPER)
main71074-0ZK30-C1i201505-201712
BLACK,TRIM2#,W(ZIPPER)
main71074-0ZK50-B2i201505-201801
GRAY,TRIM2#,W(ZIPPER)
main71074-0ZK50-E2i201505-201801
TERRACOTTA,TRIM4#,W(ZIPPER)
main71074-0ZK60-B2i201505-201607
BLACK,TRIM2#,W(ZIPPER)
main71074-0ZK60-B3i201607-201711
BLACK,TRIM2#,W(ZIPPER)
main71074-0ZL30-C0i201505-201712
BLACK,TRIM2#,W(ZIPPER)
main71074-0ZL30-C0i201505-201712
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE),BLACK,TRIM2#,W(ZIPPER)
main71074-0ZY60-B0i201711-201811
GREY,TRIM2#,W/O(ZIPPER)
main71074-0ZY70-C0i201712-201811
BLACK,TRIM2#,W/O(ZIPPER)
main71074-0ZY90-B0i201801-201811
GREY,TRIM2#,W/O(ZIPPER)
main71074-0ZY90-E0i201801-201811
TERRACOTTA,TRIM4#,W/O(ZIPPER)
main71074-0ZZ00-B0i201711-201811
BLACK,TRIM2#,W/O(ZIPPER)
main71074-0ZZ30-C0i201712-201811
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE),BLACK,TRIM2#,W/O(ZIPPER)
main71074-0ZZ30-C0i201712-201811
BLACK,TRIM2#,W/O(ZIPPER)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71501-02110i201210-201601
main71501-02111i201409-201811
main71501-02120i201505-201601
main71501-02121i201601-201811
main71512-02390i201210-201811
main71512-02420i201505-201811
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-02630i201210-201811
main71552-02650i201505-201811
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-02620i201210-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT
main71630-02620i201505-201811
main71640-02560i201210-201505
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH
main71640-02560i201210-201505
SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH
main71640-02560i201210-201505
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH
main71640-02560i201210-201811
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE)&SEAT HEATER-WITH
main71640-02560i201210-201811
SEAT HEATER-WITH
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-02480-C0i201210-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
main71812-02480-C0i201210-201505
BLACK,TRIM2#
main71812-02480-C0i201210-201505
LIGHT GRADE,BLACK,TRIM2#
main71812-02480-C0i201210-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2#
main71812-02480-C0i201210-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71812-02480-C1i201505-201811
EU BLACK,TRIM2#
main71812-02490-C0i201210-201505
BLACK,TRIM1#,2#
main71812-02490-C0i201210-201505
BLACK,TRIM2#
main71812-02490-C1i201505-201811
EU BLACK,TRIM2#,4#
main71812-02490-C1i201505-201811
EU BLACK,TRIM2#
main71812-02500-C0i201210-201505
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH,BLACK,TRIM2#
main71812-02500-C0i201210-201505
BLACK,TRIM1#,2#
main71812-02500-C0i201210-201505
SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71812-02500-C0i201210-201505
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71812-02500-C0i201210-201505
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71812-02500-C0i201210-201505
SEAT HEATER-WITH,BLACK,TRIM2#
main71812-02500-C1i201505-201811
EU BLACK,TRIM2#,4#
main71812-02500-C1i201505-201811
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE)&SEAT HEATER-WITH,EU BLACK,TRIM2#
main71812-02500-C1i201505-201811
SEAT HEATER-WITH,EU BLACK,TRIM2#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-02190-C0i201210-201505
LIGHT GRADE,BLACK,TRIM2#
main71862-02190-C0i201210-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM1#,2#
main71862-02190-C0i201210-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71862-02190-C0i201210-201505
BLACK,TRIM2#
main71862-02190-C0i201210-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
main71862-02190-C1i201505-201811
EU BLACK,TRIM2#
main71862-02200-C0i201210-201505
BLACK,TRIM1#,2#
main71862-02200-C0i201210-201505
BLACK,TRIM2#
main71862-02200-C1i201505-201811
EU BLACK,TRIM2#,4#
main71862-02200-C1i201505-201811
EU BLACK,TRIM2#
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-02170-C0i201210-201505
BLACK,TRIM1#,2#
main71875-02170-C0i201210-201505
BLACK,TRIM2#
main71875-02170-C1i201505-201811
EU BLACK,TRIM2#
main71875-02170-C1i201505-201811
EU BLACK,TRIM2#,4#
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-02170-C0i201210-201505
BLACK,TRIM1#,2#
main71876-02170-C0i201210-201505
BLACK,TRIM2#
main71876-02170-C1i201505-201811
EU BLACK,TRIM2#,4#
main71876-02170-C1i201505-201811
EU BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
main71910-02G00-C2i201505-201811
BLACK,TRIM2#
main71910-02G60-C1i201210-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT,BLACK,TRIM2#
main71910-02G60-C1i201210-201505
LIGHT GRADE,BLACK,TRIM2#
main71910-02G60-C1i201210-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
main71910-02G60-C1i201210-201505
BLACK,TRIM2#
main71910-02G70-C0i201210-201505
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE),BLACK,TRIM2#
main71910-02G70-C0i201210-201505
BLACK,TRIM2#
main71910-02G70-C0i201210-201505
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71910-02G80-C5i201210-201307
HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71910-02G80-C5i201210-201307
BLACK,TRIM2#
main71910-02G80-C5i201210-201307
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71910-02G80-C6i201307-201311
HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71910-02G80-C6i201307-201311
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71910-02G80-C6i201307-201311
BLACK,TRIM2#
main71910-02G81-C6i201311-201505
HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71910-02G81-C6i201311-201505
BLACK,TRIM2#
main71910-02G81-C6i201311-201505
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71910-02N50-C0i201210-201505
BLACK,TRIM2#
main71910-02N60-C0i201210-201505
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE)&SEAT HEATER-WITH,BLACK,TRIM2#
main71910-02N60-C0i201210-201505
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE),BLACK,TRIM2#
main71910-02N60-C0i201210-201505
BLACK,TRIM2#
main71910-02Q10-B1i201505-201811
GRAY,TRIM2#
main71910-02Q10-B1i201505-201811
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE)&SEAT HEATER-WITH,GRAY,TRIM2#
main71910-02Q10-B1i201505-201811
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE),GRAY,TRIM2#
main71910-02Q20-C2i201505-201811
EU BLACK/GRAY,TRIM2#
main71910-02Q20-C3i201505-201811
EU BLACK/COPPER,TRIM4#
main71910-02Q30-B0i201607-201811
BLACK,TRIM2#
main71910-02Q30-J0i201505-201607
NAVY,TRIM2#
main71910-02Q50-C1i201505-201811
BLACK,TRIM2#
main71910-02Q60-B1i201505-201811
GRAY,TRIM2#
main71910-02Q60-B1i201505-201811
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE),GRAY,TRIM2#
main71910-02Q60-B1i201505-201811
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE)&SEAT HEATER-WITH,GRAY,TRIM2#
main71910-02Q70-C2i201505-201811
EU BLACK/GRAY,TRIM2#
main71910-02Q70-C3i201505-201811
EU BLACK/COPPER,TRIM4#
main71910-02Q80-B0i201607-201811
BLACK,TRIM2#
main71910-02Q80-J0i201505-201607
NAVY,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-02330-C4i201210-201505
W(LOCK),BLACK,TRIM1#,2#
main71930-02330-C4i201210-201505
W(LOCK),BLACK,TRIM2#
main71930-02330-C5i201505-201811
W(LOCK),EU BLACK,TRIM2#,4#
main71930-02330-C5i201505-201811
W(LOCK),EU BLACK,TRIM2#
main71931-02150-C0i201210-201505
W/O(LOCK),BLACK,TRIM1#,2#
main71931-02150-C0i201210-201505
W/O(LOCK),BLACK,TRIM2#
main71931-02150-C1i201505-201811
W/O(LOCK),EU BLACK,TRIM2#
main71931-02150-C1i201505-201811
W/O(LOCK),EU BLACK,TRIM2#,4#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-02440i201210-201811
main72020-02450i201210-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)
main72020-02450i201210-201505
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT
main72020-02450i201210-201505
LIGHT GRADE
main72020-02450i201505-201811
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-02070
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
72137BCOVER, SEAT TRACK, RH
main72138-02210-C0i201210-201505
BLACK,TRIM2#
main72138-02210-C0i201210-201505
BLACK,TRIM1#,2#
main72138-02210-C1i201505-201811
EU BLACK,TRIM2#,4#
main72138-02210-C1i201505-201811
EU BLACK,TRIM2#
72138BCOVER, SEAT TRACK, LH
main72137-02260-C0i201210-201505
BLACK,TRIM1#,2#
main72137-02260-C0i201210-201505
BLACK,TRIM2#
main72137-02260-C1i201505-201811
EU BLACK,TRIM2#
main72137-02260-C1i201505-201811
EU BLACK,TRIM2#,4#
72138DCOVER, SEAT TRACK, OUTER, LH
main72138-02190-C0i201210-201505
BLACK,TRIM1#,2#
main72138-02190-C0i201210-201505
BLACK,TRIM2#
main72138-02190-C1i201505-201804
EU BLACK,TRIM2#
main72138-02190-C1i201505-201804
EU BLACK,TRIM2#,4#
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-02190-C0i201210-201505
BLACK,TRIM2#
main72158-02190-C0i201210-201505
BLACK,TRIM1#,2#
main72158-02190-C1i201505-201804
EU BLACK,TRIM2#
main72158-02190-C1i201505-201804
EU BLACK,TRIM2#,4#
72211HANDLE, SEAT TRACK ADJUSTING
main72211-02110i201210-201505
main72211-02110i201505-201811
LIGHT GRADE
main72211-02110i201505-201811
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)
main72211-02110i201505-201811
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)&SEAT HEATER-WITHOUT
72265COVER, SEAT TRACK UPPER RAIL, RH
main72265-02060-C0i201210-201505
BLACK,TRIM2#,REAR
main72265-02060-C0i201210-201505
BLACK,TRIM1#,2#,REAR
main72265-02060-C1i201505-201811
EU BLACK,TRIM2#,4#,REAR
main72265-02060-C1i201505-201811
EU BLACK,TRIM2#,REAR
main72265-02070-C0i201210-201505
BLACK,TRIM1#,2#,FRONT
main72265-02070-C0i201210-201505
BLACK,TRIM2#,FRONT
main72265-02070-C1i201505-201811
EU BLACK,TRIM2#,FRONT
main72265-02070-C1i201505-201811
EU BLACK,TRIM2#,4#,FRONT
72266COVER, SEAT TRACK UPPER RAIL, LH
main72265-02060-C0i201210-201505
BLACK,TRIM1#,2#,FRONT
main72265-02060-C0i201210-201505
BLACK,TRIM2#,FRONT
main72265-02060-C1i201505-201811
EU BLACK,TRIM2#,FRONT
main72265-02060-C1i201505-201811
EU BLACK,TRIM2#,4#,FRONT
main72265-02070-C0i201210-201505
BLACK,TRIM2#,REAR
main72265-02070-C0i201210-201505
BLACK,TRIM1#,2#,REAR
main72265-02070-C1i201505-201811
EU BLACK,TRIM2#,4#,REAR
main72265-02070-C1i201505-201811
EU BLACK,TRIM2#,REAR
72495HANDLE, VERTICAL ADJUSTING, LH
main72495-02030-C0i201210-201505
BLACK,TRIM1#,2#
main72495-02030-C0i201210-201505
BLACK,TRIM2#
main72495-02030-C1i201505-201811
EU BLACK,TRIM2#,4#
main72495-02030-C1i201505-201811
EU BLACK,TRIM2#
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-02170-C0i201210-201505
BLACK,TRIM1#,2#
main72526-02170-C0i201210-201505
BLACK,TRIM2#
main72526-02170-C1i201505-201811
EU BLACK,TRIM2#
main72526-02170-C1i201505-201811
EU BLACK,TRIM2#,4#
72574LEVER, RECLINING CONTROL, LH
main72574-06010i201210-201811
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-02090i201210-201811
8202WIRING & CLAMP
→ Go to FIG 82-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-02160i201210-201604
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE)&SEAT HEATER-WITH
main87510-02160i201210-201604
SEAT HEATER-WITH
main87510-02160i201210-201505
SPORT PACKAGE&SEAT COVER MATERIAL-FABLIC(SPORT GRADE)&SEAT HEATER-WITH
main87510-02160i201210-201505
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH
main87510-02160i201210-201505
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH
main87510-02160i201210-201505
HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH
main87510-02160i201210-201505
HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH
main87510-02161i201605-201811
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE)&SEAT HEATER-WITH
main87510-02161i201605-201811
SEAT HEATER-WITH
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-02010i201210-201505
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH
main87530-02010i201210-201505
HIGH GRADE&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH
main87530-02010i201210-201505
HIGH GRADE&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH
main87530-02010i201210-201505
SEAT COVER MATERIAL-FABLIC(MIDDLE GRADE)&SEAT HEATER-WITH
main87530-02010i201210-201505
SEAT HEATER-WITH
main87530-02010i201210-201505
HIGH GRADE&WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR)&SEAT COVER MATERIAL-FABLIC(HIGH GRADE)&SEAT HEATER-WITH
main87530-02020i201505-201811
SEAT HEATER-WITH
7270206040BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-06040
90119W0180
main90119-W0180
9418560600
main94185-60600

36 parts on this diagram · 3 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
