FRONT DOOR LOCK & HANDLE

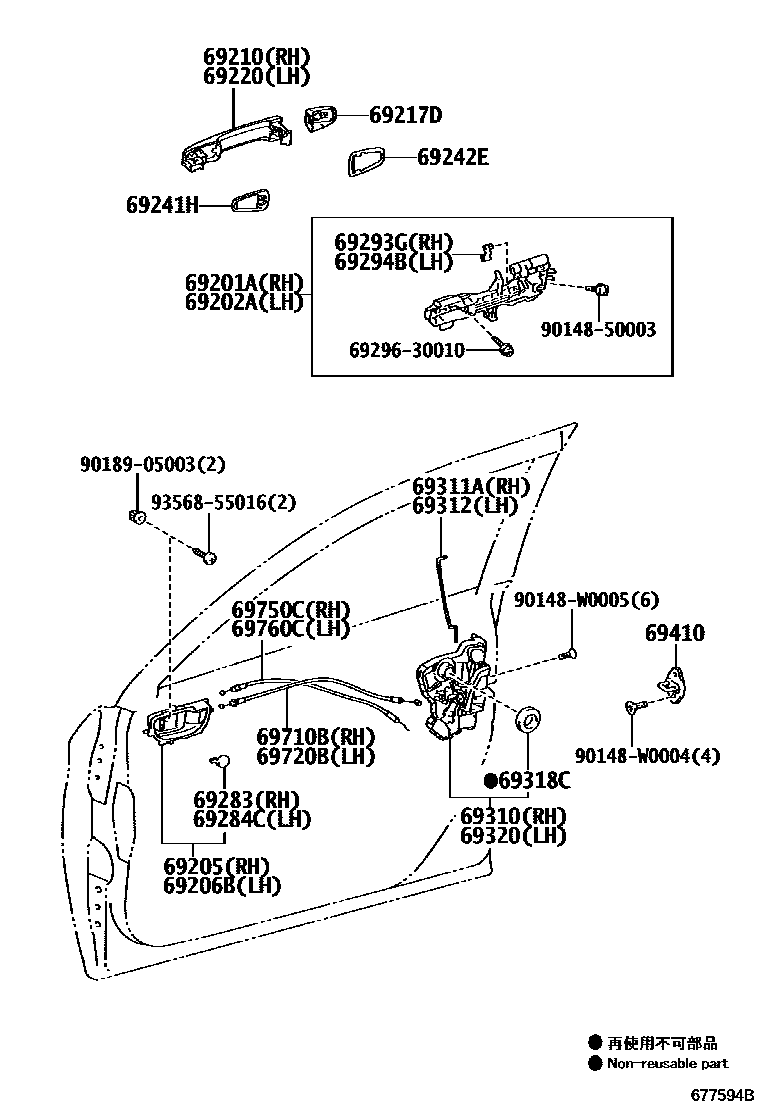

Parts diagram
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-02180i201210-201804
main69201-02220i201210-201804
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-02160i201210-201804
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-02330-C0i201210-201505
BLACK,TRIM2#
main69205-02330-C0i201210-201505
BLACK,TRIM1#,2#
main69205-02330-C2i201505
EU BLACK,TRIM2#
main69205-02330-C2i201505
EU BLACK,TRIM2#,4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-02300-C0i201210-201505
BLACK,TRIM1#,2#
main69206-02300-C0i201210-201505
BLACK,TRIM2#
main69206-02300-C2i201505
EU BLACK,TRIM2#,4#
main69206-02300-C2i201505
EU BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-0D170-A1i201210-201505
SUPER WHITE 2,040
main69210-0D170-A1i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),SUPER WHITE 2,040
main69210-0D170-A1i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),SUPER WHITE 2,040
main69210-0D170-A2i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),WHITE PEARL CS.,070 ,2KR
main69210-0D170-A2i201210-201505
WHITE PEARL CS.,070
main69210-0D170-A2i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),WHITE PEARL CS.,070
main69210-0D170-A2i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),WHITE PEARL CS.,070
main69210-0D170-B1i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),SILVER ME.,1F7
main69210-0D170-B1i201210-201505
SILVER ME.,1F7
main69210-0D170-B1i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),SILVER ME.,1F7
main69210-0D170-B2i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),GRAY ME.,1G6
main69210-0D170-B2i201210-201505
GRAY ME.,1G6
main69210-0D170-B2i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),GRAY ME.,1G6 ,2QT
main69210-0D170-B2i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),GRAY ME.,1G6
main69210-0D170-B3i201505-201710
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),DK. STEEL MC.,1H2
main69210-0D170-B3i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),DK. STEEL MC.,1H2
main69210-0D170-B3i201210-201710
DK. STEEL MC.,1H2
main69210-0D170-B4i201604
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),GRAY ME.,1G2
main69210-0D170-B4i201604
GRAY ME.,1G2
main69210-0D170-B5i201710
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),CEMENT GRAY ME.,1H5 ,2QS
main69210-0D170-B5i201710
CEMENT GRAY ME.,1H5
main69210-0D170-B5i201710
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),CEMENT GRAY ME.,1H5
main69210-0D170-C0i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),BLACK MC.,209
main69210-0D170-C0i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),BLACK MC.,209
main69210-0D170-C0i201210-201505
BLACK MC.,209
main69210-0D170-D1i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),RED M.M.,3R3
main69210-0D170-D1i201210-201610
RED M.M.,3R3
main69210-0D170-D1i201505-201610
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),RED M.M.,3R3
main69210-0D170-D4i201610
RED MC.,3T3
main69210-0D170-D4i201610
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),RED MC.,3T3
main69210-0D170-D4i201610
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),RED MC.,2PN ,3T3
main69210-0D170-E0i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),AVANT-GARDE BRONZE ME.,4V8
main69210-0D170-E0i201210-201604
AVANT-GARDE BRONZE ME.,4V8
main69210-0D170-E0i201505-201604
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),AVANT-GARDE BRONZE ME.,4V8
main69210-0D170-J1i201210-201505
BLUE ME.,8N0
main69210-0D170-J1i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),BLUE ME.,8N0
main69210-0D170-J2i201210-201505
BLUE ME.,8T7
main69210-0D170-J2i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),BLUE ME.,8T7
main69210-0D170-J3i201604
DK.BLUE,8Q4
main69210-0D170-J3i201604
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),DK.BLUE,8Q4
main69210-0D170-J7i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),DK.BLUE MC.,8T5
main69210-0D170-J7i201505
DK.BLUE MC.,8T5
main69210-0D170-J8i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),BLUE ME.,8U6
main69210-0D170-J8i201505
BLUE ME.,8U6
main69211-02924i201505
PAINT REQ.,SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER)
main69211-02924i201210-201505
PAINT REQ.
main69211-02924i201505
PAINT REQ.,SMART ENTRY-WITHOUT(PUSH START BUTTON ONLY)
main69211-02924i201210-201505
PAINT REQ.,WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-02940i201210-201804
LESS COLOR,DRIVER SIDE
main69217-02941i201210-201804
LESS COLOR,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-0D170-A1i201210-201505
SUPER WHITE 2,040
main69210-0D170-A1i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),SUPER WHITE 2,040
main69210-0D170-A1i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),SUPER WHITE 2,040
main69210-0D170-A2i201210-201505
WHITE PEARL CS.,070
main69210-0D170-A2i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),WHITE PEARL CS.,070
main69210-0D170-A2i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),WHITE PEARL CS.,070 ,2KR
main69210-0D170-A2i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),WHITE PEARL CS.,070
main69210-0D170-B1i201210-201505
SILVER ME.,1F7
main69210-0D170-B1i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),SILVER ME.,1F7
main69210-0D170-B1i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),SILVER ME.,1F7
main69210-0D170-B2i201210-201505
GRAY ME.,1G6
main69210-0D170-B2i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),GRAY ME.,1G6
main69210-0D170-B2i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),GRAY ME.,1G6
main69210-0D170-B2i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),GRAY ME.,1G6 ,2QT
main69210-0D170-B3i201505-201710
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),DK. STEEL MC.,1H2
main69210-0D170-B3i201210-201710
DK. STEEL MC.,1H2
main69210-0D170-B3i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),DK. STEEL MC.,1H2
main69210-0D170-B4i201604
GRAY ME.,1G2
main69210-0D170-B4i201604
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),GRAY ME.,1G2
main69210-0D170-B5i201710
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),CEMENT GRAY ME.,1H5
main69210-0D170-B5i201710
CEMENT GRAY ME.,1H5
main69210-0D170-B5i201710
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),CEMENT GRAY ME.,1H5 ,2QS
main69210-0D170-C0i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),BLACK MC.,209
main69210-0D170-C0i201210-201505
BLACK MC.,209
main69210-0D170-C0i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),BLACK MC.,209
main69210-0D170-D1i201210-201610
RED M.M.,3R3
main69210-0D170-D1i201505-201610
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),RED M.M.,3R3
main69210-0D170-D1i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),RED M.M.,3R3
main69210-0D170-D4i201610
RED MC.,3T3
main69210-0D170-D4i201610
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),RED MC.,2PN ,3T3
main69210-0D170-D4i201610
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),RED MC.,3T3
main69210-0D170-E0i201210-201604
AVANT-GARDE BRONZE ME.,4V8
main69210-0D170-E0i201505-201604
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),AVANT-GARDE BRONZE ME.,4V8
main69210-0D170-E0i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),AVANT-GARDE BRONZE ME.,4V8
main69210-0D170-J1i201210-201505
BLUE ME.,8N0
main69210-0D170-J1i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),BLUE ME.,8N0
main69210-0D170-J2i201210-201505
WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),BLUE ME.,8T7
main69210-0D170-J2i201210-201505
BLUE ME.,8T7
main69210-0D170-J3i201604
DK.BLUE,8Q4
main69210-0D170-J3i201604
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),DK.BLUE,8Q4
main69210-0D170-J7i201505
DK.BLUE MC.,8T5
main69210-0D170-J7i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),DK.BLUE MC.,8T5
main69210-0D170-J8i201505
SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),BLUE ME.,8U6
main69210-0D170-J8i201505
BLUE ME.,8U6
main69211-02924i201505
PAINT REQ.,SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER)
main69211-02924i201210-201505
PAINT REQ.
main69211-02924i201505
PAINT REQ.,SMART ENTRY-WITHOUT(PUSH START BUTTON ONLY)
main69211-02924i201210-201505
PAINT REQ.,WIRELESS DOOR LOCK-WITHOUT(SMART ENTRY)
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-02090i201210-201505
main69241-02240i201505-201804
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-02080i201210-201505
main69242-02230i201505-201804
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-0D010-C2i201210-201505
EU BLACK,TRIM1#,2#
main69283-0D010-C2i201505
EU BLACK,TRIM2#
main69283-0D010-C2i201505
EU BLACK,TRIM2#,4#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69283-0D010-C2i201210-201505
EU BLACK,TRIM1#,2#
main69283-0D010-C2i201505
EU BLACK,TRIM2#
main69283-0D010-C2i201505
EU BLACK,TRIM2#,4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i201210-201804
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i201210-201804
69310LOCK ASSY, FRONT DOOR, RH
main69030-02250i201210-201804
main69030-05130i201210-201502
main69030-05131i201502-201804
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-02190i201210-201804
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-02190i201210-201804
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i201210-201804
69320LOCK ASSY, FRONT DOOR, LH
main69040-02210i201210-201502
main69040-02211i201502-201804
main69040-05150i201210-201804
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-20110i201210-201804
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-02220i201210-201804
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-02220i201210-201804
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-02250i201210-201804
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-02250i201210-201804
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
90148W0004
main90148-W0004
90148W0005
main90148-W0005
9018905003
main90189-05003
9356855016
main93568-55016

29 parts on this diagram · 1 diagram in section
