DECK BOARD & DECK TRIM COVER
58219ECOVER, BATTERY BOX
LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM1#,2#
SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F&DECK BOARD-WITH(ADJUSTABLE DECK BOARD)&AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER,BLACK,TRIM1#,2#
SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P G,BLACK,TRIM1#,2#
SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P G&DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
LIGHT GRADE&DECK BOARD-WITHOUT,BLACK,TRIM2#
EU BLACK,TRIM2#,4#
EU BLACK,TRIM2#
58331HBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58332KBRACKET, LUGGAGE COMPARTMENT TRIM, NO.2
58410BBOARD ASSY, DECK
58415DBRACKET, DECK BOARD SUPPORT
58418BRACKET, DECK BOARD, NO.1
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33020iZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180,ZWE186..G,N201210-201804
58460JSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33020iZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180,ZWE186..G,N201210-201505
LIGHT GRADE
LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER)
58570AMAT ASSY, REAR FLOOR
BLACK,TRIM1#,2#
BLACK,TRIM2#
LIGHT GRADE&SPARE TIRE-WITHOUT&DECK BOARD-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2#
LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2#
LIGHT GRADE&DECK BOARD-WITHOUT,BLACK,TRIM2#
LIGHT GRADE&DECK BOARD-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2#
LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2#
LIGHT GRADE&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM1#,2#
SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F&DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#
SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F&DECK BOARD-WITH(ADJUSTABLE DECK BOARD)&AUDIO-W(*NS(*HGE))&*BT&USB&DAB&JBL&6SPEAKER,BLACK,TRIM1#,2#
SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P G,BLACK,TRIM1#,2#
SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P G&DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#
BLACK,TRIM2#,4#
LIGHT GRADE&SPARE TIRE-WITHOUT&DECK BOARD-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER),BLACK,TRIM2#
LIGHT GRADE&SPARE TIRE-WITHOUT&DECK BOARD-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER),BLACK,TRIM2#,4#
LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER),BLACK,TRIM2#
BLACK,TRIM2#
DECK BOARD-WITHOUT,BLACK,TRIM2#
DECK BOARD-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2#
LIGHT GRADE&SPARE TIRE-WITHOUT&DECK BOARD-WITHOUT,BLACK,TRIM2#
BLACK,TRIM1#,2#
LIGHT GRADE&SPARE TIRE-WITHOUT&DECK BOARD-WITHOUT&AUDIO-RADIO LESS & SPEAKER LESS,BLACK,TRIM2#
BLACK,TRIM2#,4#
LIGHT GRADE&SPARE TIRE-WITHOUT&DECK BOARD-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER),BLACK,TRIM2#
LIGHT GRADE&SPARE TIRE-WITHOUT&DECK BOARD-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER),BLACK,TRIM2#,4#
61624GBRACKET, DECK SIDE TRIM UPPER, RH
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
LIGHT GRADE
64330DPANEL ASSY, PACKAGE TRAY TRIM
LIGHT GRADE,BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
LIGHT GRADE,BLACK,TRIM2#,4#
64342ACLIP
LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER),EU BLACK,TRIM2#
sub90467-W0006
64376SPACER, PACKAGE TRAY TRIM, NO.2
LIGHT GRADE
64714ECLIP(FOR DECK TRIM SIDE COVER)
64716DCOVER, DECK TRIM, REAR
HIGH GRADE,BLACK,TRIM2#
sub58387-02190
BLACK,TRIM1#,2#
sub58387-02190
LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER),EU BLACK,TRIM2#
sub58387-02190
LIGHT GRADE,EU BLACK,TRIM2#,4#
sub58387-02190
LIGHT GRADE,EU BLACK,TRIM2#
sub58387-02190
LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER),EU BLACK,TRIM2#,4#
sub58387-02190
BLACK,TRIM1#,2#
sub64716-02120
LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER),EU BLACK,TRIM2#
sub64716-02120
LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER),EU BLACK,TRIM2#,4#
sub64716-02120
BLACK,TRIM2#
sub64716-02140
LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER),EU BLACK,TRIM2#
sub64716-02140
LIGHT GRADE,EU BLACK,TRIM2#
sub64716-02140
64716ECLIP(FOR DECK TRIM REAR COVER)
LIGHT GRADE
LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER)
LIGHT GRADE&SPARE TIRE-WITHOUT&AUDIO-RADIO LESS & WITHOUT(SPEAKER)
64718ACOVER, DECK TRIM SERVICE HOLE
BLACK,TRIM2#
EU BLACK,TRIM2#
64718DCOVER, DECK TRIM SERVICE HOLE
BLACK,TRIM1#,2#,#, RH
sub58731-02040
AUDIO-*DA,DAB,JBL,6SPEAKER,NAVIGATION(*VCS),EU BLACK,TRIM2#,4#,RH
sub58731-02040
DECK BOARD-WITH(ADJUSTABLE DECK BOARD),EU BLACK,TRIM2#,4#,RH
sub58731-02040
AUDIO-*DA & JBL & 6SPEAKER & NAVIGATION(*VCS),EU BLACK,TRIM2#,4#,RH
sub58731-02040
EU BLACK,TRIM2#,4#,#, RH
sub58731-02040
EU BLACK,TRIM2#,#, RH
sub58731-02040
DECK BOARD-WITH(ADJUSTABLE DECK BOARD),EU BLACK,TRIM2#,RH
sub58731-02040
BLACK,TRIM1#,2#,#, LH
sub58732-02040
DECK BOARD-WITH(ADJUSTABLE DECK BOARD),EU BLACK,TRIM2#,4#,LH
sub58732-02040
EU BLACK,TRIM2#,4#,#, LH
sub58732-02040
EU BLACK,TRIM2#,#, LH
sub58732-02040
DECK BOARD-WITH(ADJUSTABLE DECK BOARD),EU BLACK,TRIM2#,LH
sub58732-02040
BLACK,TRIM2#,#, RH
DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#,4#,RH
DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#,RH
AUDIO-*DA & JBL & 6SPEAKER & NAVIGATION(*VCS),BLACK,TRIM2#,4#,RH
AUDIO-*DA,DAB,JBL,6SPEAKER,NAVIGATION(*VCS),BLACK,TRIM2#,4#,RH
BLACK,TRIM2#,4#,#, RH
DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#,4#,LH
BLACK,TRIM2#,4#,#, LH
BLACK,TRIM2#,#, LH
DECK BOARD-WITH(ADJUSTABLE DECK BOARD),BLACK,TRIM2#,LH
64726HHOOK, DECK SIDE TRIM, NO.2
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM1#,2#
sub64740-02160
EU BLACK,TRIM2#
sub64740-02210
EU BLACK,TRIM2#,4#
sub64740-02210
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
7403
81496AGUIDE, REAR COMBINATION LAMP
9011906840
main90119-06840
90119W0037
main90119-W0037
90467A0033
main90467-A0033
9324056022
main93240-56022

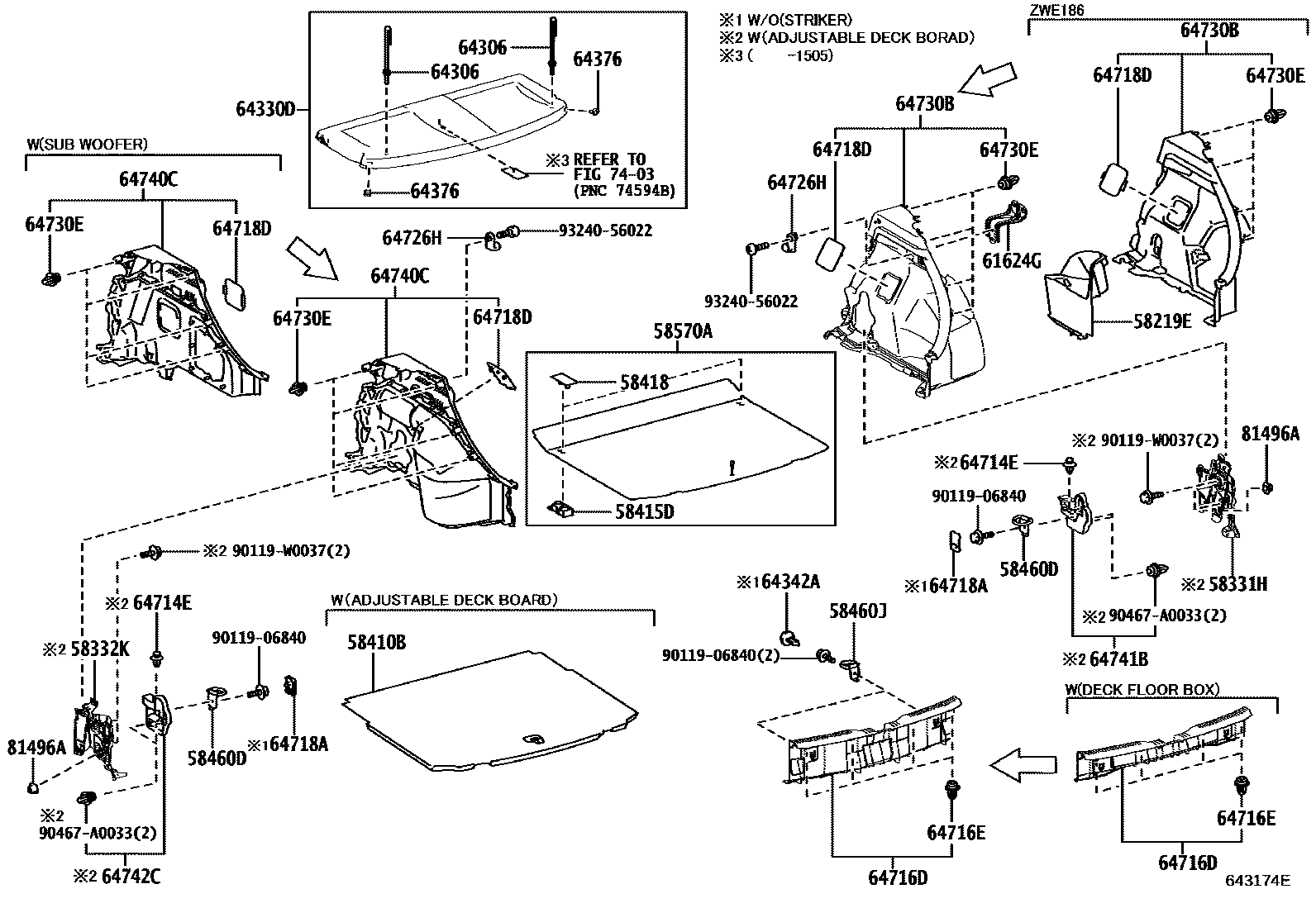

31 parts on this diagram · 4 diagrams in section
