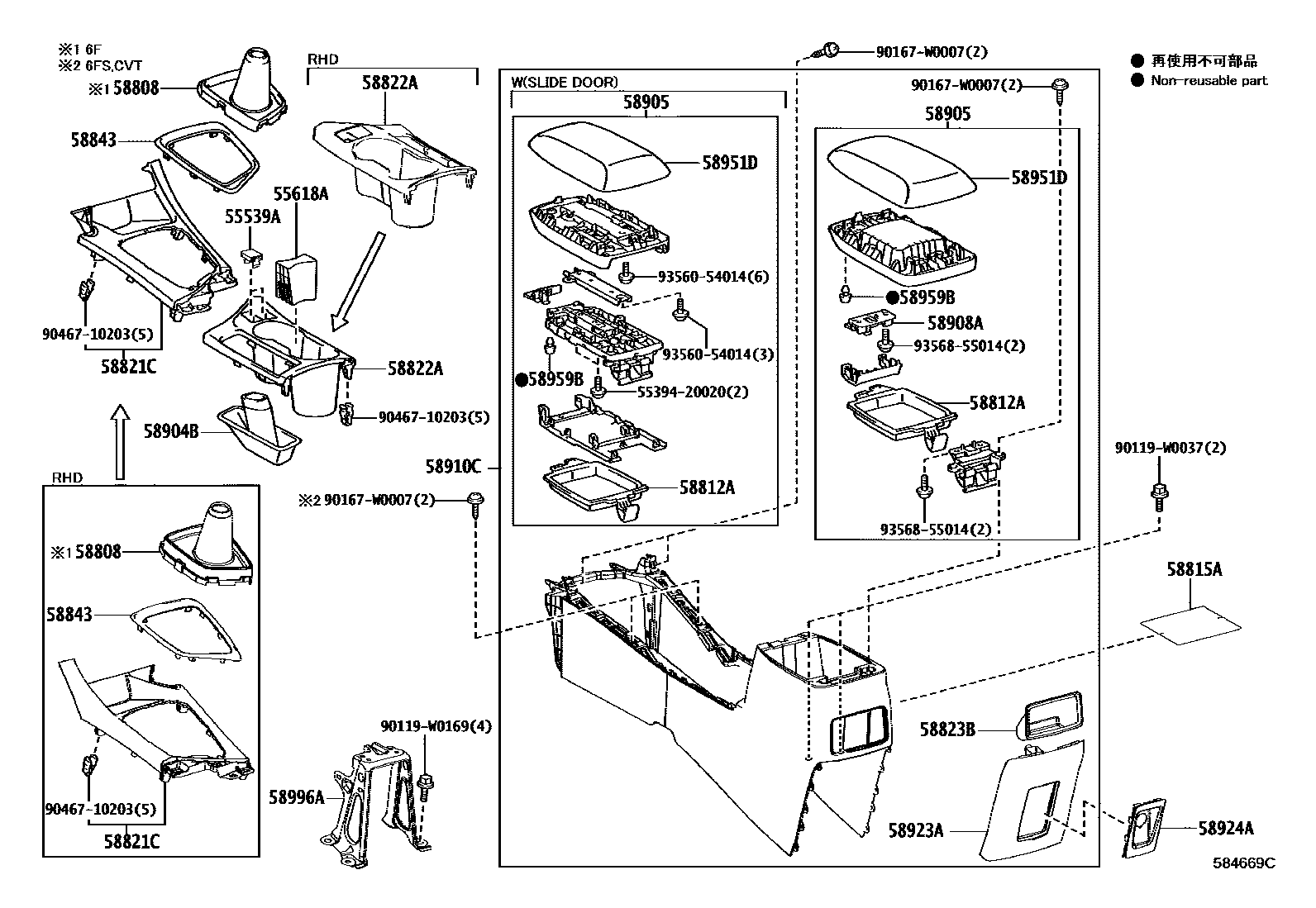

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
ADDITIONAL HEATER-WITH(STOVE HEATER),BLACK,TRIM2#
sub55539-02100
SEAT COVER MATERIAL-FABLIC(BASE GRADE),BLACK,TRIM2#
sub55539-02100
SEAT COVER MATERIAL-FABLIC(MY14),BLACK,TRIM2#
sub55539-02100
START & STOP SYSTEM PACKAGE&COLD AREA SPEC,BLACK,TRIM2#
sub55539-02100
START & STOP SYSTEM PACKAGE&ADDITIONAL HEATER-WITH(STOVE HEATER),BLACK,TRIM2#
sub55539-02100
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE),EU BLACK,TRIM2#
sub55539-02100
AUDIO-RADIO LESS & 6SPEAKER,EU BLACK,TRIM2#,4#
sub55539-02100
AUDIO-RADIO LESS & WITHOUT(SPEAKER),EU BLACK,TRIM2#,4#
sub55539-02100
LIGHT GRADE&SEAT COVER MATERIAL-FABLIC(BASE GRADE)
AUDIO-RADIO LESS & 6SPEAKER
AUDIO-RADIO LESS & WITHOUT(SPEAKER)
55618AHOLDER, CONSOLE BOX CUP
BLACK,TRIM2#
BLACK,TRIM1#,2#
EU BLACK,TRIM2#
EU BLACK,TRIM2#,4#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
58812ABOX, CONSOLE, LOWER
58815ACARPET, CONSOLE BOX
58821CPANEL, CONSOLE, UPPER
EU BLACK,TRIM2#
EU BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
EU BLACK,TRIM2#,4#
EU BLACK,TRIM2#
EU BLACK,TRIM2#,4#
EU BLACK,TRIM2#
EU BLACK,TRIM2#,4#
EU BLACK,TRIM2#
58822APANEL, CONSOLE, UPPER REAR
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
EU BLACK,TRIM2#
EU BLACK,TRIM2#,4#
EU BLACK,TRIM2#
EU BLACK,TRIM2#,4#
58823BBOX, CONSOLE COMPARTMENT
58843BEZEL, SHIFTING HOLE
MD.SILVER,TRIM20
MD.SILVER,TRIM20
MD.SILVER,TRIM20
MD.SILVER,TRIM20
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
BLACK,TRIM2#,4#
BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
EU BLACK/GRAY NO.205,TRIM2#
EU BLACK/COPPER,TRIM4#
BLACK,TRIM2#
EU BLACK/TOYOBO ESTHER,TRIM2#
EU BLACK,TRIM2#
EU BLACK/BLACK,TRIM2#
EU BLACK/BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
HIGH GRADE,BLACK,TRIM2#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM2#
EU BLACK/GRAY NO.205,TRIM2#
EU BLACK/COPPER,TRIM4#
EU BLACK/TOYOBO ESTHER,TRIM2#
EU BLACK,TRIM2#
EU BLACK/BLACK,TRIM2#
EU BLACK/BLACK,TRIM2#
BLACK,TRIM2#
HIGH GRADE,BLACK,TRIM2#
BLACK,TRIM1#,2#
58923APANEL, CONSOLE REAR END
BLACK,TRIM1#,2#
sub58923-02160
58924APANEL, CONSOLE REAR END, NO.2
58951DDOOR, CONSOLE COMPARTMENT, OUTER
BLACK,TRIM2#
BLACK/GRAY NO.205,TRIM2#
BLACK/COPPER,TRIM4#
BLACK/TOYOBO ESTHER,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
HIGH GRADE,BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
5539420020BRACKET, INSTRUMENT PANEL TO PEDAL
main55394-20020
90119W0037
main90119-W0037
90119W0169
main90119-W0169
90167W0007
main90167-W0007
9046710203
main90467-10203
9356054014
main93560-54014
9356855014
main93568-55014
25 parts on this diagram · 4 diagrams in section
