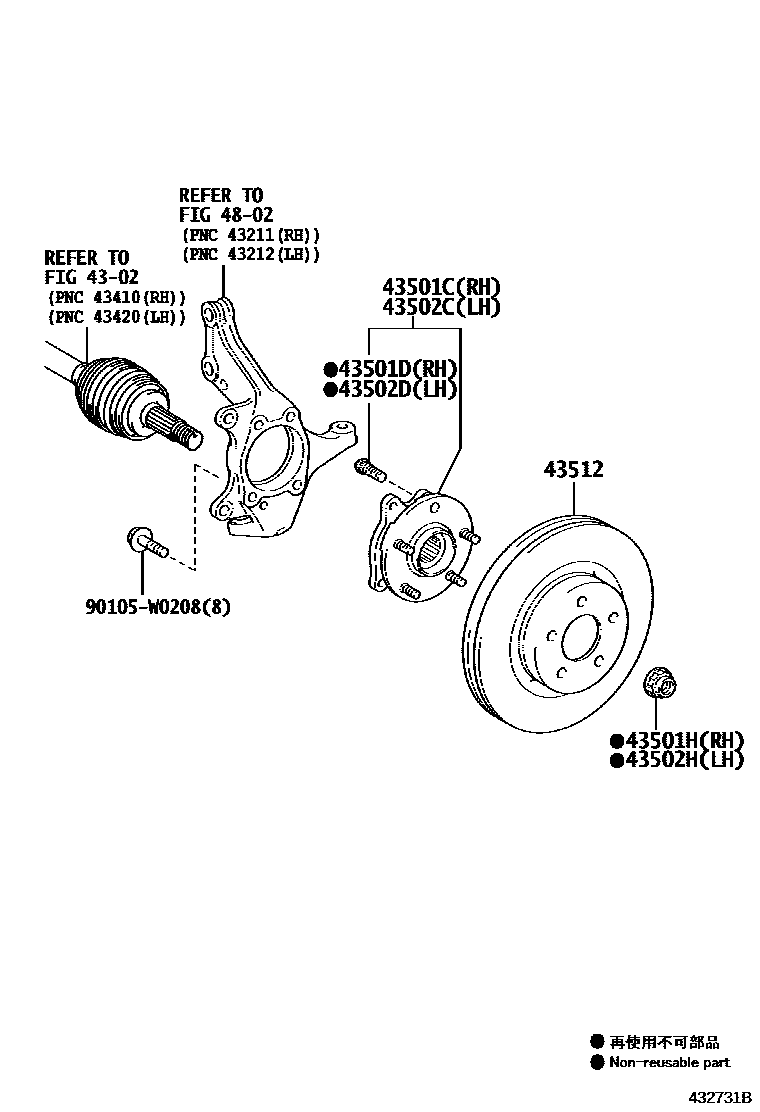

FRONT AXLE HUB
4302
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
43502DBOLT, HUB (FOR FRONT AXLE LH)
43502HNUT (FOR FRONT AXLE SHAFT LH)
43512DISC, FRONT
ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)
ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)
TOWING PACKAGE&TIRE & DISC WHEEL-225/45R17 7J ALUMI&ROOF RAIL-WITH(SILVER)
TOWING PACKAGE&TIRE & DISC WHEEL-225/45R17 7J ALUMI&ROOF RAIL-WITH(SILVER)&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)
TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)
TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES&ROOF-WITH(PANORAMA ROOF &ELECTRIC SHADE)
TIRE & DISC WHEEL-225/45R17 7J ALUMI&ROOF-WITH(PANORAMA ROOF & ELECTRIC SHADE)
4802
90105W0208
main90105-W0208
10 parts on this diagram · 1 diagram in section
