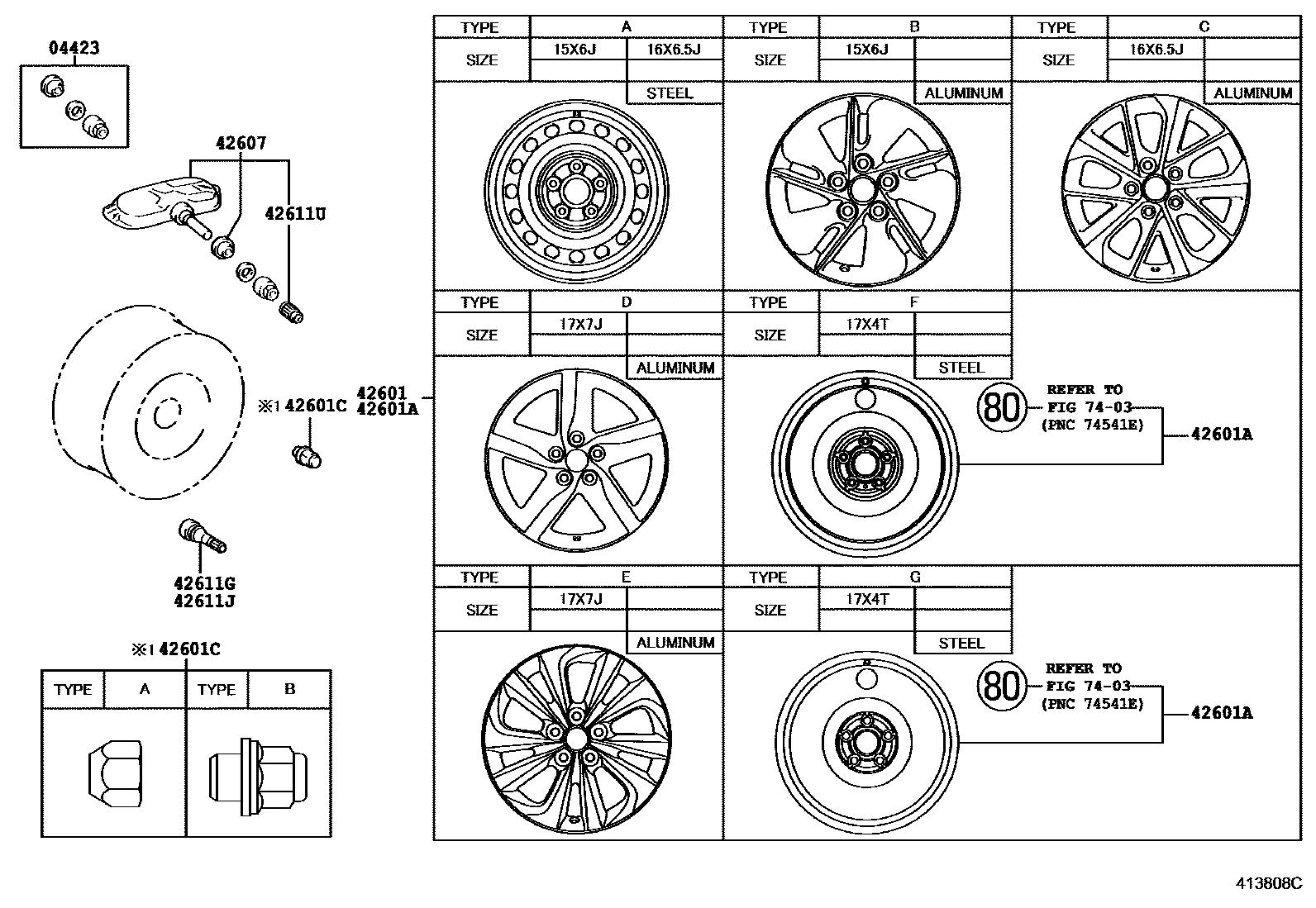

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J STEEL GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST.
15X6J, #,LIGHT GRADE&TIRE & DISC WHEEL-195/65R15 6J ALUMI&SPARE TIRE-WITHOUT,TYPEB:REFER ILLUST.
17X7J, #,TYPE E:REFER ILLUST.
17X7J, #,LIGHT GRADE&TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES&SPARE TIRE-WITHOUT,TYPE K:REFER ILLUST.
16X6.5J, #,REGULATION COMPLIANCE LABEL & NAME PLATE-NTA NAME PLATE&REFRIGERANT GASTYPE=R-134A&TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES&SPARE TIRE-G
17X7J, #,TYPE M:REFER ILLUST.
17X7J, #,TYPE E:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/45R17 7J ALUMI,TYPE D:REFER ILLUST.
16X6.5J, #,REGULATION COMPLIANCE LABEL & NAME PLATE-NTA NAME PLATE&REFRIGERANT GASTYPE=R-134A&TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI&SPARE TIRE-GROUND TI
16X6.5J, #,REGULATION COMPLIANCE LABEL & NAME PLATE-NTA NAME PLATE&RUSSIA SPEC&TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REF
15X6J, #,LIGHT GRADE&SPARE TIRE-WITHOUT,TYPE A:REFER ILLUST.
16X6J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI,TYPE J:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
15X6J, #,REFRIGERANT GAS TYPE=R-134A&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST.
16X6.5J, #,TURKEY SPEC&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST.
16X6.5J, #,REFRIGERANT GAS TYPE=R-134A&TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5JALUMI&SPARE TIRE-GROUND TIRE(STEEL WHEEL),TYPE A:REFER ILLUST.
17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P G,TYPE G:REFER ILLUST.
17X4T,SPARE TIRE-TEMPORARY(T125/70D17),TYPE H:REFER ILLUST.
17X4T,SPARE TIRE-TEMPORARY(T125/70D17),PNC 42601A = T/P F,TYPE F:REFER ILLUST.
17X4T,SPARE TIRE-TEMPORARY(T125/70D17),TYPE H:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
LIGHT GRADE&TIRE & DISC WHEEL-205/55R16(ECO TIRE) 6.5J ALUMI,TYPE A:REFER ILLUST.
main90942-01033×20supersedes 90942-01007iZRE185..WG;ZRE185..HB..N;NDE180,NRE180..WG..D;ADE186,NDE180,NRE180..N201210-201505
LIGHT GRADE&TIRE & DISC WHEEL-195/65R15 6J ALUMI,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
LIGHT GRADE&TIRE & DISC WHEEL-205/55R16 6.5J STEEL&SPARE TIRE-WITHOUT
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
ECO PACKAGE&SPARE TIRE-GROUND TIRE(STEEL WHEEL)
42611UCAP, TIRE VALVE
LIGHT GRADE&TIRE & DISC WHEEL-205/55R16 6.5J STEEL GENERAL COUNTRIES&SPARE TIRE-WITHOUT
7403
9 parts on this diagram · 3 diagrams in section
