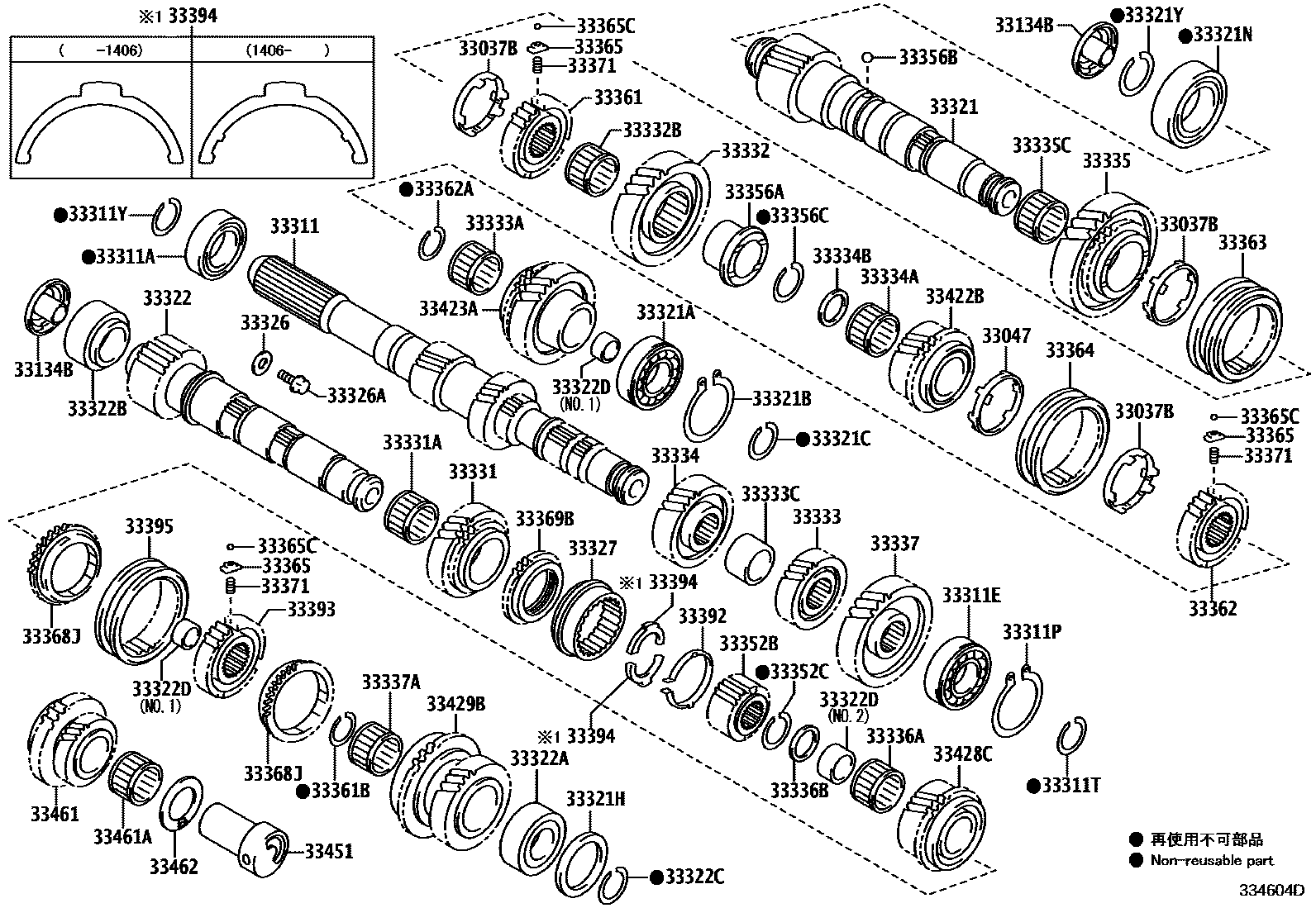

TRANSMISSION GEAR (MTM)
33047RING SET, SYNCHRONIZER, NO.4
33134BCOVER, OUTPUT SHAFT(MTM)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
sub90363-28016
sub90363-28020
sub90363-W0013
sub90363-W0014
sub90363-W0016
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33311TRING, SHAFT SNAP (FOR INPUT SHAFT)
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.40,MARK F
T=2.45,MARK G
T=2.50,MARK H
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
T=2.20,MARK 3
T=2.25,MARK 4
T=2.30,MARK 5
T=2.35,MARK 6
33311YRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=1.65,MARK A
T=1.70,MARK B
T=1.75,MARK C
T=1.80,MARK D
T=1.85,MARK E
T=1.90,MARK F
T=1.95,MARK G
T=2.00,MARK H
T=2.05,MARK J
T=2.10,MARK K
T=2.15,MARK L
T=2.20,MARK M
T=2.25,MARK N
T=2.30,MARK P
T=1.5
33321SHAFT, OUTPUT
sub33321-12301
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.750,MARK 50
T=1.755,MARK 51
T=1.800,MARK 52
T=1.825,MARK 53
T=1.850,MARK 54
T=1.875,MARK 55
T=1.900,MARK 56
T=1.925,MARK 57
T=1.950,MARK 58
T=1.975,MARK 59
T=2.000,MARK 60
T=2.025,MARK 61
T=2.050,MARK 62
T=2.075,MARK 63
T=2.100,MARK 64
T=2.125,MARK 65
T=2.150,MARK 66
T=2.175,MARK 67
T=2.200,MARK 68
T=2.225,MARK 69
T=2.250,MARK 70
T=2.275,MARK 71
T=2.300,MARK 72
T=2.325,MARK 73
T=2.350,MARK 74
T=2.375,MARK 75
T=2.400,MARK 76
T=2.425,MARK 77
T=2.450,MARK 78
T=2.475,MARK 79
T=2.500,MARK 80
T=2.525,MARK 81
T=2.550,MARK 82
T=2.575,MARK 83
T=2.600,MARK 84
T=2.625,MARK 85
T=2.650,MARK 86
T=2.675,MARK 87
T=2.700,MARK 88
T=2.725,MARK 89
T=2.750,MARK 90
T=2.775,MARK 91
T=2.800,MARK 92
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
T=2.15,MARK H
T=2.20,MARK J
T=2.25,MARK K
T=2.30,MARK L
T=2.35 MARK M
T=2.40,MARK N
T=2.45,MARK P
T=2.50,MARK Q
T=2.55,MARK R
T=2.60,MARK S
T=2.65,MARK T
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321YRING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT BEARING)
33322SHAFT, OUTPUT, NO.2
33322ABEARING (FOR OUTPUT SHAFT NO.2 REAR)
33322BBEARING (FOR OUTPUT SHAFT NO.2 FRONT)
33322CRING, SNAP (FOR OUTPUT SHAFT NO.2 BEARING)
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
33322DCOLLAR (FOR OUTPUT SHAFT)
NO.1
NO.2
33326PLATE, BEARING LOCK
33326ABOLT (FOR BEARING LOCK PLATE)
33327SLEEVE, TRANSMISSION HUB, NO.4
33331GEAR, REVERSE
33331ABEARING (FOR REVERSE GEAR)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33333CCOLLAR (FOR 3RD GEAR)
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33337ABEARING, NEEDLE ROLLER (FOR 6TH GEAR)
33352BHUB, TRANSMISSION CLUTCH, NO.4
33352CRING, SHAFT SNAP
T=2.25,MARK A
T=2.30,MARK B
T=2.35,MARK C
T=2.40,MARK D
T=2.45,MARK E
T=2.50,MARK F
T=2.55,MARK G
T=2.60,MARK H
33356ARACE, 2ND GEAR BEARING INNER
33356BBALL, 2ND GEAR BEARING INNER RACE LOCK
33356CRING, SNAP (FOR 2ND GEAR BEARING INNER RACE)
T=2.25,MARK A
T=2.30,MARK B
T=2.35,MARK C
T=2.40,MARK D
T=2.45,MARK E
T=2.50,MARK F
T=2.55,MARK G
T=2.60,MARK H
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.25,MARK 1
T=2.30,MARK 2
T=2.35,MARK 3
T=2.40,MARK 4
T=2.45,MARK 5
T=2.50,MARK 6
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.25,MARK 1
T=2.30,MARK 2
T=2.35,MARK 3
T=2.40,MARK 4
T=2.45,MARK 5
T=2.50,MARK 6
T=2.27,MARK 0
T=2.32,MARK 1
T=2.37,MARK 2
T=2.42,MARK 3
T=2.47,MARK 4
T=2.52,MARK 5
T=2.57,MARK 6
T=2.62,MARK 7
33365KEY, SYNCHROMESH SHIFTING, NO.1
33365CBALL(FOR SYNCHROMESH SHIFTING KEY)
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
33369RING, SYNCHRONIZER, NO.3
33369BRING, SYNCHRONIZER, NO.4
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
sub33371-53010
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33394KEY, SYNCHROMESH SHIFTING, NO.3
33451SHAFT, REVERSE IDLER GEAR
33461ABEARING, REVERSE IDLER GEAR
70 parts on this diagram · 3 diagrams in section
