VACUUM PUMP

0001 1 0002 1 0003 1 0004 1

1708VACUUM PIPING

→ Go to FIG 17-08

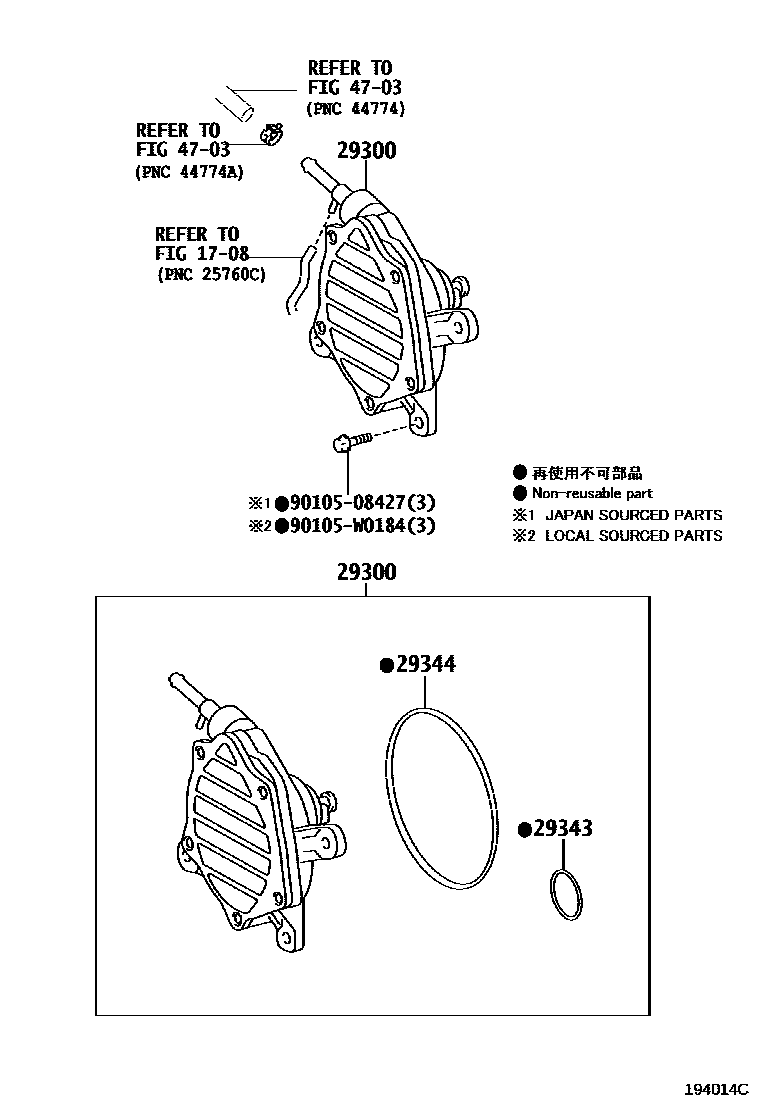

29300PUMP ASSY, VACUUM

main29300-0T020i1ZRFAE..ZRE185201505

main29300-0W022i1ZRFAE..ZRE185201210-201211

main29300-0W072i1NDTV..NDE180201210-201502

main29300-0W090i1ADFTV..ADE186201210-201505

main29300-0W120i1NDTV..NDE180201505

main29300-47040i8NRFTS..NRE185201505-201802

main29300-47050i8NRFTS..NRE185201802

29343RING, O VACUUM PUMP, NO.1

main29343-0N010i1ADFTV,1ZRFAE..ADE186,ZRE185201210-201505

main29343-0W050i1ZRFAE..ZRE185201707

main29343-0W060i1NDTV..NDE180201210-201505

main29343-47040i8NRFTS..NRE185201505

29344RING, O VACUUM PUMP, NO.2

main29344-0W022i1ADFTV,1ZRFAE..ADE186,ZRE185201210-201505

main29344-0W050i1ZRFAE..ZRE185201707

main29344-0W060i1NDTV..NDE180201210-201503

main29344-0W100i1NDTV..NDE180201503-201505

main29344-22011i8NRFTS..NRE185201505

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

9010508427

main90105-08427

90105W0184

main90105-W0184

7 parts on this diagram · 4 diagrams in section
