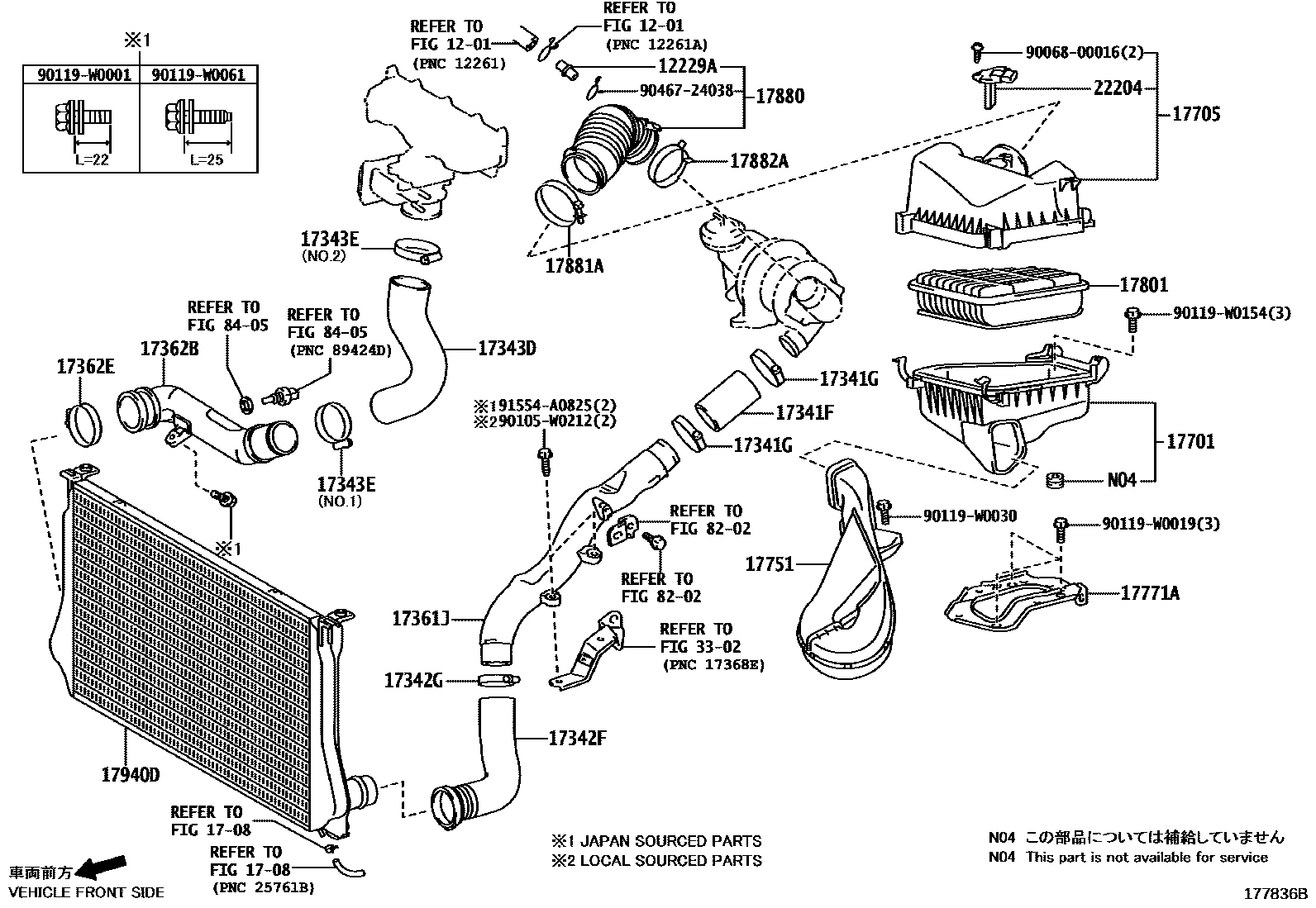

AIR CLEANER
1201
12229APIPE, VENTILATION
1708
17341FHOSE, AIR, NO.1
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)
17342FHOSE, AIR, NO.2(FOR INTERCOOLER)
17342GCLAMP, HOSE, NO.2(FOR INTERCOOLER)
17343DHOSE, AIR, NO.3
17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)
NO.1:REFER ILLUST.
NO.2
NO.2:REFER ILLUST.
17361JTUBE, AIR, NO.1
17362ECLAMP, NO.2(FOR AIR TUBE, NO.2)
17701CASE SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17771ABRACKET, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17880HOSE ASSY, AIR CLEANER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK 22204-0V020
MARK 22204-28010
3302
8202
8405
9006800016
main90068-00016
90105W0212
main90105-W0212
90119W0001
main90119-W0001
90119W0019
main90119-W0019
90119W0030
main90119-W0030
90119W0061
main90119-W0061
90119W0154
main90119-W0154
9046724038
main90467-24038
91554A0825
main91554-A0825
36 parts on this diagram · 9 diagrams in section
