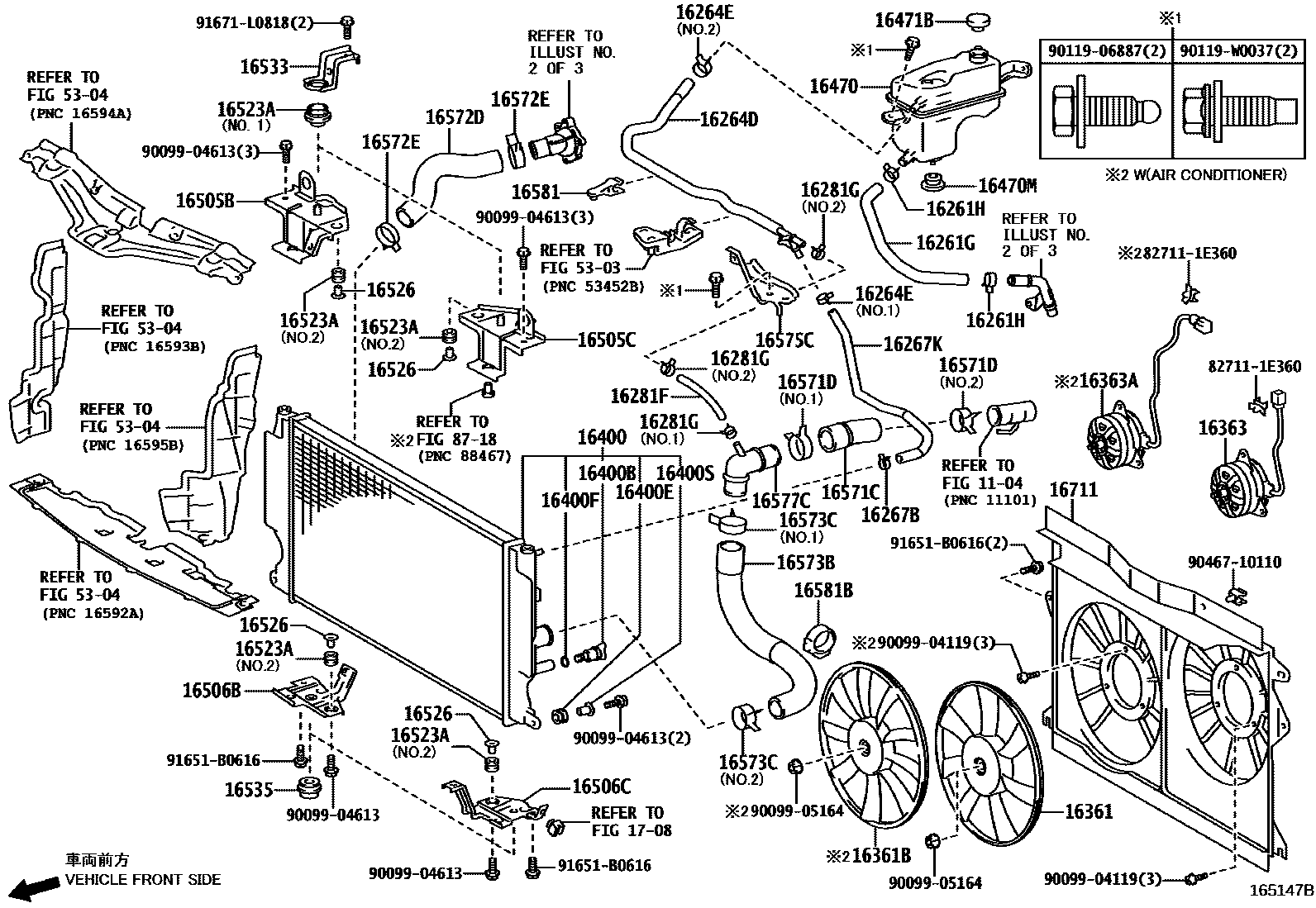

RADIATOR & WATER OUTLET
1104
16261HOSE, WATER BY-PASS
(L)
(L)
(J)
(J)
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
(L),NO.2
(L)
NO.1
(J),NO.2
(J)
16264HOSE, WATER BY-PASS, NO.2
(L)
(J)
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
NO.1
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2
16267HOSE, WATER BY-PASS, NO.3
(L)
(J)
16267BCLIP(FOR WATER BY-PASS HOSE)
(L),NO.2:SEE ILLUST
NO.1:REFER ILLUST.
(J),NO.2:SEE ILLUST
16267KHOSE, WATER BY-PASS, NO.3
LIGHT GRADE
AIR CONDITIONER-AUTO(SINGLE MODE)
LIGHT GRADE
16281HOSE, WATER BY-PASS, NO.4
(L)
PNC 16321=ALUMINUM
PNC 16321=PLASTIC
(J)
16281GCLIP(FOR WATER BY-PASS HOSE NO.5)
NO.1:REFER ILLUST.
NO.1
NO.2
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1
16361FAN
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
RUSSIA SPEC
*153
RUSSIA SPEC&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
16400EBUSH(FOR RADIATOR)
16400FPACKING(FOR RADIATOR DRAIN COCK)
16400SCOLLAR(FOR RADIATOR)
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16505BSUPPORT SUB-ASSY, RADIATOR, UPPER RH
16505CSUPPORT SUB-ASSY, RADIATOR, UPPER LH
16506BSUPPORT SUB-ASSY, RADIATOR, LOWER RH
16506CSUPPORT SUB-ASSY, RADIATOR, LOWER LH
16523ACUSHION, RADIATOR SUPPORT
NO.1
NO.2
LIGHT GRADE,NO.2
16526HOLDER, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571DCLIP, RADIATOR HOSE, NO.1
(L),NO.2
(L),NO.1:SEE ILLUST
NO.1:REFER ILLUST.
NO.1
NO.1
NO.2:REFER ILLUST.
NO.1
(J),NO.1:SEE ILLUST
(J),NO.2
NO.2
16572ECLIP, RADIATOR HOSE, NO.2
(L)
(L),NO.1:SEE ILLUST
NO.2:REFER ILLUST.
(J),NO.1:SEE ILLUST
(J)
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
NO.1
NO.2:REFER ILLUST.
(L),NO.2
(L),NO.1:SEE ILLUST
NO.2:REFER ILLUST.
NO.1
NO.1
(J),NO.1:SEE ILLUST
(J),NO.2
NO.2
16575CBRACKET, WATER HOSE CLAMP, NO.1
16577CPIPE, RADIATOR
16581CLAMP, HOSE(FOR WATER HOSE)
NO.1:REFER ILLUST.
NO.1
TYPE A,NO.2
NO.2:REFER ILLUST.
TYPE B,NO.2
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
1708
5303
5304
8718
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009904119
main90099-04119
9009904613
main90099-04613
9009905164
main90099-05164
9011906887
main90119-06887
90119W0037
main90119-W0037
9046710110
main90467-10110
91651B0616
main91651-B0616
91671L0818
main91671-L0818
57 parts on this diagram · 21 diagrams in section
