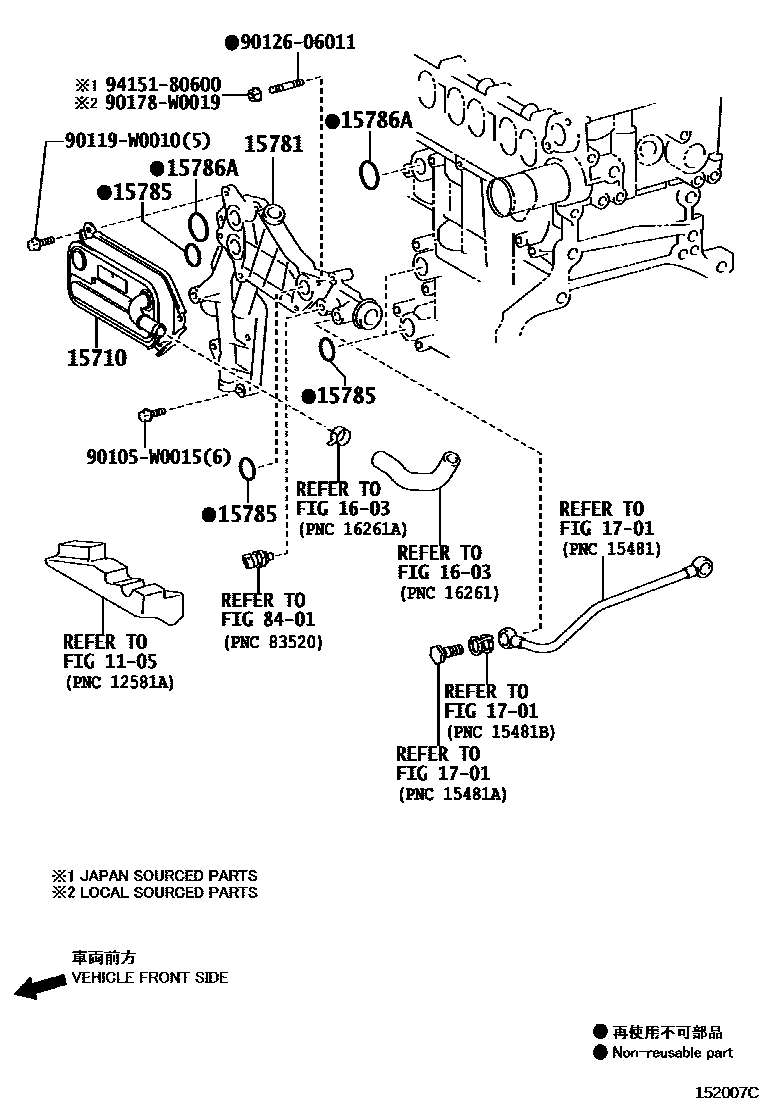

ENGINE OIL COOLER

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15710COOLER ASSY, OIL

main15710-0N010i1NDTV..NDE180201505

main15710-0R011i1ADFTV..ADE186201210

main15710-33050i1NDTV..NDE180201210-201505

15781BRACKET, OIL COOLER, NO.1

main15781-0R020i1ADFTV..ADE186201210

15785GASKET, OIL COOLER

main15785-0R020×4i1ADFTV..ADE186201210

main15785-33010i1NDTV..NDE180201210-201505

15786AGASKET, OIL COOLER

main15786-0R020×2i1ADFTV..ADE186201210

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105W0015

main90105-W0015

90119W0010

main90119-W0010

9012606011

main90126-06011

90178W0019

main90178-W0019

9415180600

main94151-80600

13 parts on this diagram · 2 diagrams in section
