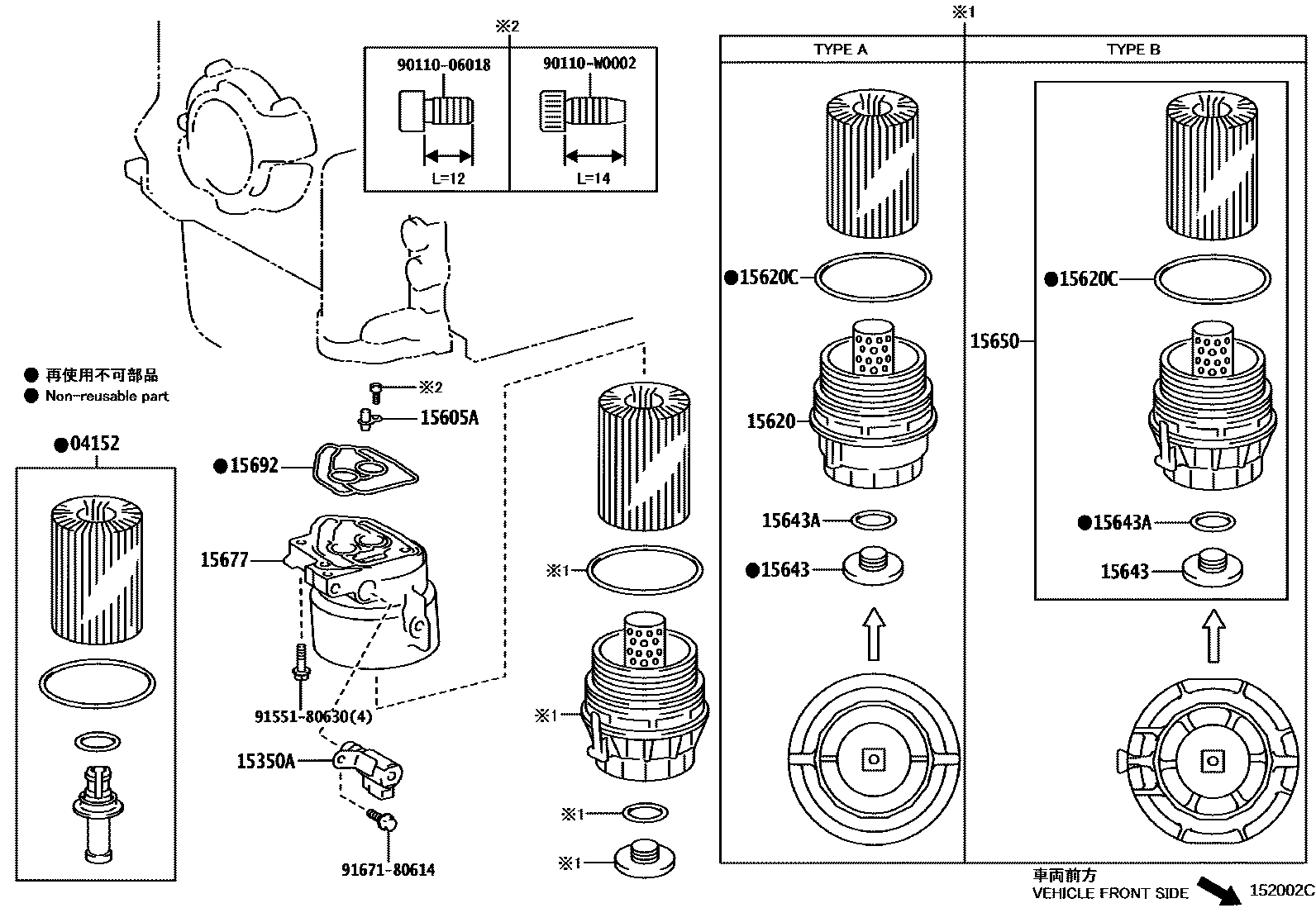

OIL FILTER
04152ELEMENT KIT, OIL FILTER
(L)
ELEMENT TYPE
(J)
15350AVALVE ASSY, OIL PRESSURE SWITCHING
15605AVALVE SUB-ASSY, OIL CHECK
15620CAP ASSY, OIL FILTER
TYPE A:REFER ILLUST.
ELEMENT TYPE
15620CGASKET(FOR OIL FILTER CAP)
ELEMENT TYPE
15643PLUG, OIL FILTER DRAIN
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
15643ARING, O(FOR OIL FILTER DRAIN PLUG)
15650CAP ASSY, OIL FILTER W/ELEMEMT
TYPE B:REFER ILLUST.
15677BRACKET, OIL FILTER
15692GASKET, OIL FILTER BRACKET
9011006018
main90110-06018
90110W0002
main90110-W0002
9155180630
main91551-80630
9167180614
main91671-80614
14 parts on this diagram · 6 diagrams in section
