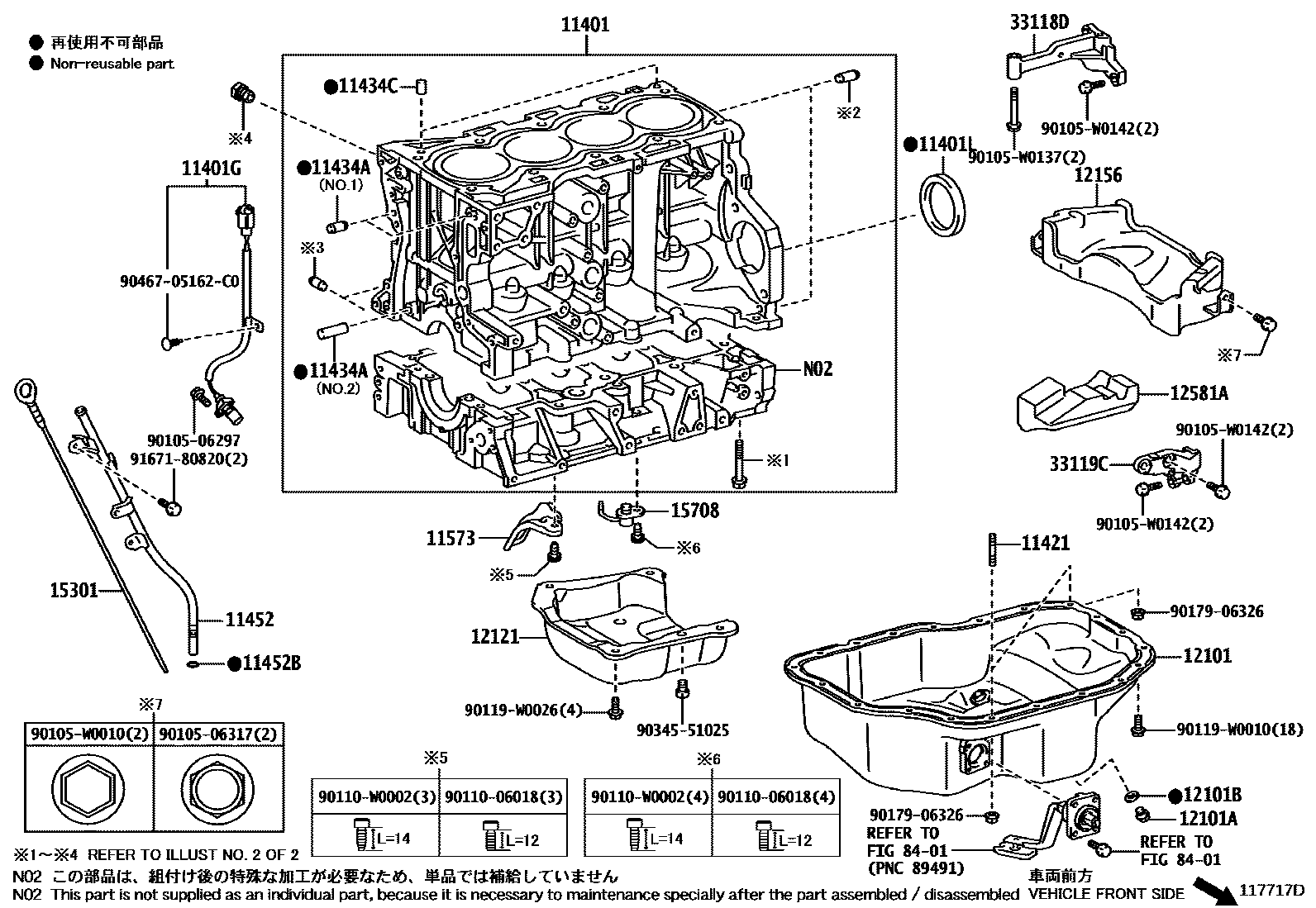

11401BLOCK SUB-ASSY, CYLINDER

main11401-WA020i201505-201804

main11410-09406i201210-201309

(L)

main11410-09406i201309

main11410-09445i201210-201612

(L)

sub11410-09446

main11410-09446i201612

(L)

main11410-09455i201210-201612

(L)

sub11410-09456

main11410-09456i201612

(L)

main11410-09650i201504-201606

(L)

main11410-09650i201606

main11410-09680i201409-201504

(L)

sub11410-09650

main11410-29406i201210-201309

(J)

sub11410-09406

main11410-39047i201210-201612

(J)

sub11410-39235

main11410-39057i201210-201612

(J)

sub11410-39245

main11410-39085i201210-201302

sub11410-39155

main11410-39155i201302-201406

main11410-39155i201406-201606

(J)

main11410-39235i201612

(J)

sub11410-39236

main11410-39245i201612

(J)

sub11410-39246

main11410-49017i201210-201307

sub11410-49018

main11410-49018i201307-201309

sub11410-49045

main11410-49045i201309-201505

main11410-49065i201505

11401GSENSOR, CRANK POSITION

main90919-05069i201210

main90919-05070i201210-201505

main90919-05074i201210-201505

11401LSEAL, ENGINE REAR OIL

main90069-38023i201505-201804

main90311-75017i201210-201303

sub90311-75020

main90311-75020i201303-201505

main90311-76002i201210-201505

(J)

main90311-76002i201505-201609

main90311-78002i201505

main90311-78003i201210-201305

sub90311-78005

main90311-78005i201305-201505

main90311-78008i201610

(J)

main90311-99012i201210-201405

main90311-W0010i201210

sub90311-W0020

main90311-W0011i201210-201505

(L)

11421BOLT, STUD(FOR OIL PAN)

main90116-06134i201210

main90126-06028i201210-201505

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i201210-201505

L=12,OD=4.0

main90250-08120i201210

L=18,OD=8,NO.1:REFER ILLUST.

main90250-08120i201210-201505

L=18,OD=8

main90250-10030i201210

L=36,OD=10,NO.2:REFER ILLUST.

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-04097i201210-201505

L=12,OD=4.0

main90250-08074i201210

L=15,OD=8

main90250-08120i201210-201505

L=18,OD=8

11452GUIDE, OIL LEVEL GAGE

main11452-26060i201210

main11452-37011i201210-201505

main11452-47030i201505

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90069-38029i201505-201804

main96721-19010i201210-201505

main96741-19010i201210-201602

11573PLATE, OIL REFLECTOR

main11573-26010i201210

12101PAN SUB-ASSY, OIL

main12101-0N010i201210-201405

(L)

main12101-0N011i201405-201505

main12101-26030i201210

main12101-33060i201210-201405

(J)

main12101-47131i201210-201505

main12101-WA010i201505-201804

12101APLUG(FOR OIL PAN DRAIN)

main90069-39020i201505-201804

main90341-12012i201210-201505

main90341-12032i201210-201505

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90069-38021i201505-201804

main90430-12031i201210-201505

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-26020i201210

main12121-B1060i201210-201505

12156INSULATOR, OIL PAN

main12156-0R020i201210

12581AINSULATOR, CYLINDER BLOCK, NO.1

main12581-26010i201210

15301GAGE SUB-ASSY, OIL LEVEL

main15301-26080i201210

main15301-33040i201505

main15301-33050i201210-201505

main15301-37010i201306-201505

main15301-37030i201210-201306

sub15301-37010

main15301-47050i201210-201505

main15301-47070i201505

main15301-YV030i201505-201804

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0R020i201210

main15708-33020i201210-201505

main15708-33030i201505

main15708-37011i201210-201211

sub15708-37012

main15708-37012i201211-201505

main15708-47030i201210-201307

sub15708-47031

main15708-47031i201307-201502

sub15708-47080

main15708-47070i201505

main15708-47080i201502-201805

sub15708-47081

main15708-47081i201805

main15708-WA010i201505-201804

33118DPLATE, STIFFENER, RH

main33118-05010i201210

33119CPLATE, STIFFENER, LH

main33119-05020i201210

8401

9010506297

main90105-06297

9010506317

main90105-06317

90105W0010

main90105-W0010

90105W0137

main90105-W0137

90105W0142

main90105-W0142

9011006018

main90110-06018

90110W0002

main90110-W0002

90119W0010

main90119-W0010

90119W0026

main90119-W0026

9017906326

main90179-06326

9034551025

main90345-51025

9046705162C0

main90467-05162C0

9167180820

main91671-80820
