ENGINE OVERHAUL GASKET KIT

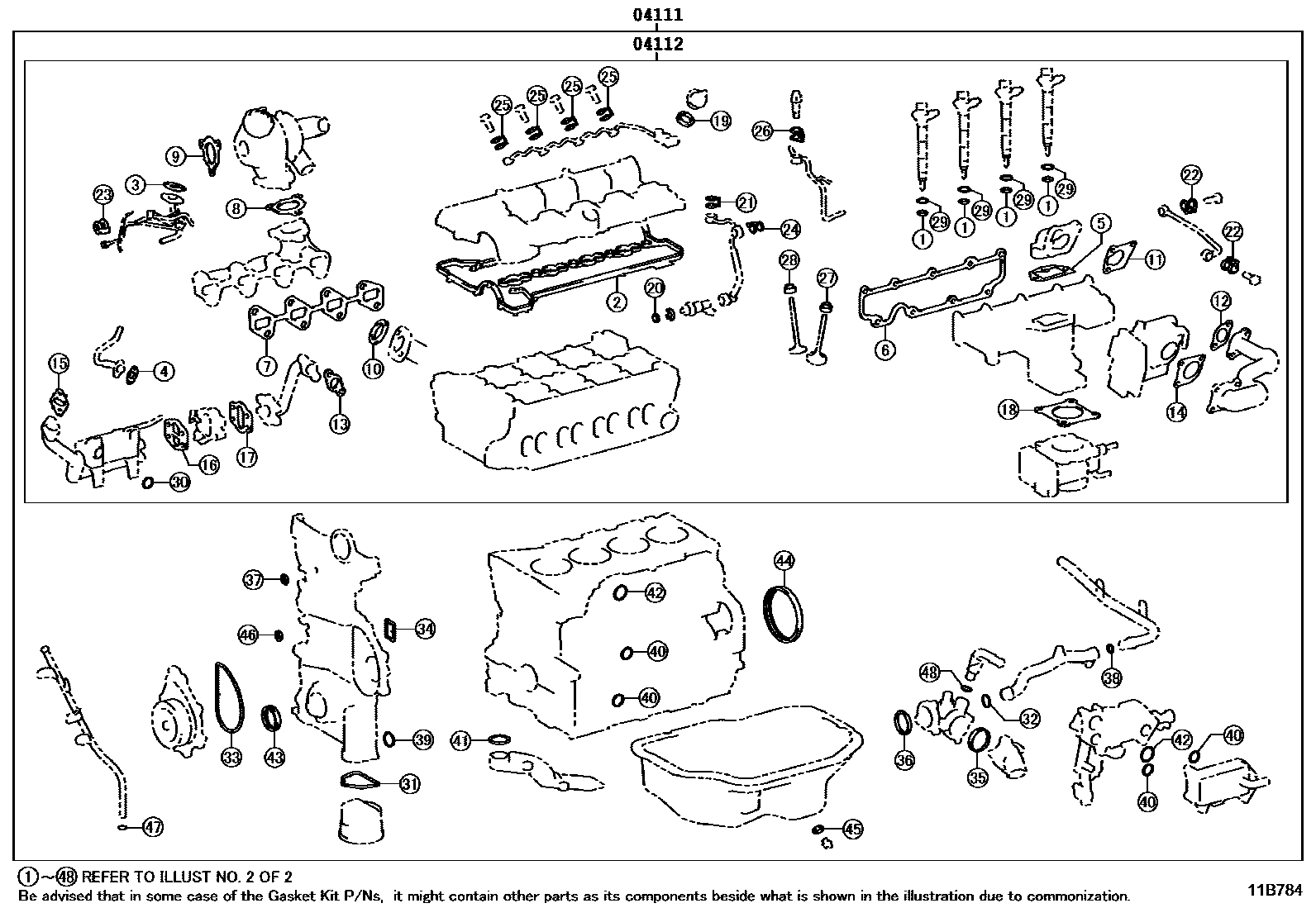

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0R270i201210

main04111-0T064i201210-201406

main04111-0T065i201406-201410

main04111-0T066i201410-201506

main04111-0T067i201506

main04111-0T162i201210-201406

main04111-0T163i201406-201502

main04111-0T164i201502-201508

main04111-0T165i201508

main04111-33180i201210-201211

main04111-33181i201211-201409

main04111-33182i201409-201411

main04111-33220i201505

main04111-33230i201411-201505

main04111-47067i201210-201303

START & STOP SYSTEM PACKAGE

main04111-47068i201303-201312

START & STOP SYSTEM PACKAGE

main04111-47076i201210-201303

main04111-47077i201303-201312

main04111-47180i201312-201405

main04111-47190i201312-201505

main04111-47270i201505-201711

main04111-47272i201711

main04117-WA010i201505-201804

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0R260i201210

main04112-0T064i201210-201410

main04112-0T065i201410-201506

main04112-0T066i201506

main04112-0T162i201210-201502

main04112-0T163i201502-201508

main04112-0T164i201508

main04112-33180i201210-201211

main04112-33181i201211-201409

main04112-33182i201409-201411

main04112-33200i201505

main04112-33210i201411-201505

main04112-47036i201210-201312

main04112-47130i201312-201505

main04112-47180i201505-201711

main04112-47182i201711

main04112-WA010i201505-201804

2 parts on this diagram · 15 diagrams in section
