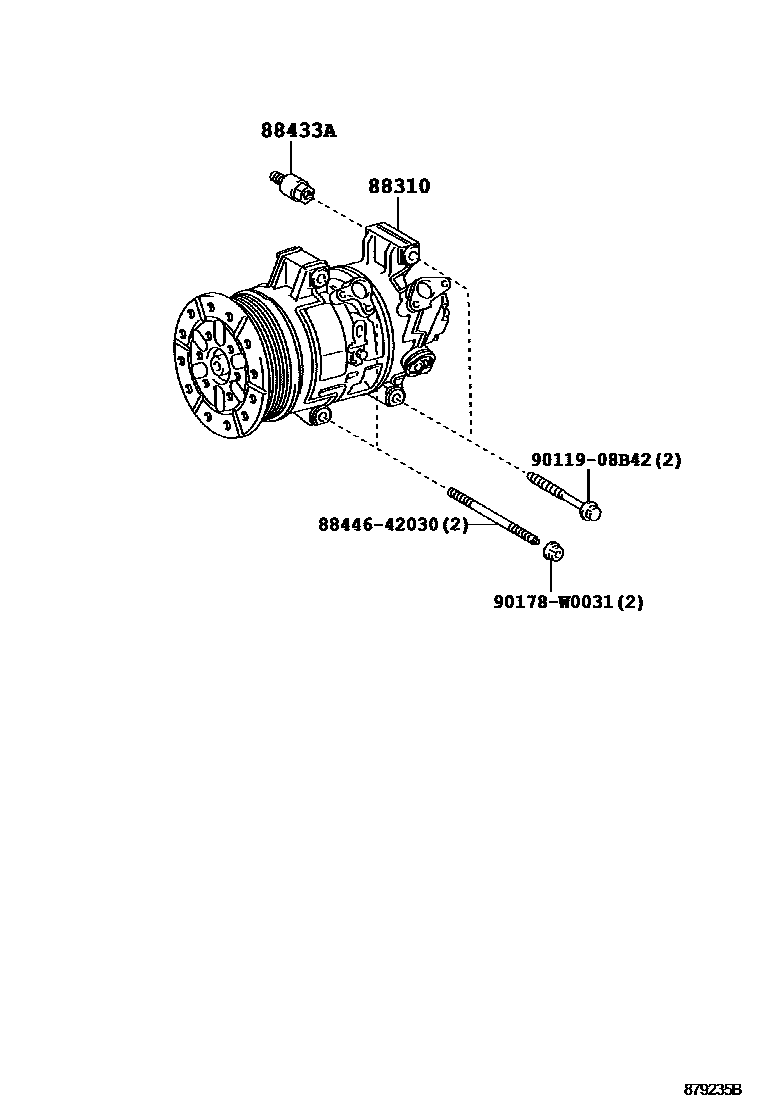

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-02370iZRE151..SOL; ZRE151..TERRA200702-200902

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88310-02390iNDE150..SOL; NDE150..TERRA200702-200902

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88310-02400iADE150..TERRA; ADE157..3D;ADE150..RHD;ADE150..LHD..3D..SOL200903-201001

AIR CONDITIONER-MANUAL

main88310-02540iZZE150..SOL; ZZE150..TERRA200702-200811

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88310-0D320iNRE150..SOL; NRE150..TERRA200811-201001

AIR CONDITIONER-MANUAL

main88310-0D330iNDE150..E,TERRA; NDE150..SOL200902-201001

AIR CONDITIONER-MANUAL

88433ASTAY, COMPRESSOR

main88433-20040iADE157..3D;ADE150..RHD;ADE150..LHD..3D200903-201001

8844642030BOLT, IDLE PULLEY

main88446-42030

9011908B42

main90119-08B42

90178W0031

main90178-W0031

5 parts on this diagram · 6 diagrams in section
