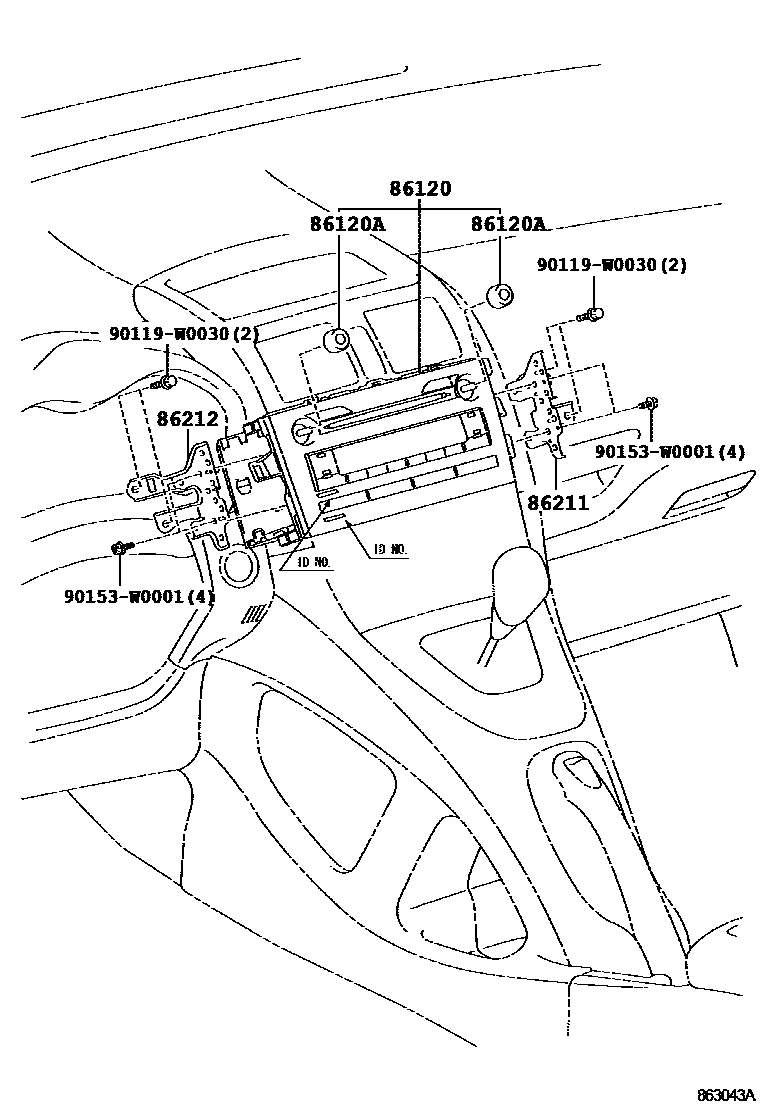

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
main86120-02521iNDE150..(6F,6FS)..SOL;ADE15#,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM); NDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-200904
FUJITSU,ID=W13830; FUJITSU,ID=W13830,RADIOLESS 6SPEAKER
main86120-02522iADE15#,NDE150,NRE150,ZRE15#..SOL; ADE15#,ZRE15#..SOL; ADE150,NDE150,NRE150,ZRE15#..SOL200905-201001
FUJITSU,ID=W13805; FUJITSU,ID=W13805,MAP NAVIGATION 6SPEAKER; FUJITSU,ID=W13805,RADIOLESS 6SPEAKER
main86120-02A70iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..SOL; ADE150,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..SOL; NDE150..E; ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL; ZRE151..6F..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL; ZRE151..SOL;ADE15#,ZRE152..LHD..SOL200912
PANASONIC,ID=W53838; PANASONIC,ID=W53838,AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&MAP NAVIGATION 6SPEAKER; PANASONIC,ID=W53838,CD BLUETOOTH 6SPEAKER(MULTI); PANASONIC,ID=W53838,DISPLAY AUDIO + NAVI 6SPEKAER(MULTI); PANASONIC,ID=W53838,DISPLAY AUDIO 6SPEAKER(MULTI); PANASONIC,ID=W53838,MAP NAVIGATION 6SPEAKER; PANASONIC,ID=W53838,RADIOLESS 6SPEAKER
FUJITSU,ID=W13804,CD RADIO 4SPEAKER; FUJITSU,ID=W13804,CD RADIO 6SPEAKER
FUJITSU,ID=W13804,CD RADIO 4SPEAKER; FUJITSU,ID=W13804,CD RADIO 6SPEAKER
main86120-02520iADE15#,NDE150,ZRE151,ZZE150..SOL; ADE15#,ZRE151..SOL; ADE150,NDE150,ZRE151,ZZE150..SOL; ADE150..RHD..5D; ZRE151,ZZE150..RHD..5D..SOL; ZZE150..LHD..5D..SOL; ZZE150..RHD..5D..SOL200702-200809
FUJITSU,ID=W13805; FUJITSU,ID=W13805,AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER; FUJITSU,ID=W13805,AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER; FUJITSU,ID=W13805,AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO (OVERSEAS MARKET)-TURN BY TURN NAVIGATION 6SPEAKER; FUJITSU,ID=W13805,AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER; FUJITSU,ID=W13805,AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER; FUJITSU,ID=W13805,AUDIO (OVERSEAS MARKET)-TURN BY TURN NAVIGATION 6SPEAKER; FUJITSU,ID=W13805,INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER; FUJITSU,ID=W13805,INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER; FUJITSU,ID=W13805,INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-TURN BY TURN NAVIGATION 6SPEAKER; FUJITSU,ID=W13805,INSTRUMENT PANEL CENTER CLUSTER-SILVER PAINT,W(VENT)&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER; FUJITSU,ID=W13805,SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER
FUJITSU,ID=W13806,AIR CONDITIONER-MANUAL&CD-CHANGER 6SPEAKER
FUJITSU,ID=W13807,AUDIO (OVERSEAS MARKET)-CD-CHANGER 6SPEAKER
FUJITSU,ID=W13807,AUDIO (OVERSEAS MARKET)-CD-CHANGER 6SPEAKER
FUJITSU,ID=W13807,AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&CD-CHANGER 6SPEAKER
main86120-02A50iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA; NDE150..6F..(E,TERRA);ADE150,NRE150,ZRE151..TERRA200912
FUJITSU TEN,ID=13838,CD 4SPEAKER(MULTI); FUJITSU TEN,ID=13838,CD 6SPEAKER(MULTI)
FUJITSU TEN,ID=13843,CD 6SPEAKER(MULTI)
PANASONIC,ID=W53848; PANASONIC,ID=W53848,DISPLAY AUDIO + NAVI 6SPEKAER(MULTI); PANASONIC,ID=W53848,DISPLAY AUDIO 6SPEAKER(MULTI); PANASONIC,ID=W53848,MAP NAVIGATION 6SPEAKER; PANASONIC,ID=W53848,RADIOLESS 6SPEAKER
86120AKNOB, RADIO RECEIVER SWITCH
main90011-25168×2iNDE150..(6F,6FS)..SOL;ADE15#,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM); NDE150..(6F,6FS)..SOL;ADE150,NRE150,ZRE15#..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-200905
RADIOLESS 6SPEAKER
main90011-25286×2iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..SOL; ADE150,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..SOL; NDE150..E; NRE150,ZRE151..SOL;NDE150..5D..SOL..DCRL;ADE15#,ZRE152..LHD..SOL;NDE150..LHD..3D..SOL..DCRL; ZRE151..(4FC,6F)..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL; ZRE151..6F..SOL;ZRE151..LHD..6FS..SOL;ADE15#,ZRE152..LHD..SOL200912-201210
AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&MAP NAVIGATION 6SPEAKER; CD BLUETOOTH 6SPEAKER(MULTI); DISPLAY AUDIO + NAVI 6SPEKAER(MULTI); DISPLAY AUDIO 6SPEAKER(MULTI); MAP NAVIGATION 6SPEAKER; RADIOLESS 6SPEAKER
AUDIO (OVERSEAS MARKET)-CD RADIO 4SPEAKER; AUDIO (OVERSEAS MARKET)-CD RADIO 6SPEAKER
main90011-23019×2iADE15#,NDE150,ZRE151,ZZE150..SOL; ADE15#,ZRE151..SOL; ADE150,NDE150,ZRE151,ZZE150..SOL; ADE150..RHD..5D; ZRE151,ZZE150..RHD..5D..SOL; ZZE150..LHD..5D..SOL; ZZE150..RHD..5D..SOL200702-200810
AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER; AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER; AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&AUDIO (OVERSEAS MARKET)-TURN BY TURN NAVIGATION 6SPEAKER; AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER; AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER; AUDIO (OVERSEAS MARKET)-TURN BY TURN NAVIGATION 6SPEAKER; INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-MAP NAVIGATION 6SPEAKER; INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER; INSTRUMENT PANEL CENTER CLUSTER-BLACK PAINT,W(TRAY)&AUDIO (OVERSEAS MARKET)-TURN BY TURN NAVIGATION 6SPEAKER; INSTRUMENT PANEL CENTER CLUSTER-SILVER PAINT,W(VENT)&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER; SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER
main90011-25180×2iADE150..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA; NDE150..6F..(E,TERRA);ADE150,NRE150,ZRE151..TERRA200912-201305
CD 4SPEAKER(MULTI); CD 6SPEAKER(MULTI)
86211BRACKET, RADIO, NO.1
main86211-02170iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912
86212BRACKET, RADIO, NO.2
main86212-02160iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912
90119W0030
main90119-W0030
90153W0001
main90153-W0001
6 parts on this diagram · 3 diagrams in section
