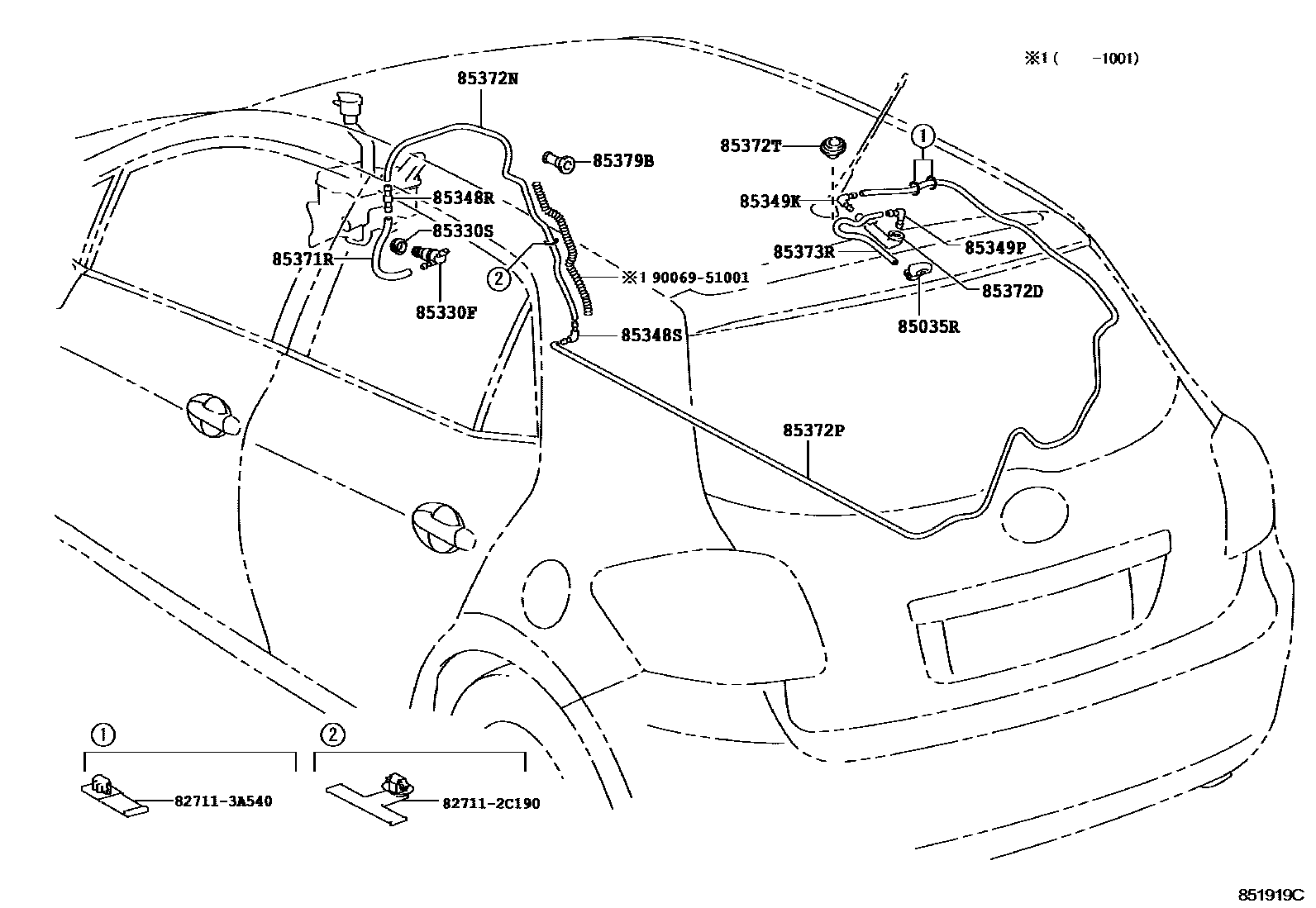

REAR WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
main90069-16009iNDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC; NDE150..LHD..(5F,5FS);ADE15#,ZRE151,ZZE150..LHD..(DCR,DCRL,HTWC)200702-200903
HEAD LAMP CLEANER-WITH
85372DGROMMET, REAR WASHER HOSE
main85373-0D021iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=3910
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=3910
85372TGROMMET, WASHER
main85373-0D010iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001
LIGHT; LIGHT&POWER DOOR LOCK-WITH(DRIVER SIDE DOOR & BACK DOOR)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=190)
85379BGROMMET, WASHER, A
827112C190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C190
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
9006951001
main90069-51001
17 parts on this diagram · 1 diagram in section
