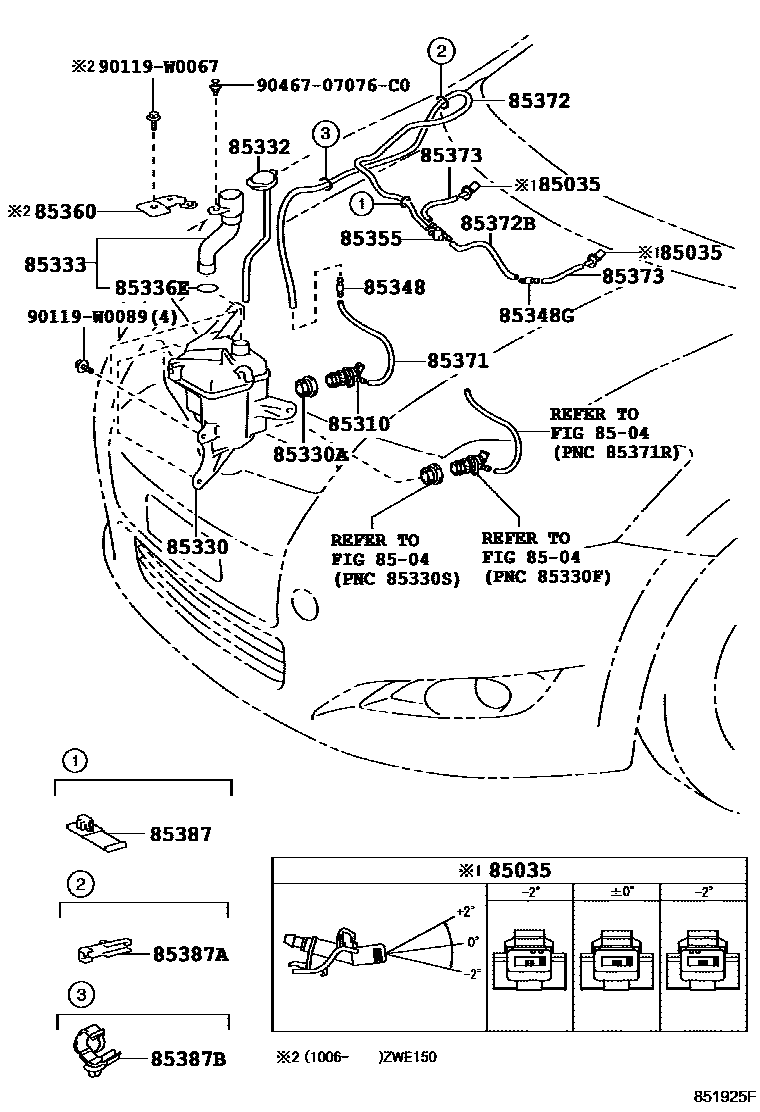

WINDSHIELD WASHER

0001 1W/O(HEADLAMP CLEANER) 0002 1W(HEADLAMP CLEANER) 0003 1W/O(HEADLAMP CLEANER) 0004 1W(HEADLAMP CLEANER) 0005 1W/O(HEADLAMP CLEANER) 0006 1W(HEADLAMP CLEANER)

85035NOZZLE SUB-ASSY, WASHER

main85381-12330×2iNDE150,ZRE151200702-200902

ANGLE 0

main85381-12340×2iADE15#200702-200903

ANGLE -2

main85381-12350×2iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912-201108

ANGLE +2

main85381-12370×2iADE15#,NDE150,NRE150,ZRE15#,ZWE150201108

ANGLE +2

main85381-12380×2iADE15#,NDE150,NRE150,ZRE15#,ZWE150201108

ANGLE 0

main85381-12390×2iADE15#,NDE150,NRE150,ZRE15#,ZWE150201108

ANGLE -2

main85381-30110×2iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912-201108

ANGLE -2

main85381-30150×2iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912-201108

ANGLE 0

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02030iNDE150,ZRE151200702-200902

85330JAR ASSY, WINDSHIELD WASHER

main85315-02230iZZE150200702-200811

main85355-02060iNDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-200912

HEAD LAMP CLEANER-WITH

main85355-02150iZWE150..LHD; ZWE150..RHD..G201006

HEAD LAMP CLEANER-WITH; HEADLAMP-DISCHARGE&HEAD LAMP CLEANER-WITH

85330ABUSH, WINDSHIELD WASHER JAR

main90069-20005iZZE150200702-200811

85332CAP, WINDSHIELD WASHER JAR

main85356-02060iZZE150200702-200811

main85356-02450iZWE150201006

85333FILTER, WINDSHIELD WASHER JAR

main85359-02060iZZE150200702-200811

main85359-02450iZWE150201006

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main90069-38005iNDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC200702-200903

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-05050iZZE150200702-200811

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02240iZZE150200702-200811

85360BRACKET ASSY, WINDSHIELD WASHER

main85360-02020iZWE150201006

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-16009iZZE150; ZZE150..LHD200702-200811

HEAD LAMP CLEANER-WITH

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-16010iZZE150200702-200811

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-16009iZZE150200702-200811

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iZZE150200702-200811

L=1450(*H,L=125)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E020iZZE150200702-200811

85387ACLAMP, WASHER, NO.2

main85387-02240iZZE150200702-200811

85387BCLAMP, WASHER, NO.3

main82711-1E350iZZE150200702-200811

90119W0067

main90119-W0067

90119W0089

main90119-W0089

9046707076C0

main90467-07076C0
