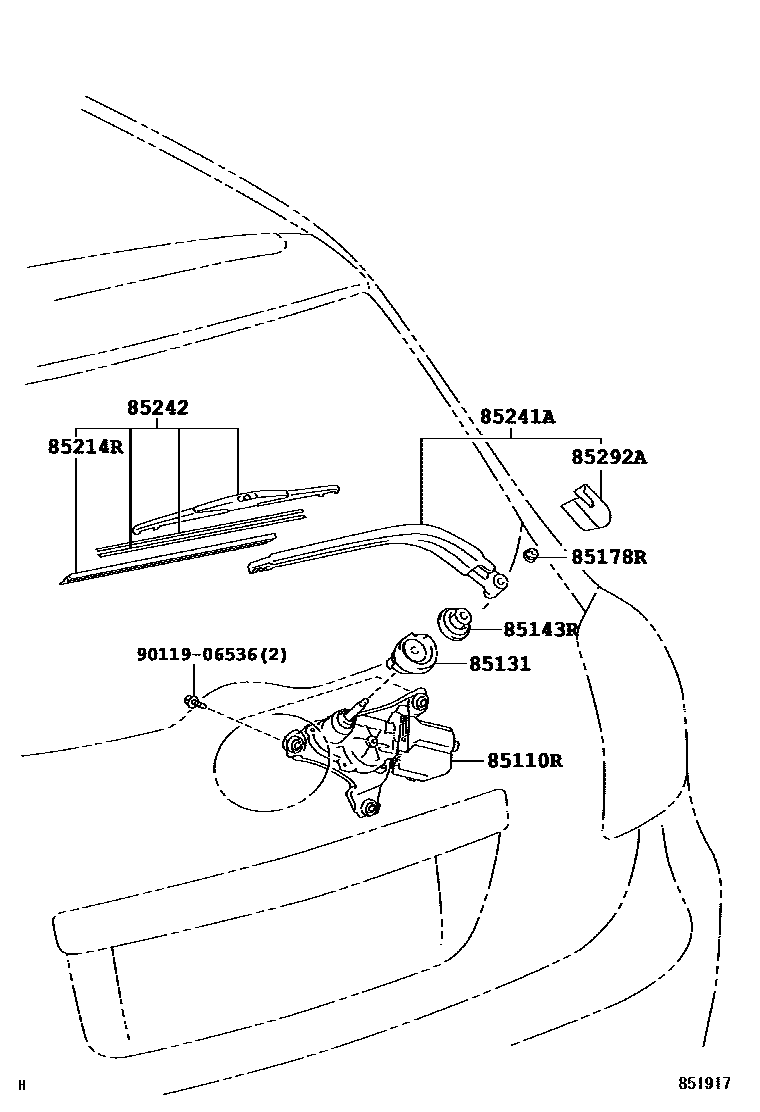

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-02030iZZE150200702-201001

85131COVER, REAR WIPER MOTOR

main85131-02030

85143RGROMMET, REAR WIPER MOTOR

main85143-02030iZZE150200702-201001

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iZZE150200702-201001

85214RRUBBER, REAR WIPER

main85214-05110iZZE150200702-201001

85241AARM, REAR WIPER

main85241-02040iZZE150200702-201001

85242BLADE, RR WIPER

main85242-02040iZZE150200702-201001

85292ACAP, REAR WIPER ARM HEAD

main85292-02050iZZE150200702-201001

9011906536

main90119-06536

9 parts on this diagram · 1 diagram in section
