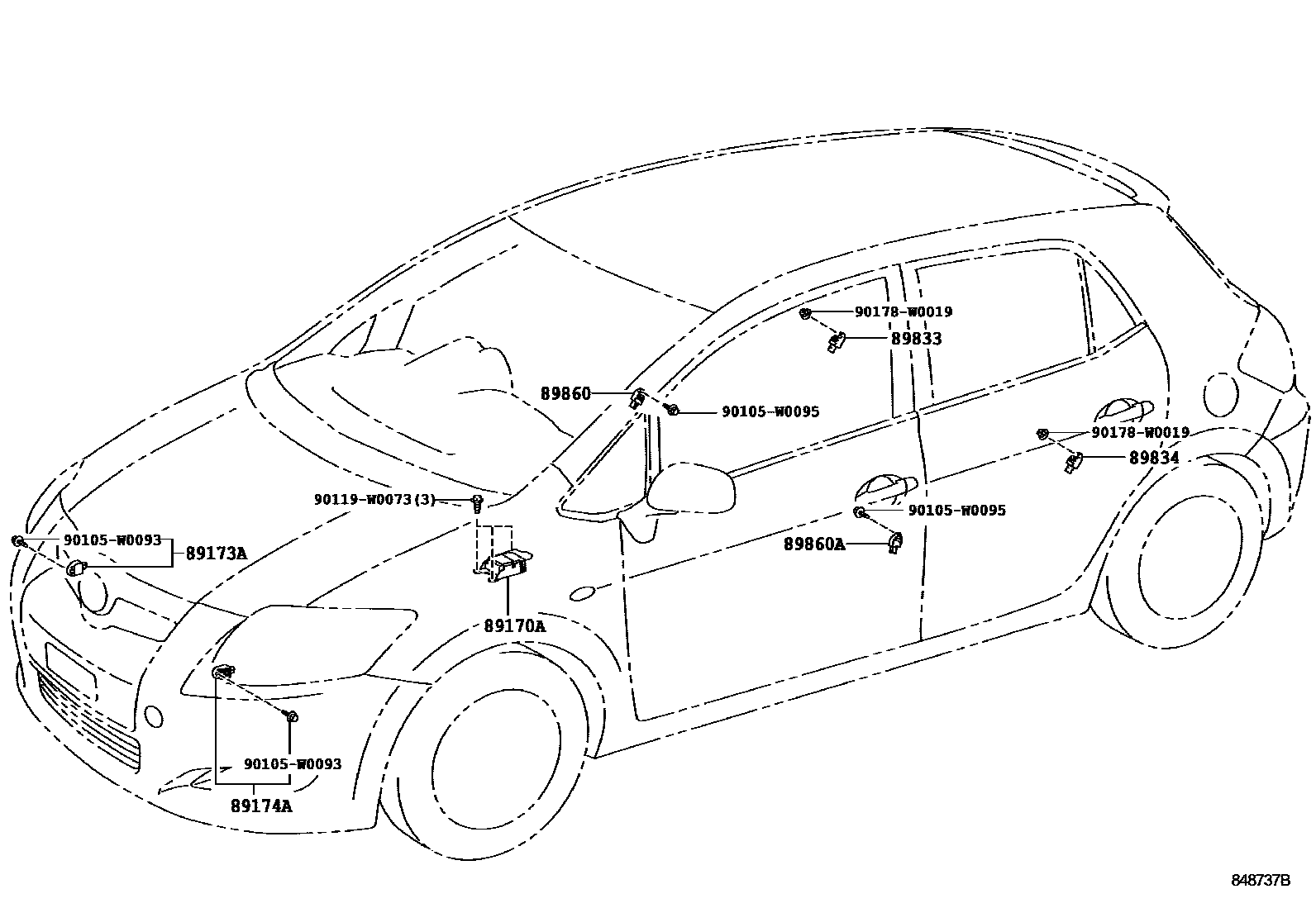

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-12730iZWE150..RHD201006-201109

main89170-12740iZWE150..LHD201006-201109

main89170-12A60iZWE150..RHD201109-201210

main89170-12A70iZWE150..LHD201109-201210

main89170-02110supersedes 89170-02120iNDE150,ZRE151..RHD..5D200702-200902

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main89170-02130supersedes 89170-02540iNDE150,ZRE151..RHD..3D200702-200902

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main89170-02560supersedes 89170-02570iNDE150,ZRE151..LHD..5D200702-200902

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main89170-02580supersedes 89170-02590iZZE150..LHD..3D200702-200811

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main89170-02880supersedes 89170-02B50iNDE150,NRE150,ZRE151..RHD..3D201001-201210

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main89170-02890supersedes 89170-02B40iADE15#,NDE150,NRE150,ZRE15#..LHD..3D201001-201210

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main89170-0W290supersedes 89170-02870iNDE150,NRE150,ZRE151..RHD..5D200912-201210

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main89170-0W330supersedes 89170-02A00iNDE150..LHD..5D..(E,SOL);NDE150..LHD..5D..6F..TERRA;ADE15#,NRE150,ZRE15#..LHD..5D200912-201305

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

89173ASENSOR, AIRBAG, FRONT RH

main89173-09420iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

main89173-09630iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201305

main89173-49465iZWE150201109-201210

main89173-79025iZWE150201006-201109

89174ASENSOR, AIRBAG, FRONT LH

main89173-09420iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

main89173-09630iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201305

main89173-49465iZWE150201109-201210

main89173-79025iZWE150201006-201109

89833SENSOR, AIRBAG, REAR RH

main89831-12020iZWE150201109-201210

main89831-75020iZWE150201006-201109

main89831-02080iNDE150,ZRE151200702-200902

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main89831-0W060iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201305

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

89834SENSOR, AIRBAG, REAR LH

main89831-12020iZWE150201109-201210

main89831-75020iZWE150201006-201109

main89831-02080iADE15#200702-200903

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

main89831-0W060iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201305

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-02060iZZE150; ZZE150..RHD..5D..TERRA200702-200811

SRS AIR BAG-WITH(DRIVER&PASSENGER)

main89831-02100iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201305

main89831-28020iZWE150201109-201210

main89831-75010iZWE150201006-201109

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-02060iZZE150; ZZE150..RHD..5D..TERRA200702-200811

SRS AIR BAG-WITH(DRIVER&PASSENGER)

main89831-02100iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201305

main89831-28020iZWE150201109-201210

main89831-75010iZWE150201006-201109

90105W0093

main90105-W0093

90105W0095

main90105-W0095

90119W0073

main90119-W0073

90178W0019

main90178-W0019

11 parts on this diagram · 1 diagram in section
