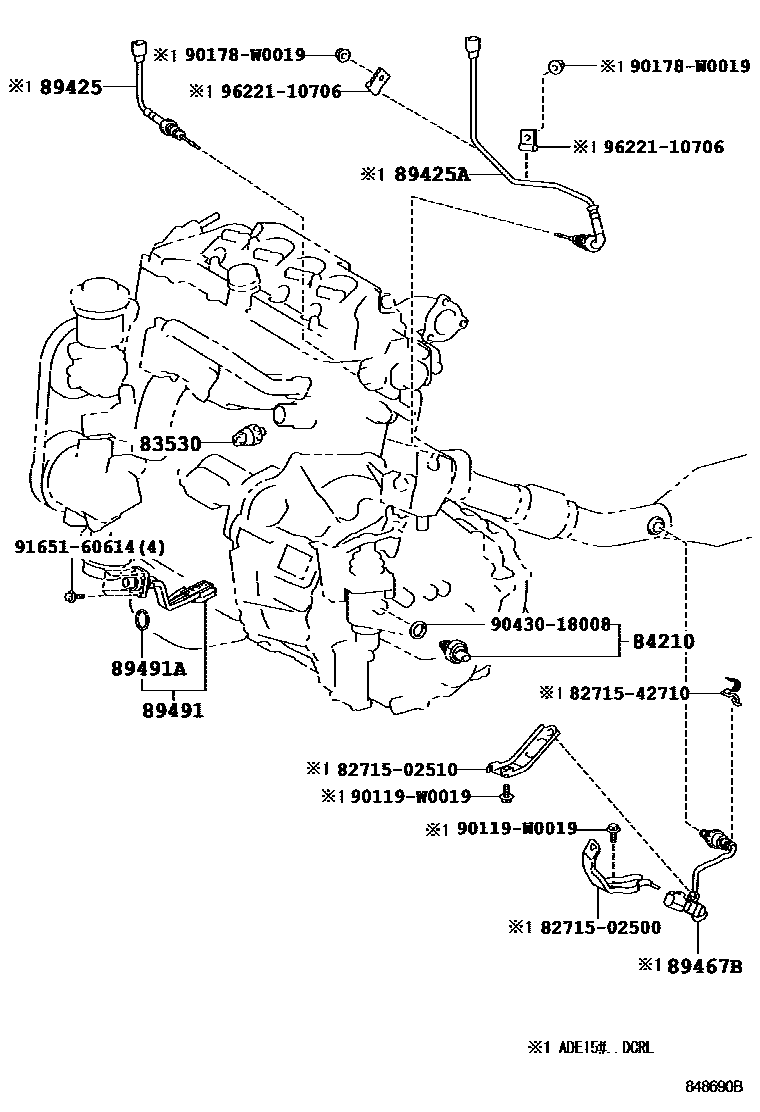

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iNRE150,ZRE15#..4FC,6F,6FS200702-201001

VALEO

main83530-28010iNDE150;ADE15#..DCRL200702-201001

DENSO

main83530-28020iNRE150,ZRE15#..4FC,6F,6FS200702-201001

DENSO

main83530-60010iADE15#;NDE150..5F,5FS200702-201001

YAZAKI

main83530-60020iZRE151,ZZE150200702-201001

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iADE15#..LHD200702-201206

main84210-52010iNDE150,ZRE151,ZZE150..5F200702-200902

main84210-52050iNDE150,NRE150,ZRE15#..MTM201205-201305

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-20360iADE15#..DCRL200702-200903

main89425-20380iADE15#200903-201210

main89425-52010iNDE150..DCRL200902-200911

main89425-52011iNDE150..DCRL200911-201210

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-20370iADE15#..DCRL200702-200903

main89425-20390iADE15#200903-201210

main89425-52020iNDE150..DCRL200902-200911

main89425-52021iNDE150..DCRL200911-201210

89467BSENSOR, AIR FUEL RATIO

main89467-02080iNDE150201107-201210

(L)

main89467-0D020iNDE150201008-201106

(L)

main89467-12020iADE15#..DCRL200702-200903

main89467-12130iNDE150201107-201210

(J)

main89467-12170iNDE150201008-201106

(J)

main89467-12170iNDE150..E,SOL;NDE150..6F..TERRA200902-201008

main89467-20100iADE15#200903-201210

main89467-28090iZWE150201006-201210

main89467-52070iNRE150200811-201101

main89467-52090iNRE150201102-201305

89491SENSOR, ENGINE OIL LEVEL

main89491-12030iNDE150200702-200902

main89491-20110iADE157200702-200903

main89491-20120iADE150200702-201210

main89491-20130iADE157200903-201204

main89491-20131iADE157201204-201210

main89491-52030iNDE150..SOL..DCR;NDE150..6F..TERRA..DCR200912-201112

*132

main89491-52030iNDE150..DCR200902-201001

main89491-52030iNDE150..DCR201008-201202

*251

main89491-52031iNDE150..DCR201112-201210

*132

main89491-52031iNDE150..DCR201202-201210

*251

main89491-52040iNDE150..DCRL200902-201007

main89491-52050iNDE150..DCRL201007-201112

*132

main89491-52050iNDE150..DCRL201011-201202

*251

main89491-52051iNDE150..DCRL201112-201210

*132

main89491-52051iNDE150..DCRL201202-201210

*251

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iNDE150200702-200903

main90430-36005iNDE150..RHD..DCRL;NDE150..LHD..(E,SOL)..DCRL;NDE150..LHD..6F..TERRA..DCRL200902-201007

main90430-36005iNDE150..SOL..DCR;NDE150..6F..TERRA..DCR200912

*132

main90430-36005iNDE150..DCR201008

*251

8271502500BRACKET,WIRING HARNESS CLAMP

main82715-02500

8271502510BRACKET,WIRING HARNESS CLAMP

main82715-02510

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

90119W0019

main90119-W0019

90178W0019

main90178-W0019

9043018008

main90430-18008

9165160614

main91651-60614

9622110706

main96221-10706

15 parts on this diagram · 24 diagrams in section
